C-TER-B Straight Shank Rigid Tension-Comp Tapping Holder

Tapping chuck/holder M2-M12 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 12 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: C20-TER16-B-80 Category: Tags: , , , ,

Description

The C-TER-B Straight Shank Rigid Tension-Comp Tapping Holder is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M2-M12 with 12 catalogue models.

Features

  • Rigid function ensures machining center spindle rotate in
  • Can be replaced by ER collet for gripping cutting tool, Drill
  • Don’t lock excessively of the clamping nut in case of damage,

Model Naming

Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

Specification

Model Spec Dimensions (mm)

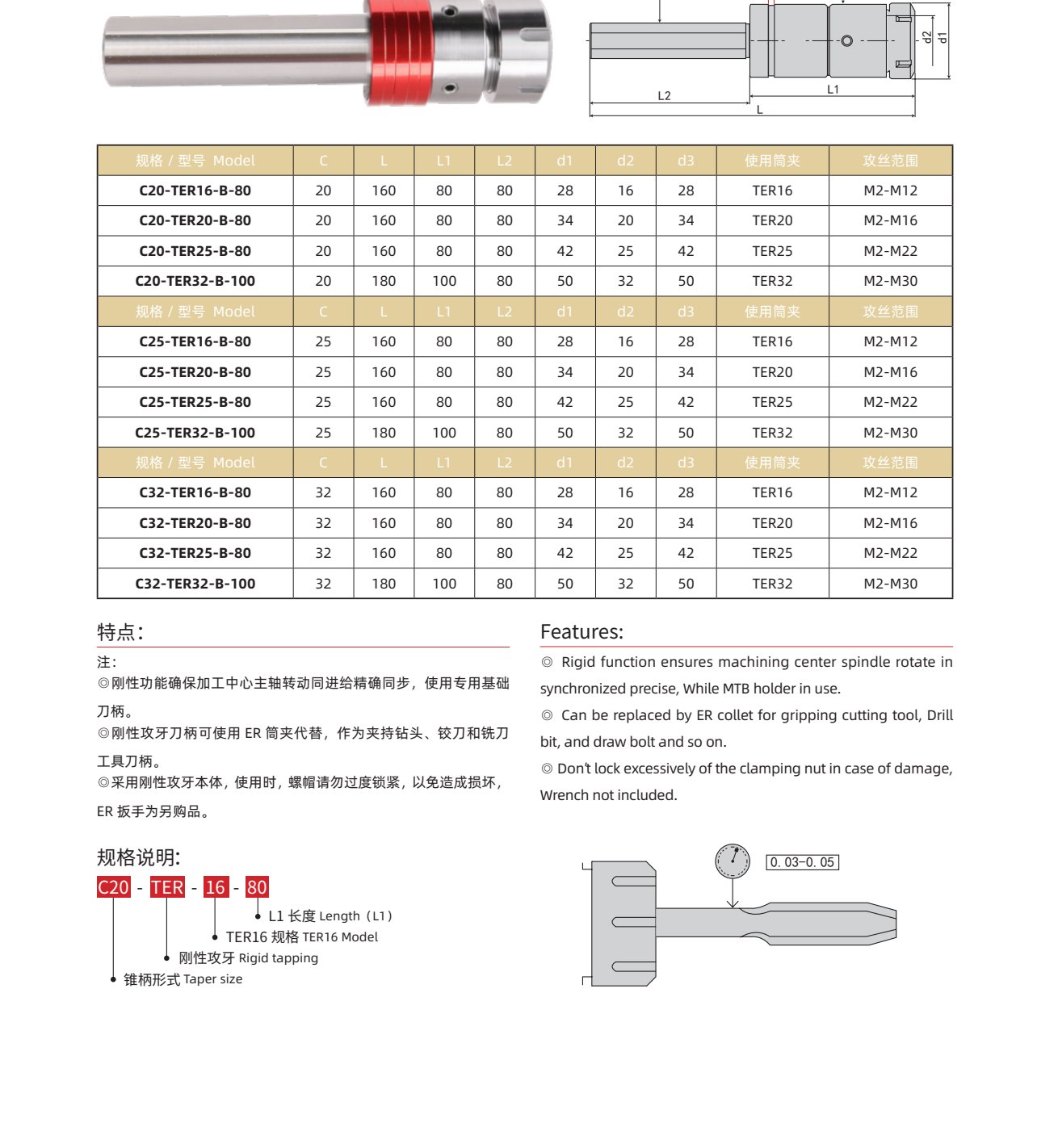

C20-TER16-B-80 20 160 80 80 28 16 28 TER16 M2-M12
C20-TER20-B-80 20 160 80 80 34 20 34 TER20 M2-M16
C20-TER25-B-80 20 160 80 80 42 25 42 TER25 M2-M22
C20-TER32-B-100 20 180 100 80 50 32 50 TER32 M2-M30
C25-TER16-B-80 25 160 80 80 28 16 28 TER16 M2-M12
C25-TER20-B-80 25 160 80 80 34 20 34 TER20 M2-M16
C25-TER25-B-80 25 160 80 80 42 25 42 TER25 M2-M22
C25-TER32-B-100 25 180 100 80 50 32 50 TER32 M2-M30
C32-TER16-B-80 32 160 80 80 28 16 28 TER16 M2-M12
C32-TER20-B-80 32 160 80 80 34 20 34 TER20 M2-M16
C32-TER25-B-80 32 160 80 80 42 25 42 TER25 M2-M22
C32-TER32-B-100 32 180 100 80 50 32 50 TER32 M2-M30

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

Additional information

Interface / Taper

C20, C25, C32
Tapping Range

M2-M12
