Description
The Collet Chuck (CX)（CX 筒夹）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

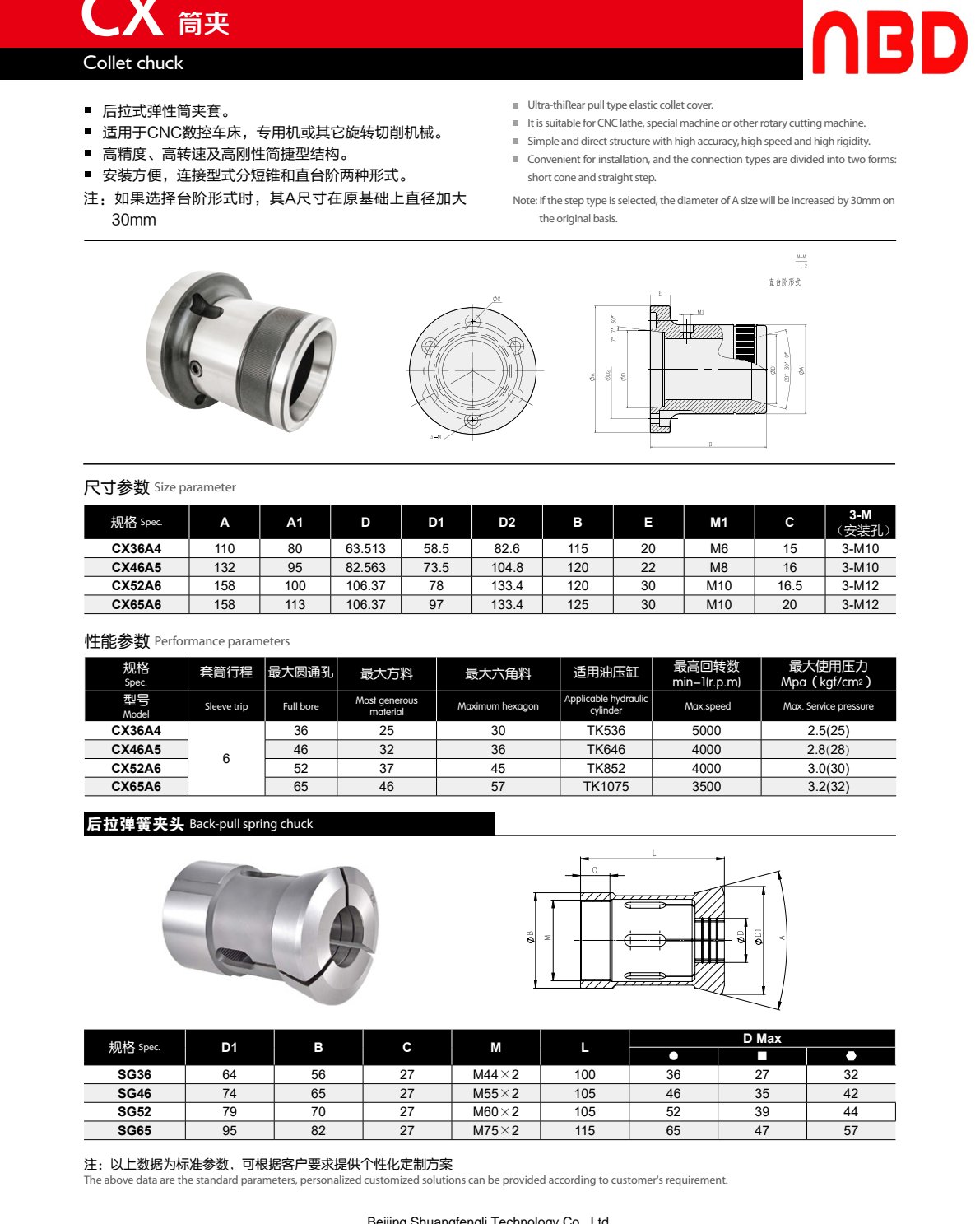

Ultra-thiRear pull type elastic collet cover. It is suitable for CNC lathe, special machine or other rotary cutting machine. Simple and direct structure with high accuracy, high speed and high rigidity. Convenient for installation, and the connection types are divided into two forms: short cone and straight step. Note: if the step type is selected, the diameter of A size will be increased by 30mm on
| Spec. 套筒行程 最大圆通孔 最大方料 最大六角料 适用油压缸 最高回转数 |
|---|
| 6 |
| CX46A5 46 32 36 TK646 4000 2.8(28) |
| CX52A6 52 37 45 TK852 4000 3.0(30) |
| CX65A6 65 46 57 TK1075 3500 3.2(32) |
| 51 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
