Double station tool holder — 双工位刀座
Double station tool holder（双工位刀座）— NBD 车床刀座 series. 20 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Double station tool holder（双工位刀座）is part of NBD’s 车床刀座 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Four-station extension tool holder Double-station tool holder Four-station extension tool holder Double-station tool holder
Specification
| 型号 | A | B | C | D | |
| 型号 | H1 | Φd | L | H | L |
| FE202585 | 35 | 20 | 85 | 25 | |
| FE253085 | 45 | 25 | 85 | 30 | |
| FE3240100 | 62 | 32 | 100 | 40 | |
| FE3240150 | 62 | 32 | 100 | 40 | |
| DT2020 | 20 | 20 | 50 | 40 | 150 |
| DT2025 | 20 | 25 | 55 | 45 | 171 |
| DT2520 | 25 | 20 | 55 | 45 | 171 |
| DT2525 | 25 | 25 | 55 | 45 | 171 |
| 型号 | A | B | C | D | |
| 型号 | H1 | Φd | L | H | L |
| FE202585 | 35 | 20 | 85 | 25 | |
| FE253085 | 45 | 25 | 85 | 30 | |
| FE3240100 | 62 | 32 | 100 | 40 | |
| FE3240150 | 62 | 32 | 100 | 40 | |
| DT2020 | 20 | 20 | 50 | 40 | 150 |
| DT2025 | 20 | 25 | 55 | 45 | 171 |
| DT2520 | 25 | 20 | 55 | 45 | 171 |
| DT2525 | 25 | 25 | 55 | 45 | 171 |

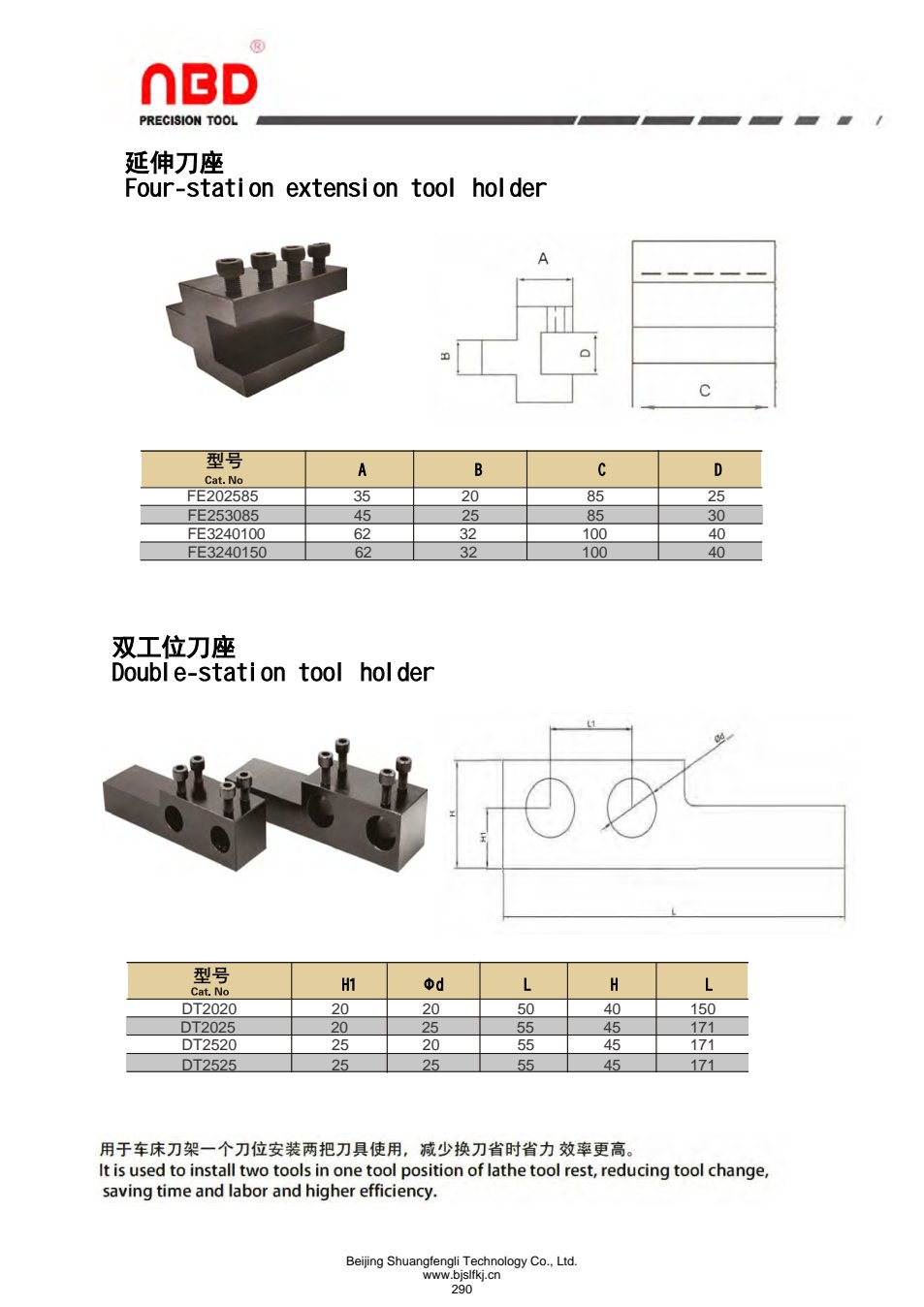

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | FE202585 |
|---|
