Edge — finder寻边器
Edge（finder寻边器）— NBD 筒夹附件 series. 16 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Edge（finder寻边器）is part of NBD’s 筒夹附件 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Specification
| 型号 | 柄径 | 长度 | 测头 |
| 型号 | 柄径 | 长度 | 测头 |
| 型号 | 柄径 | 长度 | 测头 |
| D28-20-105L | 10 | 105 | 28 |
| D22-20-105L | 10 | 105 | 22 |
| D20-20-105L | 10 | 105 | 20 |
| D17-20-105L | 10 | 105 | 17 |
| D30-20-105L | 10 | 105 | 30 |
| 型号 | 柄径 | 长度 | 测头 |
| 型号 | 柄径 | 长度 | 测头 |
| 型号 | 柄径 | 长度 | 测头 |
| D28-20-105L | 10 | 105 | 28 |
| D22-20-105L | 10 | 105 | 22 |
| D20-20-105L | 10 | 105 | 20 |
| D17-20-105L | 10 | 105 | 17 |
| D30-20-105L | 10 | 105 | 30 |

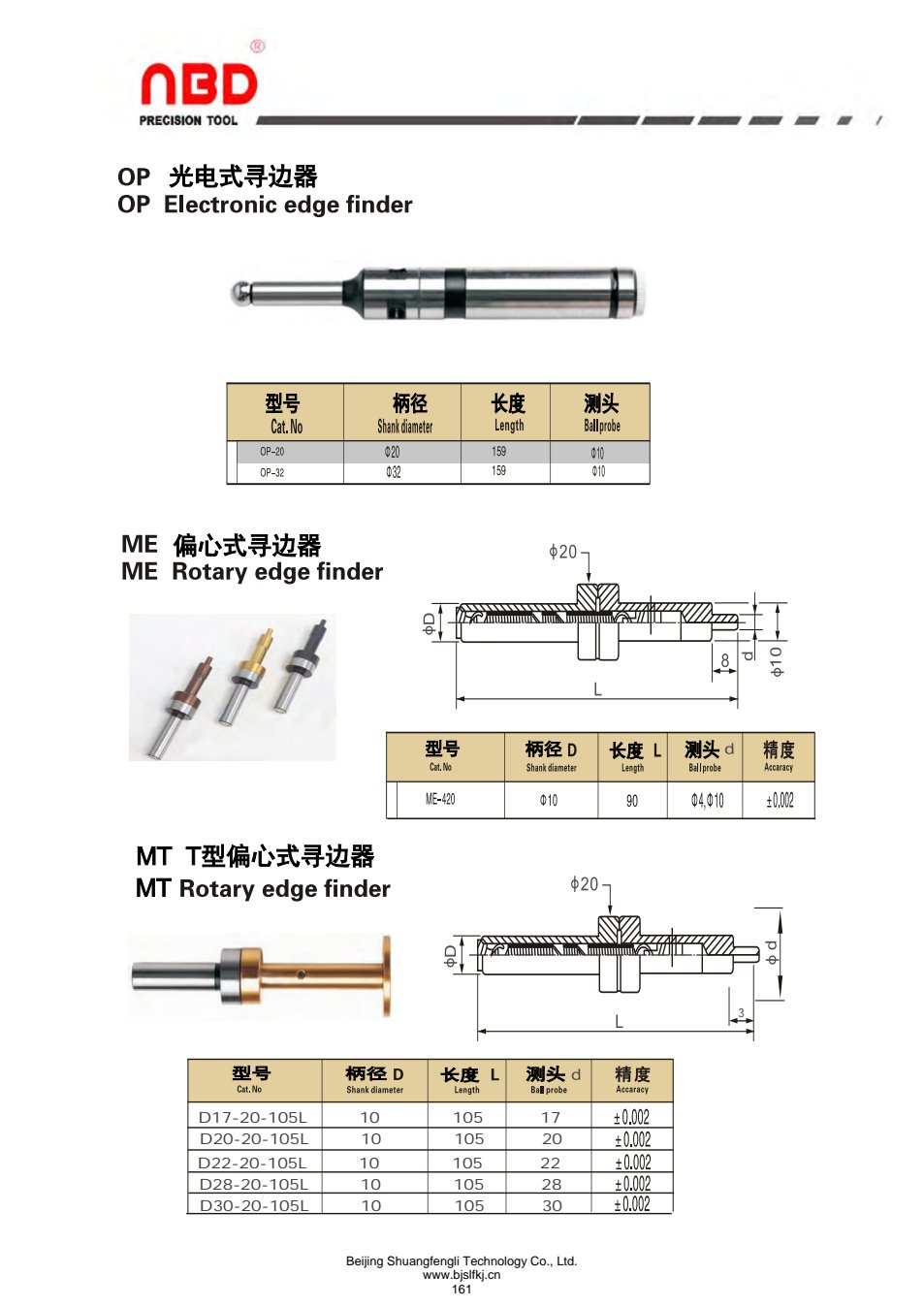

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | D28 |
|---|
