European style Quick change tool — posts欧式快换刀架
European style Quick change tool（posts欧式快换刀架）— NBD 虎钳装夹 series. 20 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The European style Quick change tool（posts欧式快换刀架）is part of NBD’s 虎钳装夹 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

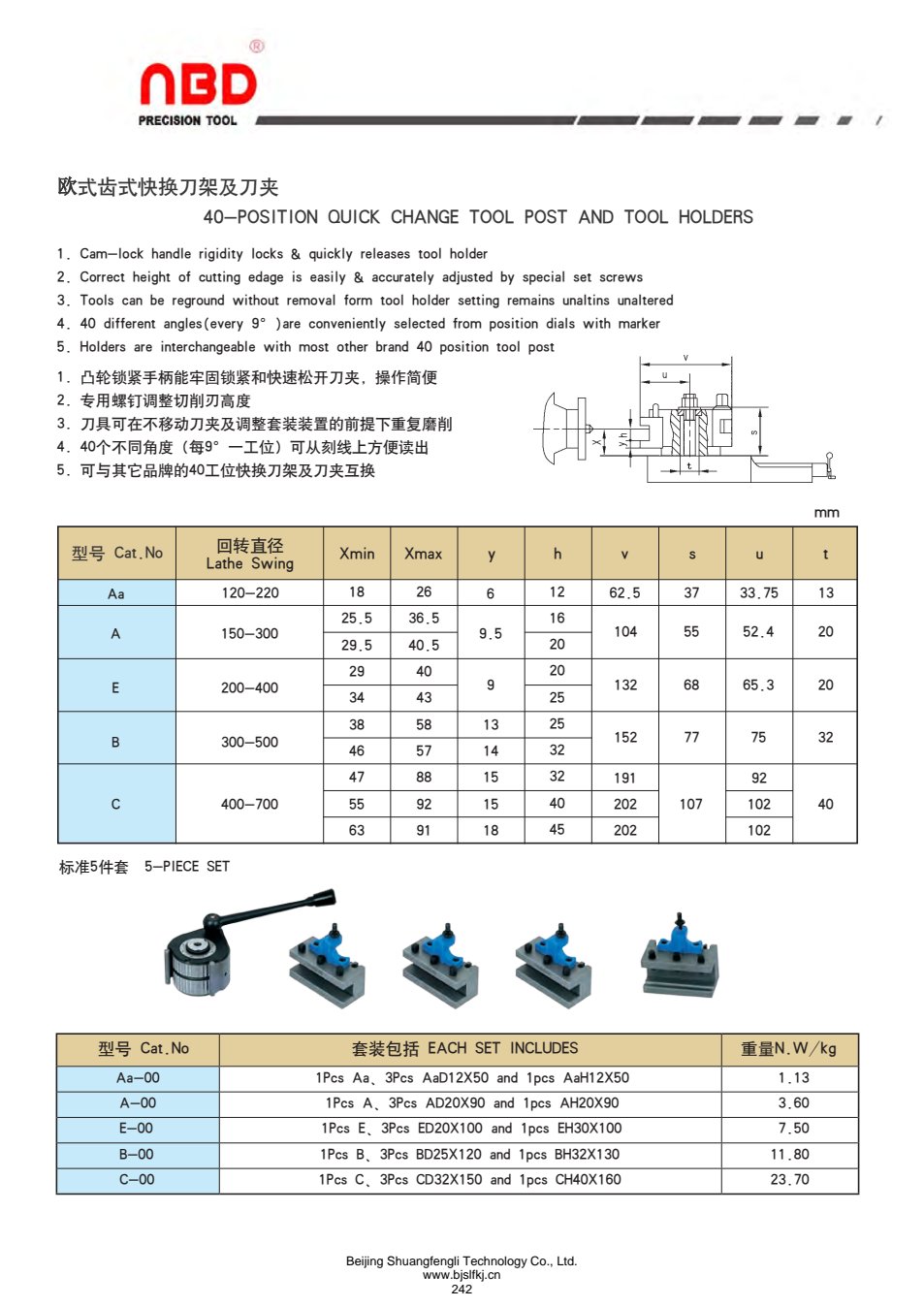

40-POSITION QUICK CHANGE TOOL POST AND TOOL HOLDERS Lathe Swing Xmin Xmax y h v s u t
Specification
| Aa | 120-220 | 33.75 | |||||
| 型号 | Cat.No | 套装包括 | EACH | SET | INCLUDES | 重量N.W/kg | |
| Aa-00 | 1Pcs | Aa、3Pcs | AaD12X50 | and | 1pcs | AaH12X50 | 1.13 |
| A-00 | 1Pcs | A、3Pcs | AD20X90 | and | 1pcs | AH20X90 | 3.60 |
| E-00 | 1Pcs | E、3Pcs | ED20X100 | and | 1pcs | EH30X100 | 7.50 |
| B-00 | 1Pcs | B、3Pcs | BD25X120 | and | 1pcs | BH32X130 | 11.80 |
| C-00 | 1Pcs | C、3Pcs | CD32X150 | and | 1pcs | CH40X160 | 23.70 |
| 型号 | Cat.No | ||||||
| 型号 | Cat.No | d | MS.NO. | 适用刀架型号Type | of | tool | post |
| AL-1-30 | 30 | MS1 | A、E | ||||
| AL-2-30 | 30 | MS2 | A、E | ||||
| BL-1-40 | 40 | MS1 | B | ||||
| BL-2-40 | 40 | MS2 | B | ||||
| BL-3-40 | 40 | MS3 | B、C、E | ||||
| BL-4-40 | 40 | MS4 | B、C、E | ||||
| CL-3-50 | 50 | MS3 | C | ||||
| CL-4-50 | 50 | MS4 | C | ||||
| CL-5-50 | 50 | MS5 | C | ||||
| 型号 | Cat.No | ||||||
| 型号 | Cat.No | 型号 | Cat.No |
All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | AD20X90 |
|---|
