Front-Mounted Pneumatic Chuck II (KQ) — KQ 前置式气动卡盘（二）
KQ 前置式气动卡盘（二）（Front-Mounted Pneumatic Chuck II (KQ)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description

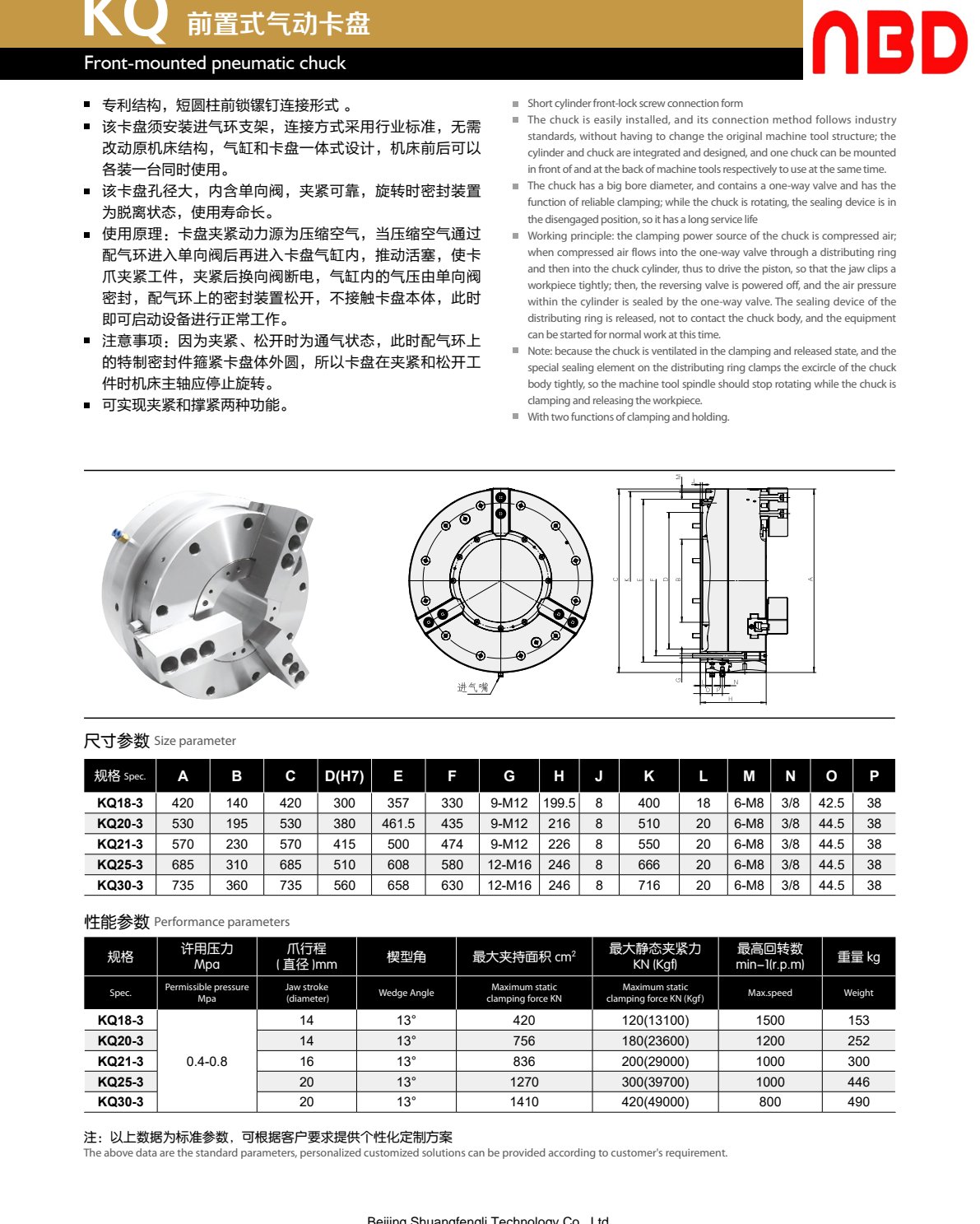

The Front-Mounted Pneumatic Chuck II (KQ)（KQ 前置式气动卡盘（二））is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
Short cylinder front-lock screw connection form The chuck is easily installed, and its connection method follows industry standards, without having to change the original machine tool structure; the cylinder and chuck are integrated and designed, and one chuck can be mounted in front of and at the back of machine tools respectively to use at the same time. The chuck has a big bore diameter, and contains a one-way valve and has the
| 规格 许用压力 |
|---|
| (diameter) Wedge Angle Maximum static |
| 0.4-0.8 |
| KQ20-3 14 13° 756 180(23600) 1200 252 |
| KQ21-3 16 13° 836 200(29000) 1000 300 |
| KQ25-3 20 13° 1270 300(39700) 1000 446 |
| KQ30-3 20 13° 1410 420(49000) 800 490 |
| 16 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
