Half Through-Hole Pneumatic Chuck — 半通孔气动卡盘
半通孔气动卡盘（Half Through-Hole Pneumatic Chuck）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Half Through-Hole Pneumatic Chuck（半通孔气动卡盘）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

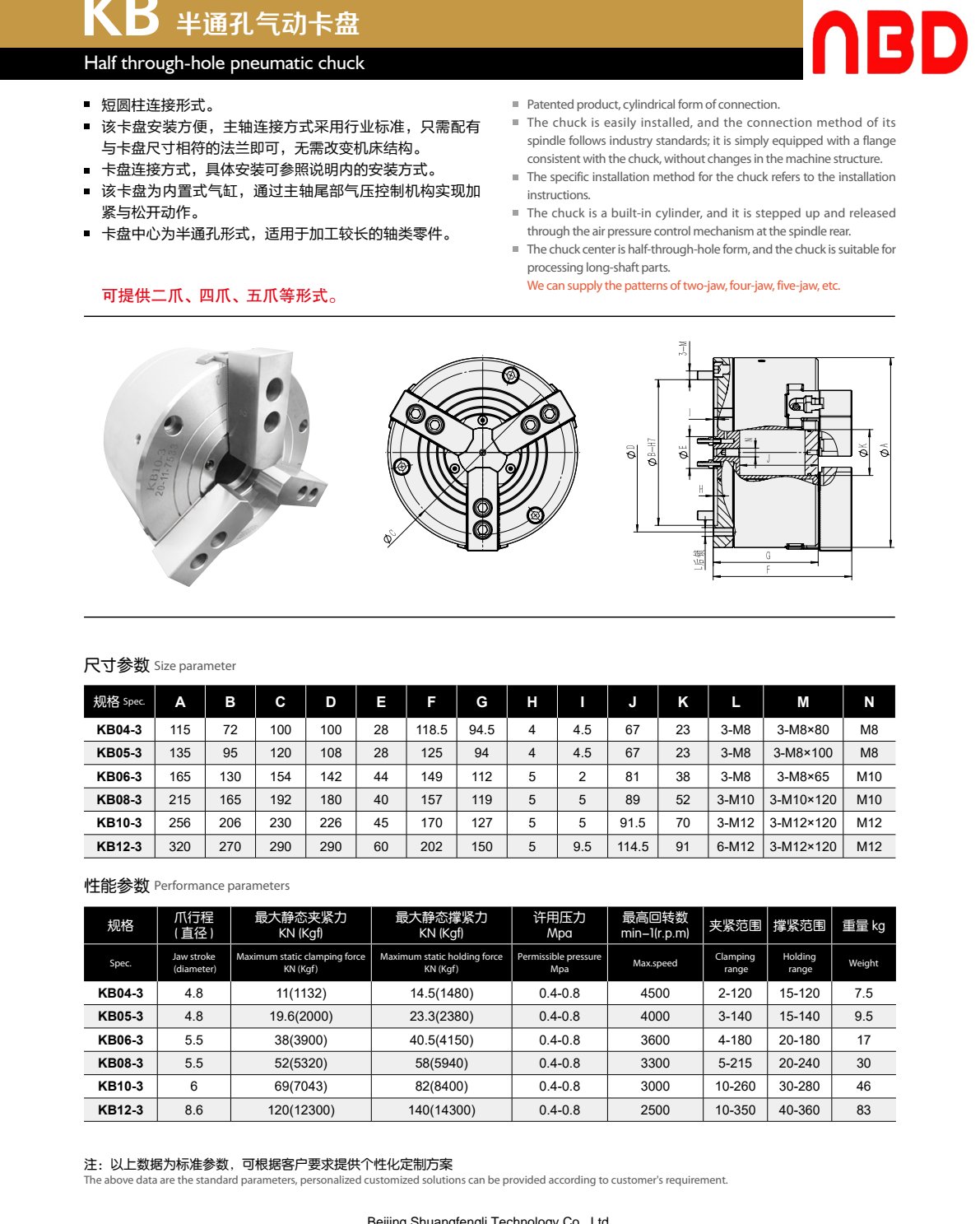

Patented product, cylindrical form of connection. The chuck is easily installed, and the connection method of its spindle follows industry standards; it is simply equipped with a flange consistent with the chuck, without changes in the machine structure. The specific installation method for the chuck refers to the installation The chuck is a built-in cylinder, and it is stepped up and released
| 规格 爪行程 |
|---|
| ( 直径 ) |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
