HSK-A Slim From C — 薄壁C型

HSK-A Slim From C（薄壁C型）— NBD 铣削刀具刀柄 series. 50 spec rows in catalogue. Factory-direct, custom sizes on request.

SKU: HSK40A-SFA3-65-M22 Category: Tags: , , , , , , , , , ,

Description

The HSK-A Slim From C（薄壁C型）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

Specification

HSK-A Shrink chuck 3°slim form C
HSK40A-SFA3-65-M22 3 6 65 22 23 8.3 25 9 44
HSK40A-SFA3-85-M42 3 6 85 42 23 10.4 25 9 64
HSK40A-SFA3-100-M42 3 6 100 42 38 10.4 25 9 78
HSK40A-SFA4-65-M22 4 7 65 22 23 9.3 25 12 44
HSK40A-SFA4-85-M42 4 7 85 42 23 11.4 25 12 64
HSK40A-SFA4-100-M42 4 7 100 42 38 11.4 25 12 78
HSK40A-SFA6-65-M22 6 9 65 22 23 11.3 25 18 36
HSK40A-SFA6-85-M42 6 9 85 42 23 13.4 25 18 36
HSK40A-SFA6-100-M42 6 9 100 42 38 13.4 25 18 36
HSK40A-SFA8-65-M22 8 11 65 22 23 13.3 25 24 44
HSK40A-SFA8-85-M42 8 11 85 42 23 15.4 25 24 48
HSK40A-SFA8-100-M42 8 11 100 42 38 15.4 25 24 48
HSK40A-SFA10-65-M22 10 13 65 22 23 15.3 25 30 44
HSK40A-SFA10-85-M42 10 13 85 42 23 17.4 25 30 60
HSK40A-SFA10-100-M42 10 13 100 42 38 17.4 25 30 60
HSK40A-SFA12-65-M22 12 15 65 22 23 17.3 25 30 44
HSK40A-SFA12-90-M42 12 15 90 42 28 19.4 32 30 68
HSK50A-SFA3-95-M42 3 6 95 42 27 10.4 25 9 69
HSK50A-SFA3-125-M42 3 6 125 42 57 10.4 25 9 100
HSK50A-SFA4-95-M42 4 7 95 42 27 11.4 26 12 69
HSK50A-SFA4-125-M42 4 7 125 42 57 11.4 25 12 100
HSK50A-SFA6-95-M42 6 9 95 42 27 13.4 26 18 69
HSK50A-SFA6-125-M42 6 9 125 42 57 13.4 25 18 100
HSK50A-SFA8-95-M42 8 11 95 42 27 15.4 25 24 48
HSK50A-SFA8-125-M42 8 11 125 42 57 15.4 25 24 48
HSK50A-SFA10-95-M42 10 13 95 42 27 17.4 25 30 60
HSK50A-SFA10-125-M42 10 13 125 42 57 17.4 25 30 60
Model D C L M L1 C1 C2 H h
HSK63A-SFA4-95-M42 4 7 95 42 27 11.4 25 12 70
HSK63A-SFA4-120-M67 4 7 120 67 27 14 25 12 95
HSK63A-SFA4-125-M42 4 7 125 42 57 11.4 25 12 100
HSK63A-SFA4-150-M67 4 7 150 67 57 14 25 12 125
HSK63A-SFA4-150-M97 4 7 150 97 27 17.2 25 12 125
HSK63A-SFA4-180-M97 4 7 180 97 57 17.2 26 12 155
HSK63A-SFA6-95-M42 6 9 95 42 27 13.4 25 18 70
HSK63A-SFA6-120-M67 6 9 120 67 27 16 25 18 95
HSK63A-SFA6-125-M42 6 9 125 42 57 13.4 25 18 100
HSK63A-SFA6-150-M67 6 9 150 67 57 16 26 18 125
HSK63A-SFA6-150-M97 6 9 150 97 27 19.2 32 18 125
HSK63A-SFA6-180-M97 6 9 180 97 57 19.2 36 18 155
HSK63A-SFA8-95-M42 8 11 95 42 27 15.4 36 24 70
HSK63A-SFA8-120-M67 8 11 120 67 27 18 36 24 95
HSK63A-SFA8-125-M42 8 11 125 42 57 15.4 36 24 100
HSK63A-SFA8-150-M67 8 11 150 67 57 18 36 24 125
HSK63A-SFA8-150-M97 8 11 150 97 27 21.2 36 24 125
HSK63A-SFA8-180-M97 8 11 180 97 57 21.2 36 24 155
Model D C L M L1 C1 C2 H h
HSK63A-SFA10-95-M42 10 13 95 42 27 17.4 36 30 60
HSK63A-SFA10-120-M67 10 13 120 67 27 20 36 30 60

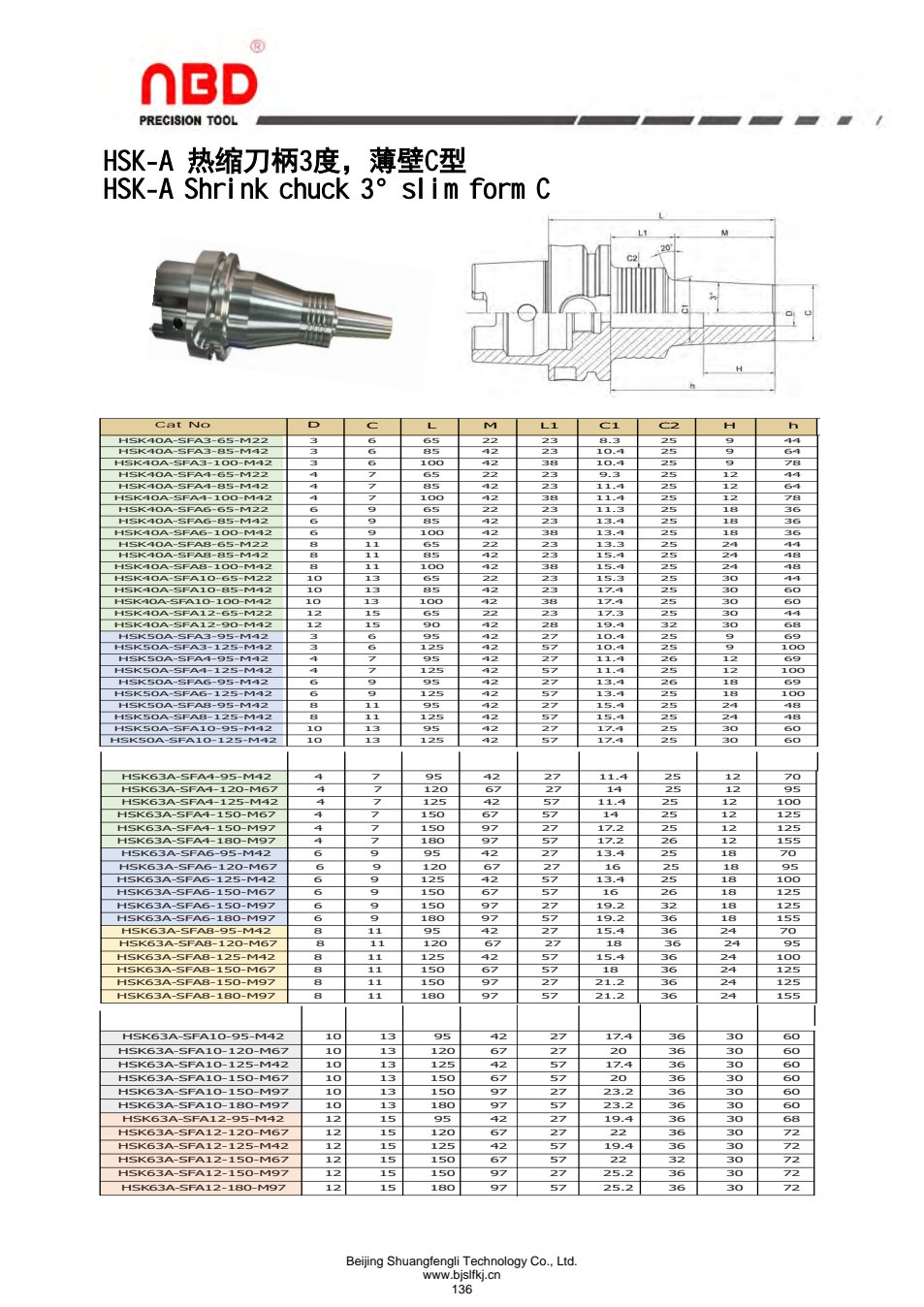

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.

NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
