HSK63A — HSK63A
HSK63A（HSK63A）— NBD 铣削刀具刀柄 series. 36 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The HSK63A（HSK63A）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
HSK63A High precision hydraulic mill chuck HSK63A High precision hydraulic mill chuck
Specification
| HSK63A-HDC06-80L | 6 | 32 | 48 | 80 | 32 | 29 | 46 | M5- |
| HSK63A-HDC06-125L | 6 | 32 | 48 | 125 | 38.5 | 28 | 44.5 | M5- |
| HSK63A-HDC08-80L | 8 | 34 | 50 | 80 | 32 | 29 | 46 | M6- |
| HSK63A-HDC08-125L | 8 | 32 | 48 | 125 | 38.5 | 28 | 44.5 | M6- |
| HSK63A-HDC10-80L | 10 | 36 | 50 | 80 | 32 | 31 | 50 | M8- |
| HSK63A-HDC10-125L | 10 | 36 | 50 | 125 | 40 | 37 | 51 | M8- |
| HSK63A-HDC12-80L | 12 | 38 | 50 | 80 | 32 | 32 | 50 | M8- |
| HSK63A-HDC12-125L | 12 | 38 | 50 | 125 | 41 | 37 | 51 | M8- |
| HSK63A-HDC14-80L | 14 | 40 | 50 | 80 | 40 | 38 | 50 | M8- |
| HSK63A-HDC16-90L | 16 | 42 | 50 | 90 | 41 | 40 | 51 | M8- |
| HSK63A-HDC16-125L | 16 | 42 | 50 | 125 | 43 | 40 | 52 | M8- |
| HSK63A-HDC18-90L | 18 | 42 | 50 | 90 | 41 | 40 | 51 | M8- |
| HSK63A-HDC20-90L | 20 | 42 | 50 | 90 | 41 | 40 | 52.5 | M8- |
| HSK63A-HDC20-120L | 20 | 44 | 50 | 125 | 41 | 40 | 52.5 | M8- |
| HSK63A-HDC20-175L | 20 | 42 | 50 | 175 | 41 | 40 | 52.5 | M8- |
| HSK63A-HDC20-200L | 20 | 42 | 50 | 200 | 45 | 40 | 52.5 | M8- |
| HSK63A-HDC25-110L | 25 | 53 | 63 | 110 | 55.5 | 45 | 61 | M8- |
| HSK63A-HDC32-110L | 32 | 63 | 63 | 110 | -- | 55 | 65 | M8- |
| HSK63A-HDC06-80L | 6 | 32 | 48 | 80 | 32 | 29 | 46 | M5- |
| HSK63A-HDC06-125L | 6 | 32 | 48 | 125 | 38.5 | 28 | 44.5 | M5- |
| HSK63A-HDC08-80L | 8 | 34 | 50 | 80 | 32 | 29 | 46 | M6- |
| HSK63A-HDC08-125L | 8 | 32 | 48 | 125 | 38.5 | 28 | 44.5 | M6- |
| HSK63A-HDC10-80L | 10 | 36 | 50 | 80 | 32 | 31 | 50 | M8- |
| HSK63A-HDC10-125L | 10 | 36 | 50 | 125 | 40 | 37 | 51 | M8- |
| HSK63A-HDC12-80L | 12 | 38 | 50 | 80 | 32 | 32 | 50 | M8- |
| HSK63A-HDC12-125L | 12 | 38 | 50 | 125 | 41 | 37 | 51 | M8- |
| HSK63A-HDC14-80L | 14 | 40 | 50 | 80 | 40 | 38 | 50 | M8- |
| HSK63A-HDC16-90L | 16 | 42 | 50 | 90 | 41 | 40 | 51 | M8- |
| HSK63A-HDC16-125L | 16 | 42 | 50 | 125 | 43 | 40 | 52 | M8- |
| HSK63A-HDC18-90L | 18 | 42 | 50 | 90 | 41 | 40 | 51 | M8- |
| HSK63A-HDC20-90L | 20 | 42 | 50 | 90 | 41 | 40 | 52.5 | M8- |
| HSK63A-HDC20-120L | 20 | 44 | 50 | 125 | 41 | 40 | 52.5 | M8- |
| HSK63A-HDC20-175L | 20 | 42 | 50 | 175 | 41 | 40 | 52.5 | M8- |
| HSK63A-HDC20-200L | 20 | 42 | 50 | 200 | 45 | 40 | 52.5 | M8- |
| HSK63A-HDC25-110L | 25 | 53 | 63 | 110 | 55.5 | 45 | 61 | M8- |
| HSK63A-HDC32-110L | 32 | 63 | 63 | 110 | -- | 55 | 65 | M8- |

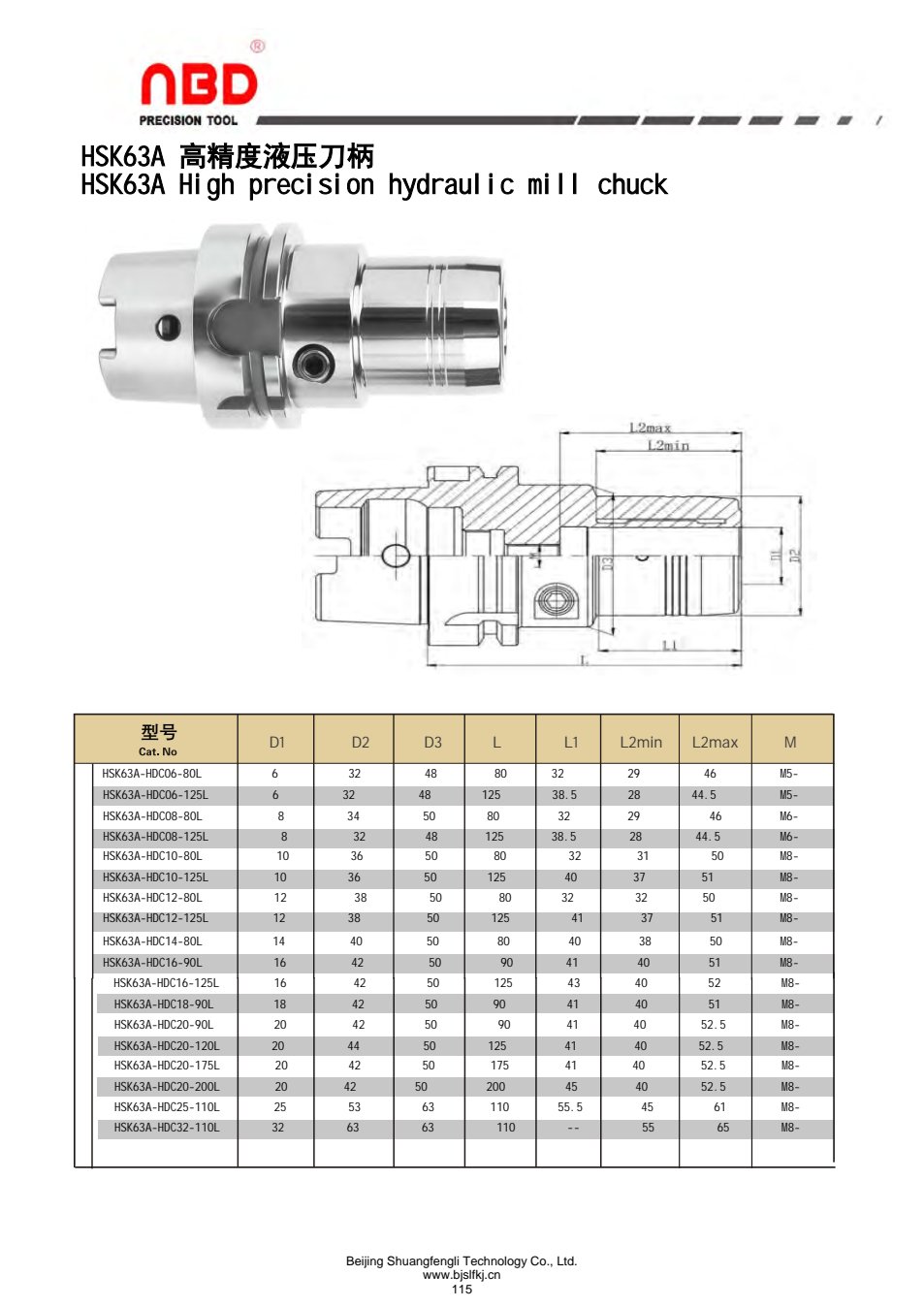

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | HSK63A |
|---|
