Internal Turning Tool — 内孔刀杆
Internal Turning Tool（内孔刀杆）— NBD 车削刀具 series. 17 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Internal Turning Tool（内孔刀杆）is part of NBD’s 车削刀具 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
压板型内孔刀杆 INTERNAL TURNING TOOLS 适用条件 Application 配 件 Parts 1204 0617 1814 0625 S40U-MCLNR/L12 50 40 350 55 38 26 15 S40U-MCLNR/L16 CN□□1606□□ 50 40 350 55 38 26 15
Specification
| S25R-MCLNR/L12 | 32 | 25 | 200 | 45 | 24 | 16.5 | 12 | ||||
| S32T-MCLNR/L12 | 40 | 32 | 300 | 50 | 30 | 22.5 | 17 | ||||
| S50V-MCLNR/L16 | 60 | 50 | 400 | 65 | 48 | 31 | 12 | L4.0 | |||
| S25S-MCKNR/L12 | 32 | 25 | 250 | 45 | 24 | 16 | 12 | ||||
| S32T-MCKNR/L12 | 40 | 32 | 300 | 50 | 30 | 22 | 17 | ||||
| S50V-MCKNR/L16 | 60 | 50 | 400 | 65 | 48 | 31 | 12 | L4.0 | |||
| L3.0 | S25S-MTJNR/L16 | 32 | 25 | 250 | 45 | 24 | 16 | 12 | |||
| 型号 | |||||||||||
| 型号 | |||||||||||
| 型号 | |||||||||||
| S32T-PTFNR/L16 | 44 | 32 | 30 | 300 | 50 | 22 | 10 | ||||
| S40T-PTFNR/L16 | 54 | 40 | 38 | 300 | 55 | 27 | 10 | ||||
| S32T-PDUNR/L15 | 40 | 32 | 30 | 300 | 40 | 22 | 16 | 0516 | 0820 | 1503 | 0606 |
| S40T-PDUNR/L15 | 50 | 40 | 38 | 300 | 50 | 27 | 11 | ||||
| 型号 | |||||||||||
| 型号 | |||||||||||
| 型号 |

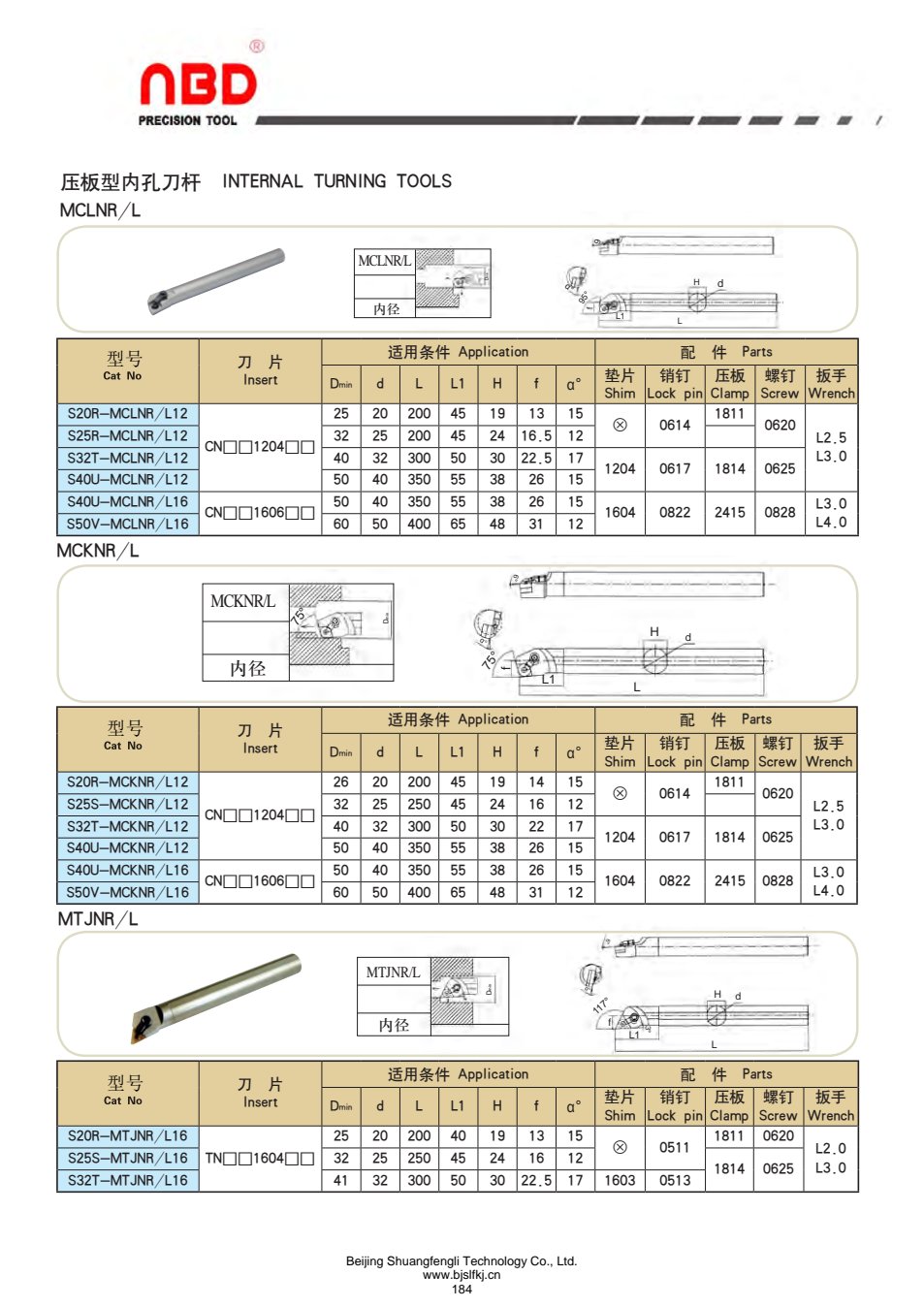

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | S25R |
|---|
