Internally cooled guide sleeve — 内冷导套
Internally cooled guide sleeve（内冷导套）— NBD 车床刀座 series. 28 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Internally cooled guide sleeve（内冷导套）is part of NBD’s 车床刀座 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Internally cooled guide sleeve Internally cooled guide sleeve
Specification
| 型号 | ΦD | Φd | |||||||||
| D16 | 16 | 4/5/6/7/8/7/8/9/10/12 | 65 | 10 | 40 | M6 | |||||
| D20 | 20 | 4/5/6/7/8/9/10/11/12/13/14/15/16 | MT1 | MT2 | 65 | 11 | 45 | M6 | |||
| D25 | 25 | 4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/20 | MT1 | MT2 | MT3 | 70 | 11 | 49 | M6 | ||
| D32 | 32 | 4//6/8/10/12/14//16/18/20/22/25 | MT1 | MT2 | MT3 | MT4 | 65 | 11 | 45 | M6 | |
| D40 | 40 | 4//6//8//10//12//14//16//18//20//22/24/25/30/32 | MT1 | MT2 | MT3 | MT4 | 100 | 14 | 73 | M8 | |
| D50 | 50 | 6/8/10/12/14/16/18/20/22/25/30/32/40 | MT1 | MT2 | MT3 | MT4 | 100 | 14 | 73 | M8 | |
| D60 | 60 | 16/18/20/22/25/32/40/50 | MT1 | MT2 | MT3 | MT4 | MT5 | 120 | 14 | 91 | M8 |
| 型号 | ΦD | Φd | |||||||||
| CD20 | 20 | 4/5/6/8 | 65 | 11 | 45 | M6 | |||||
| CD25 | 25 | 4/5/6/8/10/12 | 70 | 11 | 49 | M6 | |||||
| CD32 | 32 | 6/8/10/12/14/16 | 85 | 11 | 60 | M6 | |||||
| CD40 | 40 | 6/8/10/12/14/16/18/20 | 100 | 14 | 73 | M8 | |||||
| CD50 | 50 | 6/8/10/12/14/16/18/20/22/25/32 | 100 | 14 | 73 | M8 | |||||
| 型号 | ΦD | Φd | |||||||||
| D16 | 16 | 4/5/6/7/8/7/8/9/10/12 | 65 | 10 | 40 | M6 | |||||
| D20 | 20 | 4/5/6/7/8/9/10/11/12/13/14/15/16 | MT1 | MT2 | 65 | 11 | 45 | M6 | |||
| D25 | 25 | 4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/20 | MT1 | MT2 | MT3 | 70 | 11 | 49 | M6 | ||
| D32 | 32 | 4//6/8/10/12/14//16/18/20/22/25 | MT1 | MT2 | MT3 | MT4 | 65 | 11 | 45 | M6 | |
| D40 | 40 | 4//6//8//10//12//14//16//18//20//22/24/25/30/32 | MT1 | MT2 | MT3 | MT4 | 100 | 14 | 73 | M8 | |
| D50 | 50 | 6/8/10/12/14/16/18/20/22/25/30/32/40 | MT1 | MT2 | MT3 | MT4 | 100 | 14 | 73 | M8 | |
| D60 | 60 | 16/18/20/22/25/32/40/50 | MT1 | MT2 | MT3 | MT4 | MT5 | 120 | 14 | 91 | M8 |
| 型号 | ΦD | Φd | |||||||||
| CD20 | 20 | 4/5/6/8 | 65 | 11 | 45 | M6 | |||||
| CD25 | 25 | 4/5/6/8/10/12 | 70 | 11 | 49 | M6 | |||||
| CD32 | 32 | 6/8/10/12/14/16 | 85 | 11 | 60 | M6 | |||||
| CD40 | 40 | 6/8/10/12/14/16/18/20 | 100 | 14 | 73 | M8 | |||||
| CD50 | 50 | 6/8/10/12/14/16/18/20/22/25/32 | 100 | 14 | 73 | M8 |

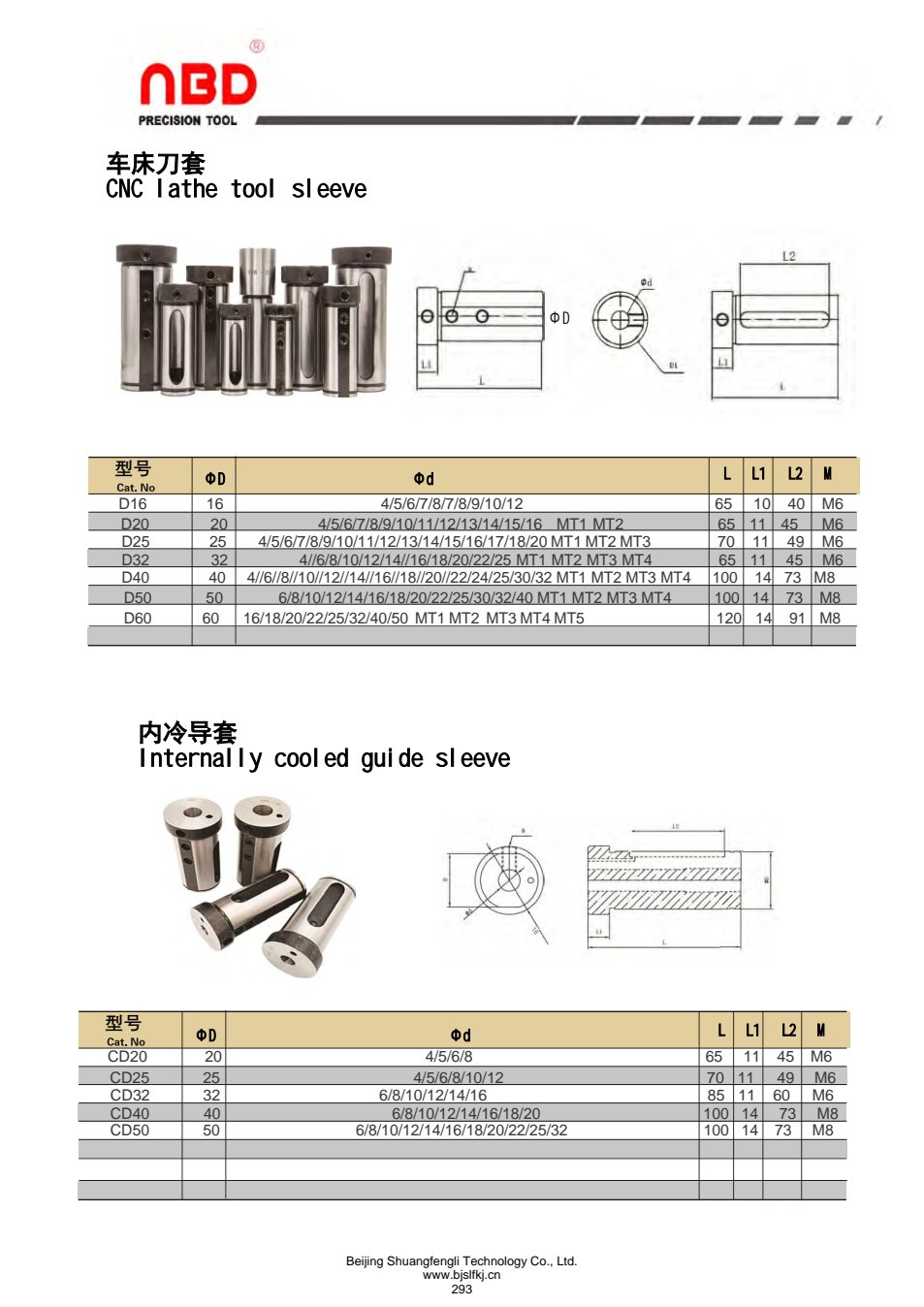

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
