Italian style Quick change tool — posts意式快换刀架
Italian style Quick change tool（posts意式快换刀架）— NBD 虎钳装夹 series. 22 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Italian style Quick change tool（posts意式快换刀架）is part of NBD’s 虎钳装夹 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

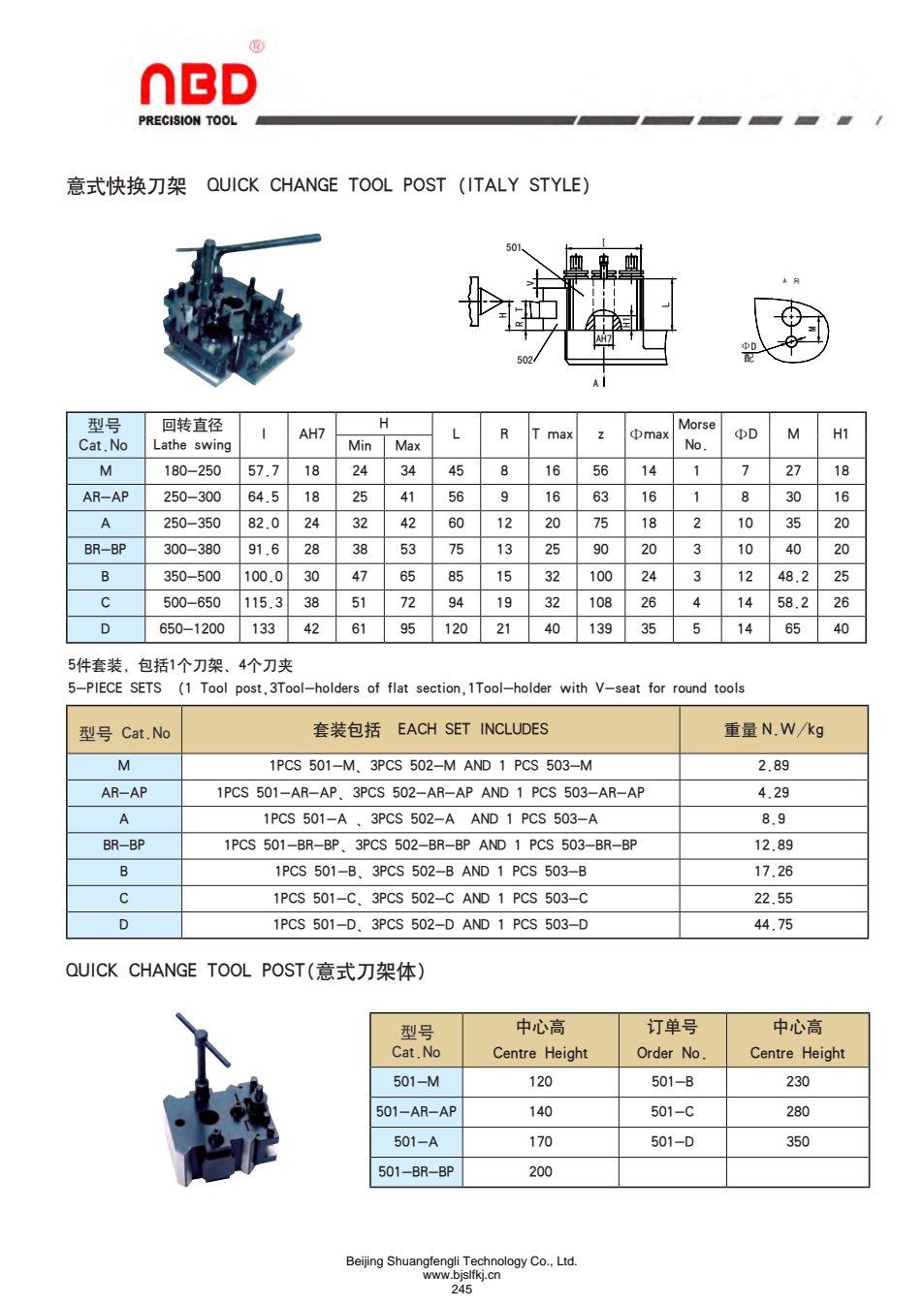

QUICK CHANGE TOOL POST(意式刀架体） 意式快换刀架 QUICK CHANGE TOOL POST (ITALY STYLE） 套装包括 EACH SET INCLUDES 重量 N.W/kg 5-PIECE SETS (1 Tool post,3Tool-holders of flat section,1Tool-holder with V-seat for round tools H1
Specification
| M | 1PCS | 501-M、3PCS | 502-M | AND | 1 | PCS | 503-M | 2.89 | |||
| AR-AP | 1PCS | 501-AR-AP、3PCS | 502-AR-AP | AND | 1 | PCS | 503-AR-AP | 4.29 | |||
| A | 1PCS | 501-A | 、3PCS | 502-A | AND | 1 | PCS | 503-A | 8.9 | ||
| BR-BP | 1PCS | 501-BR-BP、3PCS | 502-BR-BP | AND | 1 | PCS | 503-BR-BP | 12.89 | |||
| B | 1PCS | 501-B、3PCS | 502-B | AND | 1 | PCS | 503-B | 17.26 | |||
| C | 1PCS | 501-C、3PCS | 502-C | AND | 1 | PCS | 503-C | 22.55 | |||
| D | 1PCS | 501-D、3PCS | 502-D | AND | 1 | PCS | 503-D | 44.75 | |||
| M | 180-250 | 57.7 | 18 | 24 | 34 | 45 | 8 | 16 | 56 | 14 | 1 |
| AR-AP | 250-300 | 64.5 | 18 | 25 | 41 | 56 | 9 | 16 | 63 | 16 | 1 |
| A | 250-350 | 82.0 | 24 | 32 | 42 | 60 | 12 | 20 | 75 | 18 | 2 |
| BR-BP | 300-380 | 91.6 | 28 | 38 | 53 | 75 | 13 | 25 | 90 | 20 | 3 |
| B | 350-500 | 100.0 | 30 | 47 | 65 | 85 | 15 | 32 | 100 | 24 | 3 |
| C | 500-650 | 115.3 | 38 | 51 | 72 | 94 | 19 | 32 | 108 | 26 | 4 |
| D | 650-1200 | 133 | 42 | 61 | 95 | 120 | 21 | 40 | 139 | 35 | 5 |
| 型号 | |||||||||||
| 型号 | Cat.No | ||||||||||
| 型号 | |||||||||||
| 型号 | Cat.No | 最大刀杆尺寸 | Max | Square | and | Rectangular | Tools | ||||
| 型号 | Cat.No | 最大夹持直径 | Max | Holding | Dia. | ||||||
| 型号 | Cat.No | 莫氏锥孔 | Morse | Taper | |||||||
| 型号 | Cat.No | 最大夹持直径 | Max | Holding | Dia. | ||||||
| 型号 | Cat.No | 刀片 | Parting | blade |
All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | posts意式快换刀架 |
|---|
