J46 Reversible Tapping — Chuck可逆攻丝夹头
J46 Reversible Tapping（Chuck可逆攻丝夹头）— NBD 孔加工刀具 series. 9 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The J46 Reversible Tapping（Chuck可逆攻丝夹头）is part of NBD’s 孔加工刀具 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

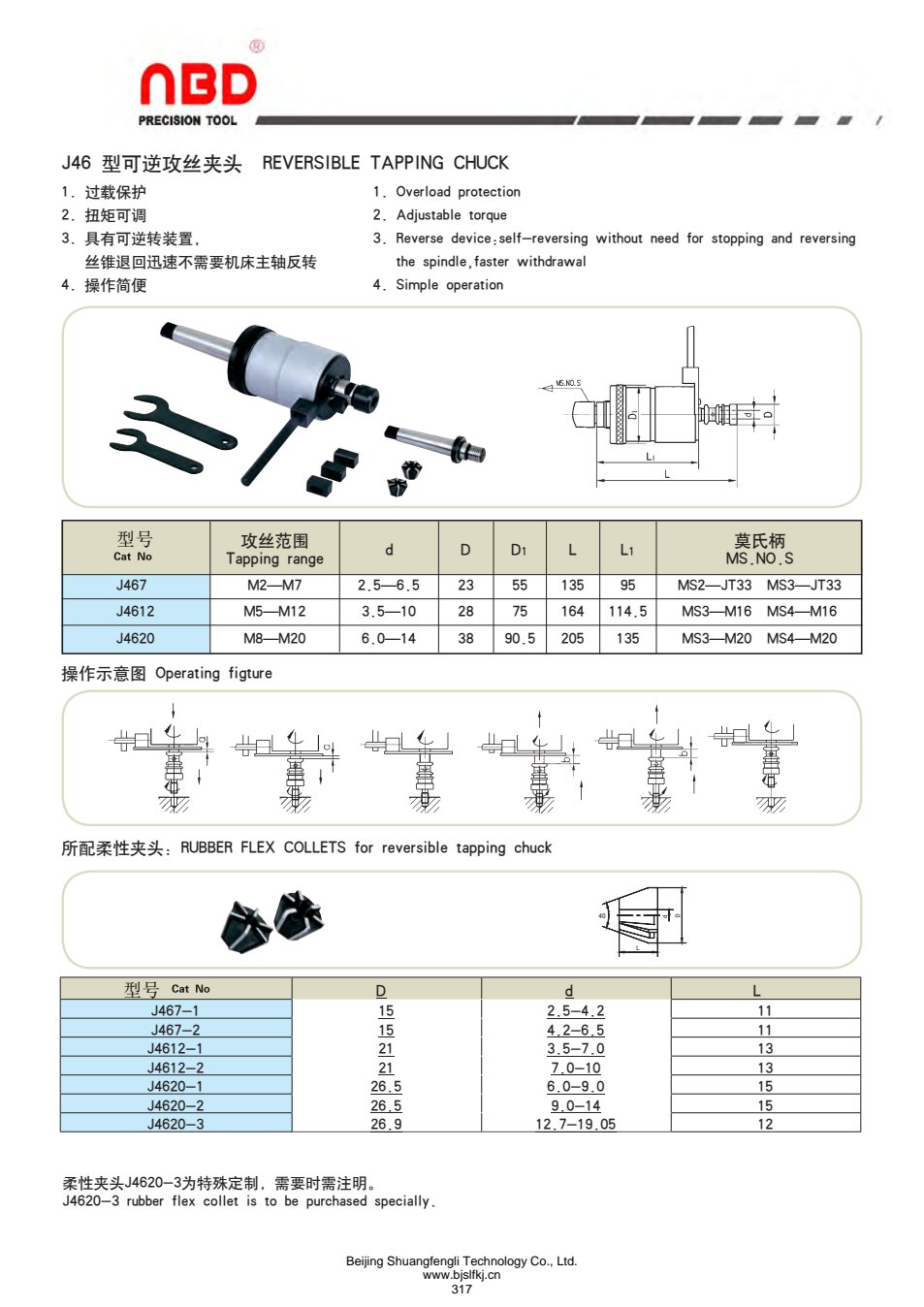

J46 型可逆攻丝夹头 REVERSIBLE TAPPING CHUCK 3. Reverse device:self-reversing without need for stopping and reversing the spindle,faster withdrawal 所配柔性夹头：RUBBER FLEX COLLETS for reversible tapping chuck
Specification
| J467-1 | 15 | 2.5-4.2 | 11 |
| J467-2 | 15 | 4.2-6.5 | 11 |
| J4612-1 | 21 | 3.5-7.0 | 13 |
| J4612-2 | 21 | 7.0-10 | 13 |
| J4620-1 | 26.5 | 6.0-9.0 | 15 |
| J4620-2 | 26.5 | 9.0-14 | 15 |
| J4620-3 | 26.9 | 12.7-19.05 | 12 |
| 型号 | |||
| 型号 |
All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | J467 |
|---|
