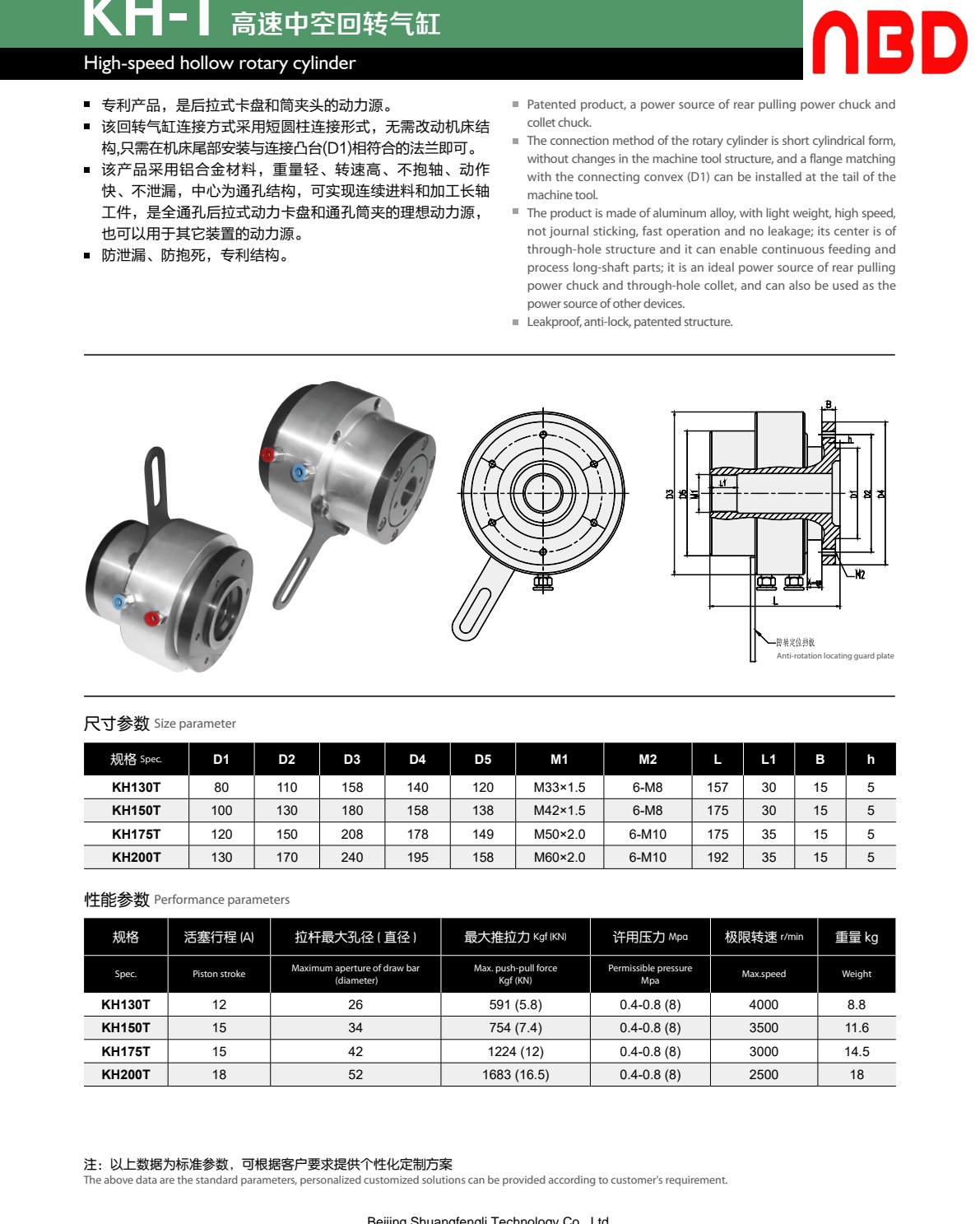

High-Speed Hollow Rotary Air Cylinder (KH-T) — KH-T 高速中空回转气缸
KH-T 高速中空回转气缸（High-Speed Hollow Rotary Air Cylinder (KH-T)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The High-Speed Hollow Rotary Air Cylinder (KH-T)（KH-T 高速中空回转气缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
Patented product, a power source of rear pulling power chuck and The connection method of the rotary cylinder is short cylindrical form, without changes in the machine tool structure, and a flange matching with the connecting convex (D1) can be installed at the tail of the The product is made of aluminum alloy, with light weight, high speed, not journal sticking, fast operation and no leakage; its center is of
| 规格 活塞行程 (A) 拉杆最大孔径 ( 直径 ) 最大推拉力 Kgf (KN) 许用压力 Mpa 极限转速 r/min 重量 kg |
|---|
| (diameter) |
| KH130T 12 26 591 (5.8) 0.4-0.8 (8) 4000 8.8 |
| KH150T 15 34 754 (7.4) 0.4-0.8 (8) 3500 11.6 |
| KH175T 15 42 1224 (12) 0.4-0.8 (8) 3000 14.5 |
| KH200T 18 52 1683 (16.5) 0.4-0.8 (8) 2500 18 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
