L-shaped row tool holder — L型排刀刀座
L-shaped row tool holder（L型排刀刀座）— NBD 车床刀座 series. 50 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The L-shaped row tool holder（L型排刀刀座）is part of NBD’s 车床刀座 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Specification
| ZA-H40-16 | PR38-65-M10 | 40 | 16 | |
| ZA-H45-16 | PR38-65-M10 | 45 | 16 | |
| ZA-H50-16 | PR38-65-M10 | 50 | 16 | |
| ZA-H55-16 | PR38-65-M10 | 55 | 16 | |
| ZA-H56-16 | PR38-65-Ml0 | 56 | 16 | |
| ZA-H60-16 | PR38-65-M10 | 60 | 16 | |
| ZA-H63-16 | PR38-65-M10 | 63 | 16 | |
| ZA-H65-16 | PR38-65-M10 | 65 | 16 | |
| ZA-H70-16 | PR38-65-M10 | 70 | 16 | |
| ZA-H40-20 | PR38-65-M10 | 40 | 20 | |
| ZA-H45-20 | PR38-65-M10 | 45 | 20 | |
| ZA-H50-20 | PR38-65-M10 | 50 | 20 | |
| ZA-H55-20 | PR38-65-Ml0 | 55 | 20 | |
| ZA-H56-20 | PR38-65-Ml0 | 56 | 20 | |
| ZA-H60-20 | PR38-65-Ml0 | 60 | 20 | |
| ZA-H63-20 | PR38-65-M10 | 63 | 20 | |
| ZA-H65-20 | PR38-65-M10 | 65 | 20 | |
| ZA-H70-20 | PR38-65-M10 | 70 | 20 | |
| 型号 | Cat | No | H | D |
| ZA-H40-25 | PR38-65-M10 | 40 | 25 | |
| ZA-H45-25 | PR38-65-M10 | 45 | 25 | |
| ZA-H50-25 | PR38-65-M10 | 50 | 25 | |
| ZA-H55-25 | PR38-65-M10 | 55 | 25 | |
| ZA-H56-25 | PR38-65-Ml0 | 56 | 25 | |
| ZA-H60-25 | PR38-65-M10 | 60 | 25 | |
| ZA-H63-25 | PR38-65-M10 | 63 | 25 | |
| ZA-H65-25 | PR38-65-M10 | 65 | 25 | |
| ZA-H70-25 | PR38-65-M10 | 70 | 25 | |
| ZA-H80-25 | PR38-65-M10 | 80 | 25 | |
| ZA-H45-32 | PR38-65-M10 | 45 | 32 | |
| ZA-H50-32 | PR38-65-M10 | 50 | 32 | |
| ZA-H55-32 | PR38-65-M10 | 55 | 32 | |
| ZA-H56-32 | PR38-65-Ml0 | 56 | 32 | |
| ZA-H60-32 | PR38-65-Ml0 | 60 | 32 | |
| ZA-H63-32 | PR38-65-M10 | 63 | 32 | |
| ZA-H65-32 | PR38-65-M10 | 65 | 32 | |
| ZA-H70-32 | PR38-65-M10 | 70 | 32 | |
| ZA-H80-32 | PR38-65-M10 | 80 | 32 | |
| 型号 | Cat | No | ||
| ZA-H40-16 | PR38-65-M10 | 40 | 16 | |
| ZA-H45-16 | PR38-65-M10 | 45 | 16 | |
| ZA-H50-16 | PR38-65-M10 | 50 | 16 | |
| ZA-H55-16 | PR38-65-M10 | 55 | 16 | |
| ZA-H56-16 | PR38-65-Ml0 | 56 | 16 | |
| ZA-H60-16 | PR38-65-M10 | 60 | 16 | |
| ZA-H63-16 | PR38-65-M10 | 63 | 16 | |
| ZA-H65-16 | PR38-65-M10 | 65 | 16 | |
| ZA-H70-16 | PR38-65-M10 | 70 | 16 | |
| ZA-H40-20 | PR38-65-M10 | 40 | 20 | |
| ZA-H45-20 | PR38-65-M10 | 45 | 20 |

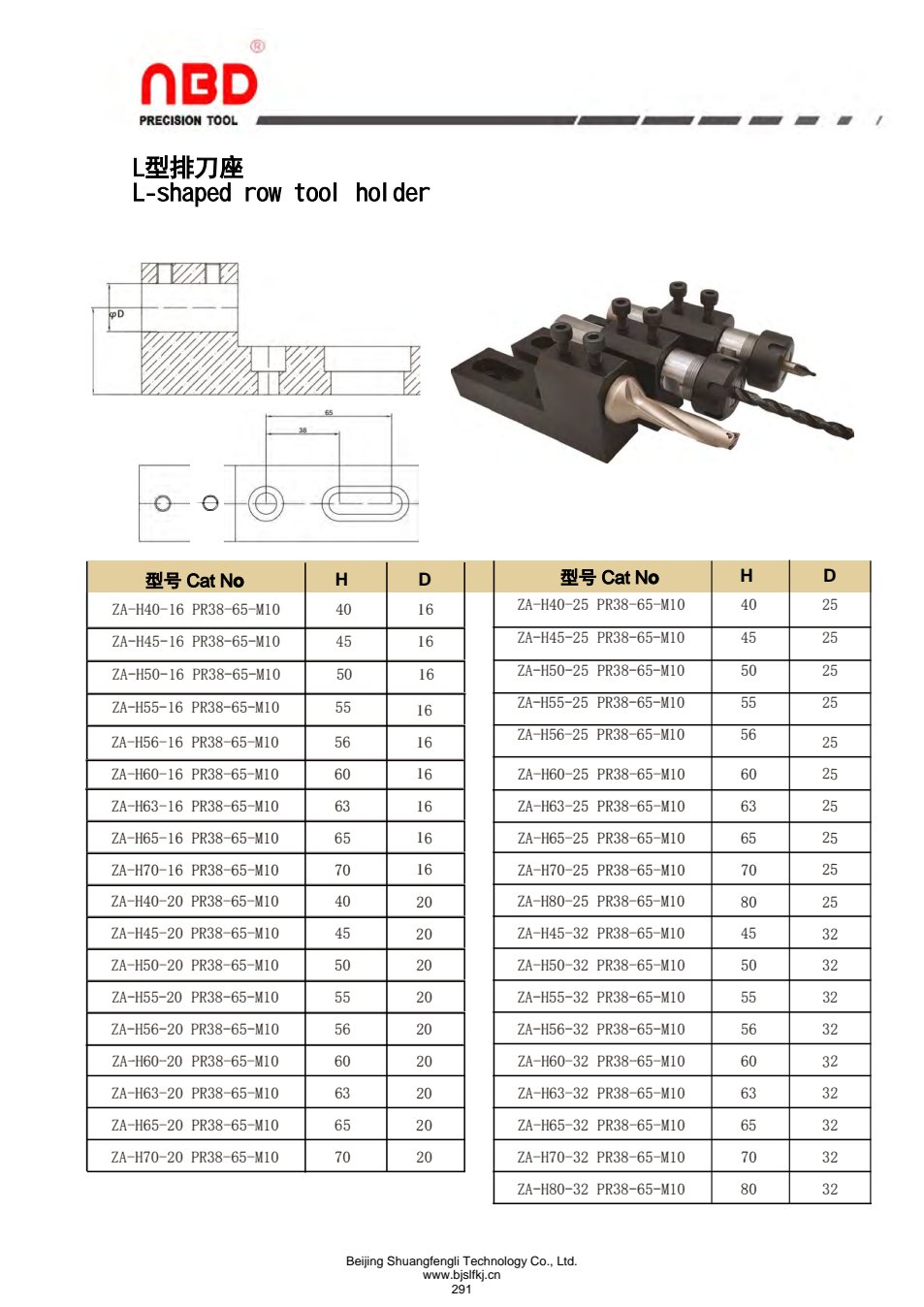

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | H40 |
|---|
