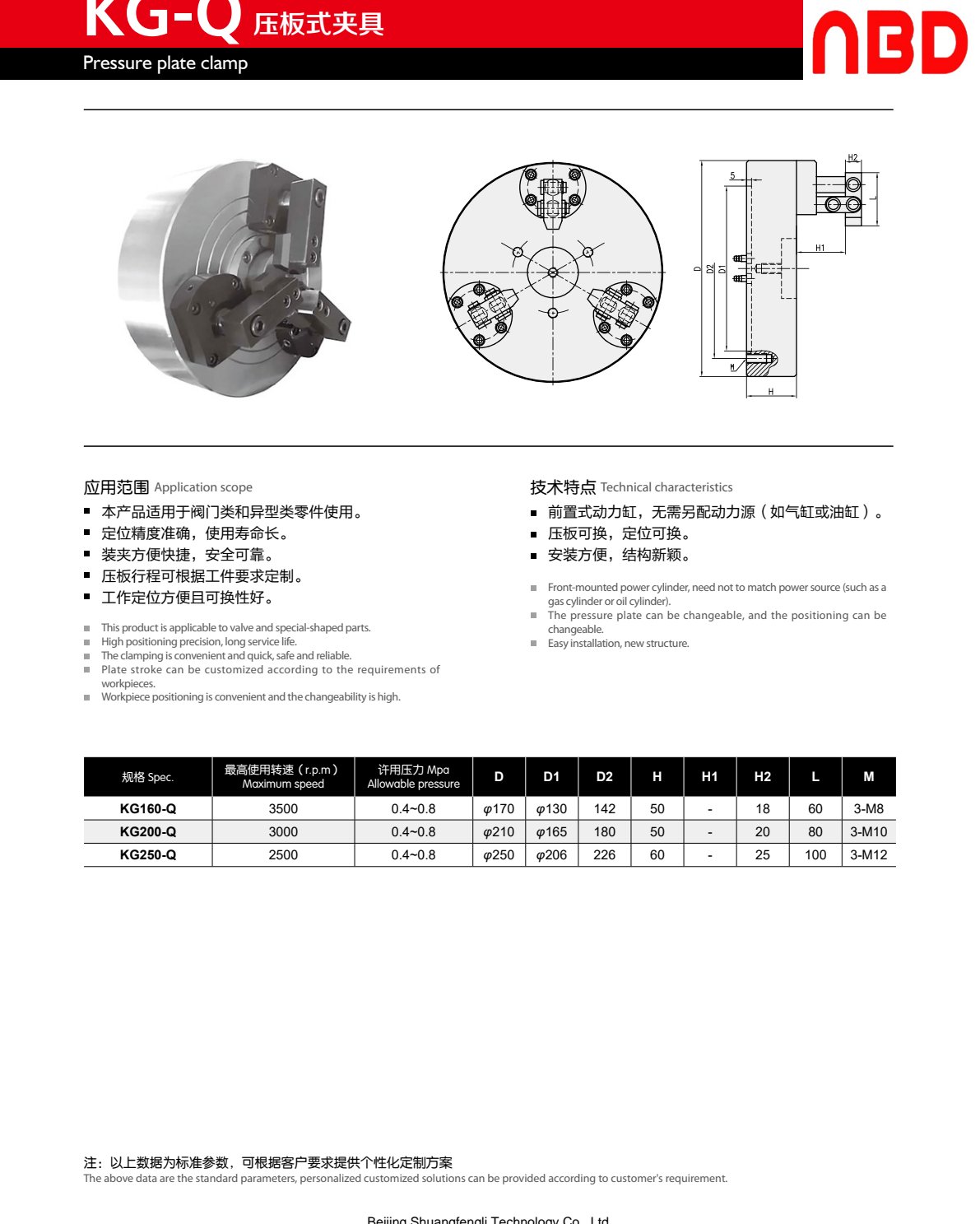

Press-Plate Clamp (KG-Q) — KG-Q 压板式夹具
KG-Q 压板式夹具（Press-Plate Clamp (KG-Q)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Press-Plate Clamp (KG-Q)（KG-Q 压板式夹具）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
This product is applicable to valve and special-shaped parts. High positioning precision, long service life. The clamping is convenient and quick, safe and reliable. Plate stroke can be customized according to the requirements of Workpiece positioning is convenient and the changeability is high. 应用范围 Application scope
| 规格 Spec. 最高使用转速（r.p.m） |
|---|
| KG160-Q 3500 0.4~0.8 φ170 φ130 142 50 - 18 60 3-M8 |
| KG200-Q 3000 0.4~0.8 φ210 φ165 180 50 - 20 80 3-M10 |
| KG250-Q 2500 0.4~0.8 φ250 φ206 226 60 - 25 100 3-M12 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
