Middle-Solid Rotary Hydraulic Cylinder (RK) — RK 中实回转油缸
RK 中实回转油缸（Middle-Solid Rotary Hydraulic Cylinder (RK)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Middle-Solid Rotary Hydraulic Cylinder (RK)（RK 中实回转油缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

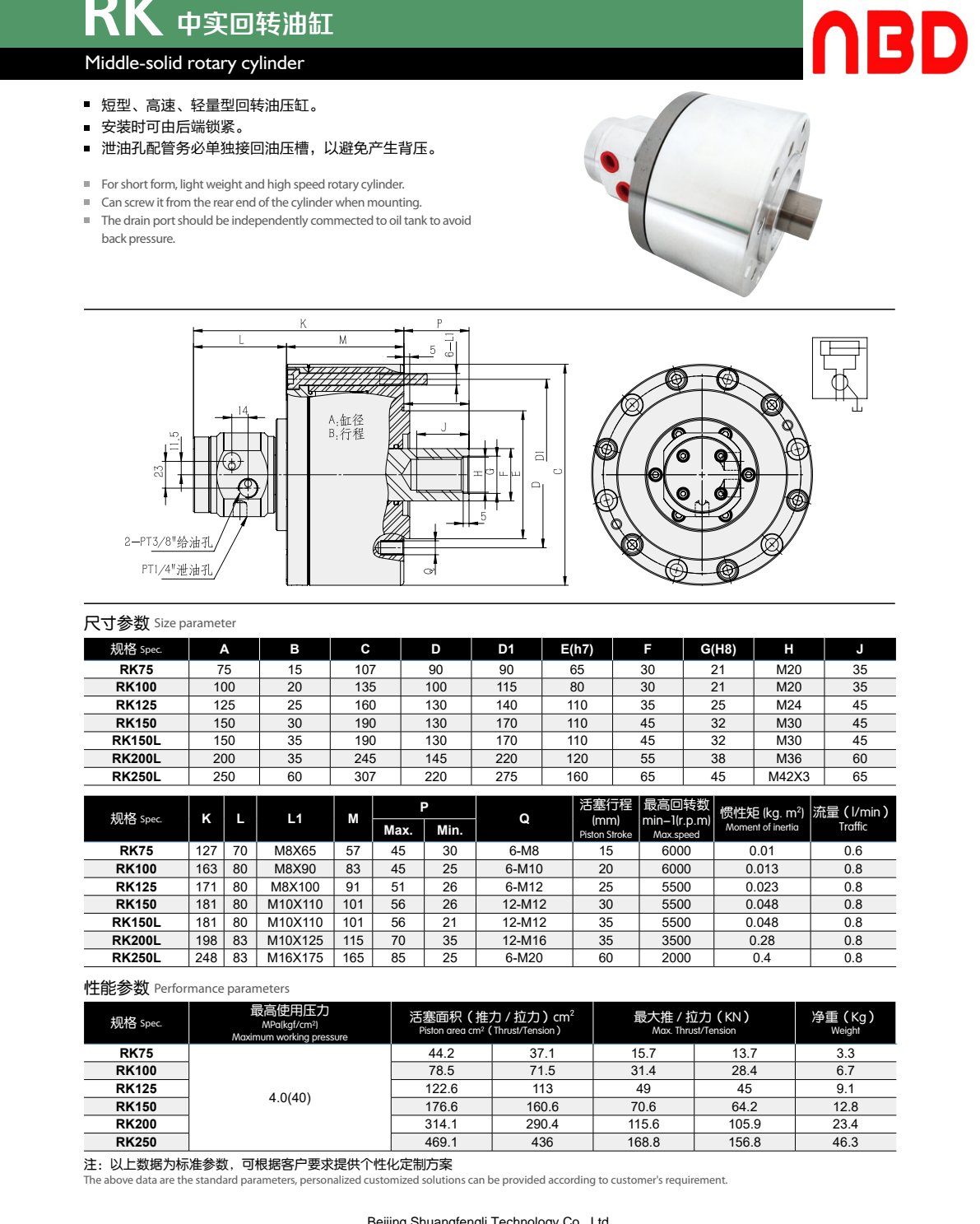

For short form, light weight and high speed rotary cylinder. Can screw it from the rear end of the cylinder when mounting. The drain port should be independently commected to oil tank to avoid Middle-solid rotary cylinder Maximum working pressure Piston area cm2（Thrust/Tension）
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
