Self-Centering Steady Rest (TSC-B) — TSC-B 自定心中心架
TSC-B 自定心中心架（Self-Centering Steady Rest (TSC-B)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Self-Centering Steady Rest (TSC-B)（TSC-B 自定心中心架）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

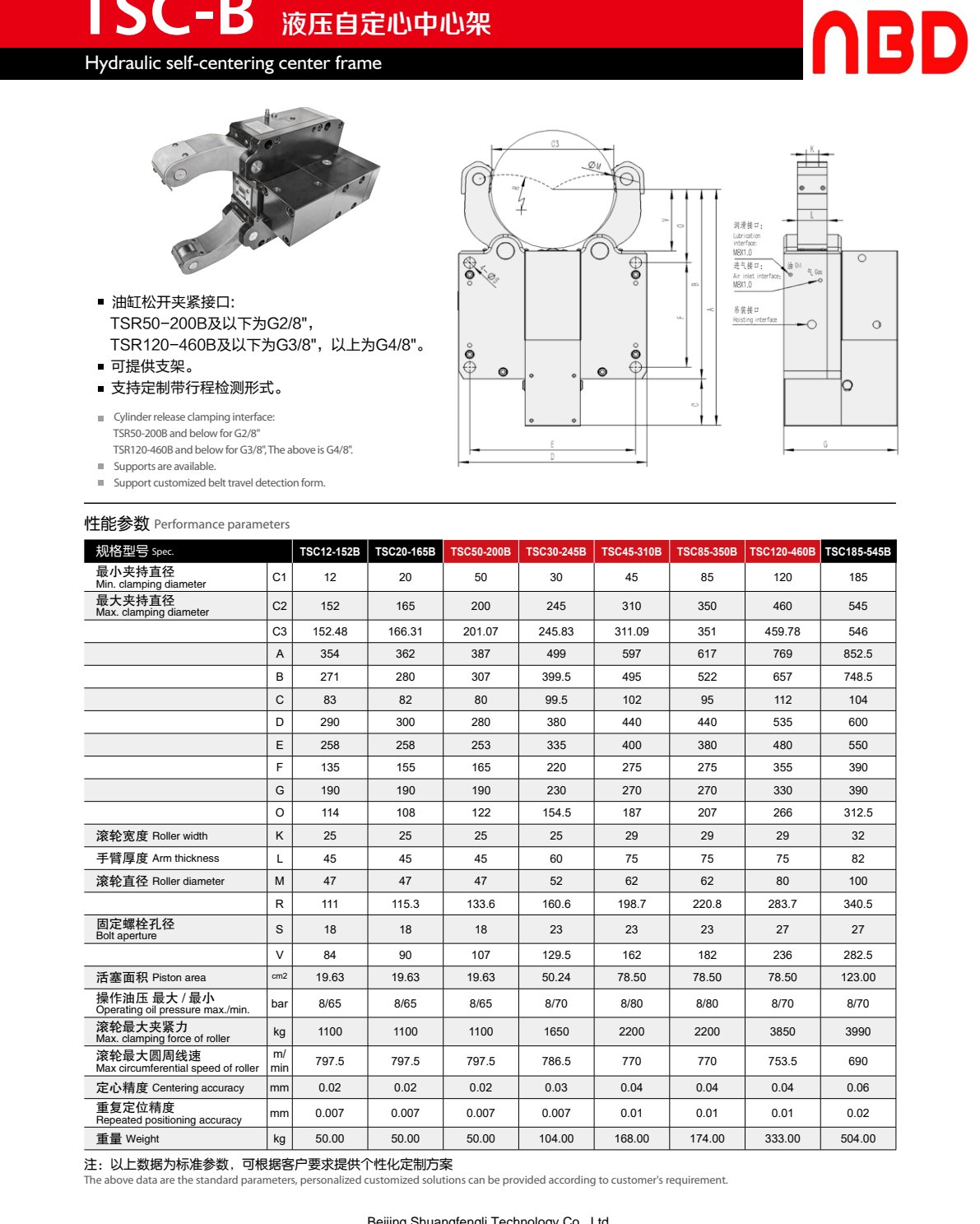

Min. clamping diameter C1 12 20 50 30 45 85 120 185 Max. clamping diameter C2 152 165 200 245 310 350 460 545 滚轮宽度 Roller width K 25 25 25 25 29 29 29 32 手臂厚度 Arm thickness L 45 45 45 60 75 75 75 82 滚轮直径 Roller diameter M 47 47 47 52 62 62 80 100 Bolt aperture S 18 18 18 23 23 23 27 27
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
