Spindle taper wiper — 主轴清洁棒及锁刀座
Spindle taper wiper（主轴清洁棒及锁刀座）— NBD 筒夹附件 series. 28 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Spindle taper wiper（主轴清洁棒及锁刀座）is part of NBD’s 筒夹附件 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Specification
| 型号 | |||||
| 型号 | |||||
| 型号 | H | D | D1 | L | L1 |
| HSK32A | 165 | 58 | 32 | 105 | 80 |
| HSK40A | 165 | 64 | 40 | 105 | 80 |
| HSK50A | 165 | 75 | 50 | 105 | 80 |
| HSK63A | 185 | 88 | 63 | 105 | 80 |
| HSK100A | 120 | 131 | 100 | 135 | 111.5 |
| HSK32E | 165 | 58 | 32 | 105 | 80 |
| HSK40E | 165 | 64 | 40 | 105 | 80 |
| HSK50E | 165 | 75 | 50 | 105 | 80 |
| HSK63E | 185 | 88 | 63 | 105 | 80 |
| HSK50F | 165 | 75 | 63 | 105 | 80 |
| HSK63F | 185 | 88 | 63 | 105 | 80 |
| 型号 | |||||
| 型号 | |||||
| 型号 | H | D | D1 | L | L1 |
| HSK32A | 165 | 58 | 32 | 105 | 80 |
| HSK40A | 165 | 64 | 40 | 105 | 80 |
| HSK50A | 165 | 75 | 50 | 105 | 80 |
| HSK63A | 185 | 88 | 63 | 105 | 80 |
| HSK100A | 120 | 131 | 100 | 135 | 111.5 |
| HSK32E | 165 | 58 | 32 | 105 | 80 |
| HSK40E | 165 | 64 | 40 | 105 | 80 |
| HSK50E | 165 | 75 | 50 | 105 | 80 |
| HSK63E | 185 | 88 | 63 | 105 | 80 |
| HSK50F | 165 | 75 | 63 | 105 | 80 |
| HSK63F | 185 | 88 | 63 | 105 | 80 |

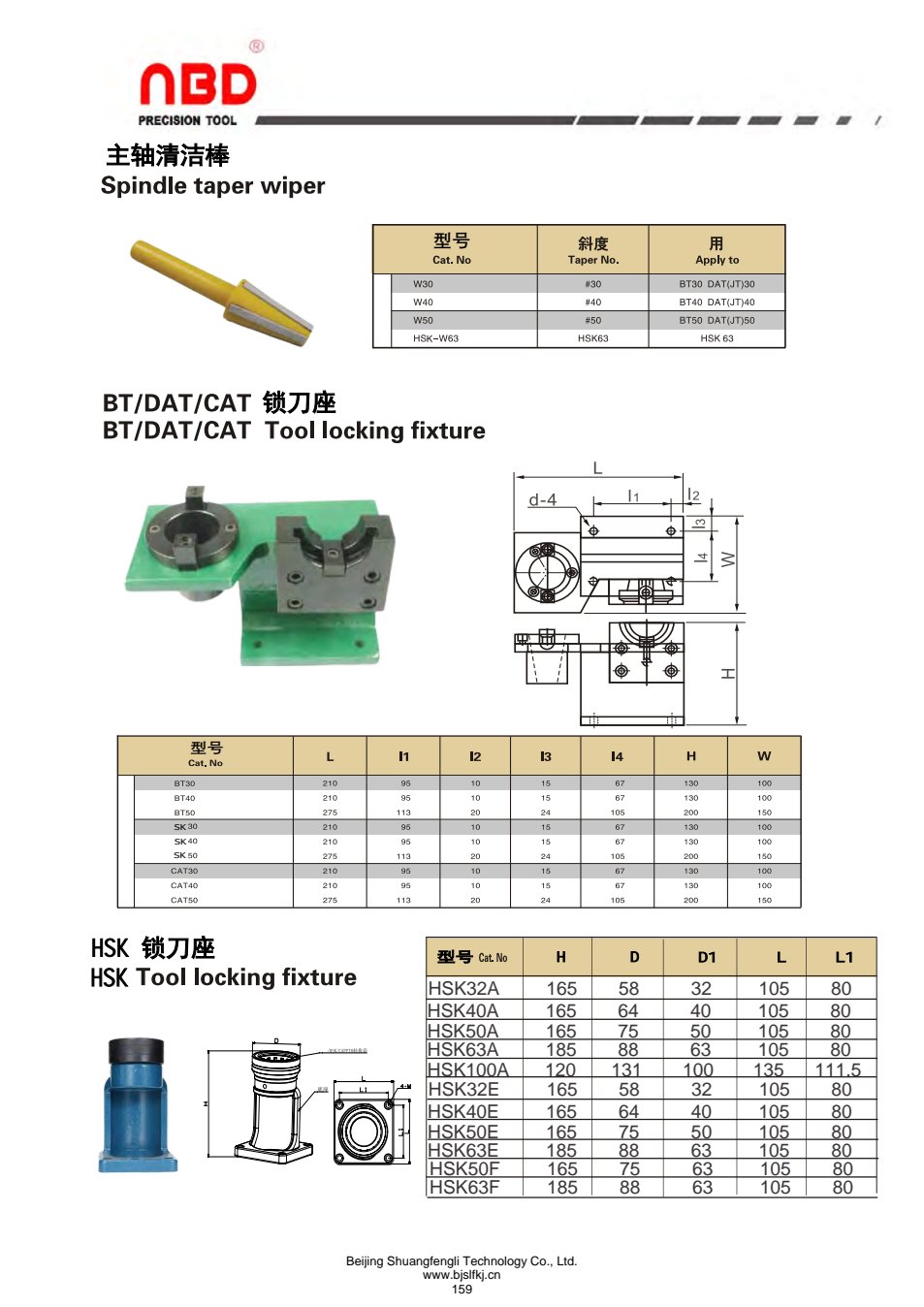

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | HSK32A |
|---|
