Turning tool pressing block — 压块
Turning tool pressing block（压块）— NBD 车床刀座 series. 12 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Turning tool pressing block（压块）is part of NBD’s 车床刀座 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Using the wedge pressing principle, you can firmly press the turning tool It is suitable for reducing the diameter of the inner hole of the Turning tool pressing block
Specification
| 型号 | ΦD | Φd | L |
| EF25 | 25 | 8-10-12-14-16-18-20 | 75 |
| EF60 | 25 | 8-10-12-14-16-18-20-25-32-40-50 | 135 |
| EF50 | 50 | 8-10-12-14-16-18-20-25-32-40 | 125 |
| EF40 | 40 | 8-10-12-14-16-18-20-25-32 | 105 |
| EF32 | 32 | 8-10-12-14-16-18-20-25 | 95 |
| 型号 | ΦD | Φd | L |
| EF25 | 25 | 8-10-12-14-16-18-20 | 75 |
| EF60 | 25 | 8-10-12-14-16-18-20-25-32-40-50 | 135 |
| EF50 | 50 | 8-10-12-14-16-18-20-25-32-40 | 125 |
| EF40 | 40 | 8-10-12-14-16-18-20-25-32 | 105 |
| EF32 | 32 | 8-10-12-14-16-18-20-25 | 95 |

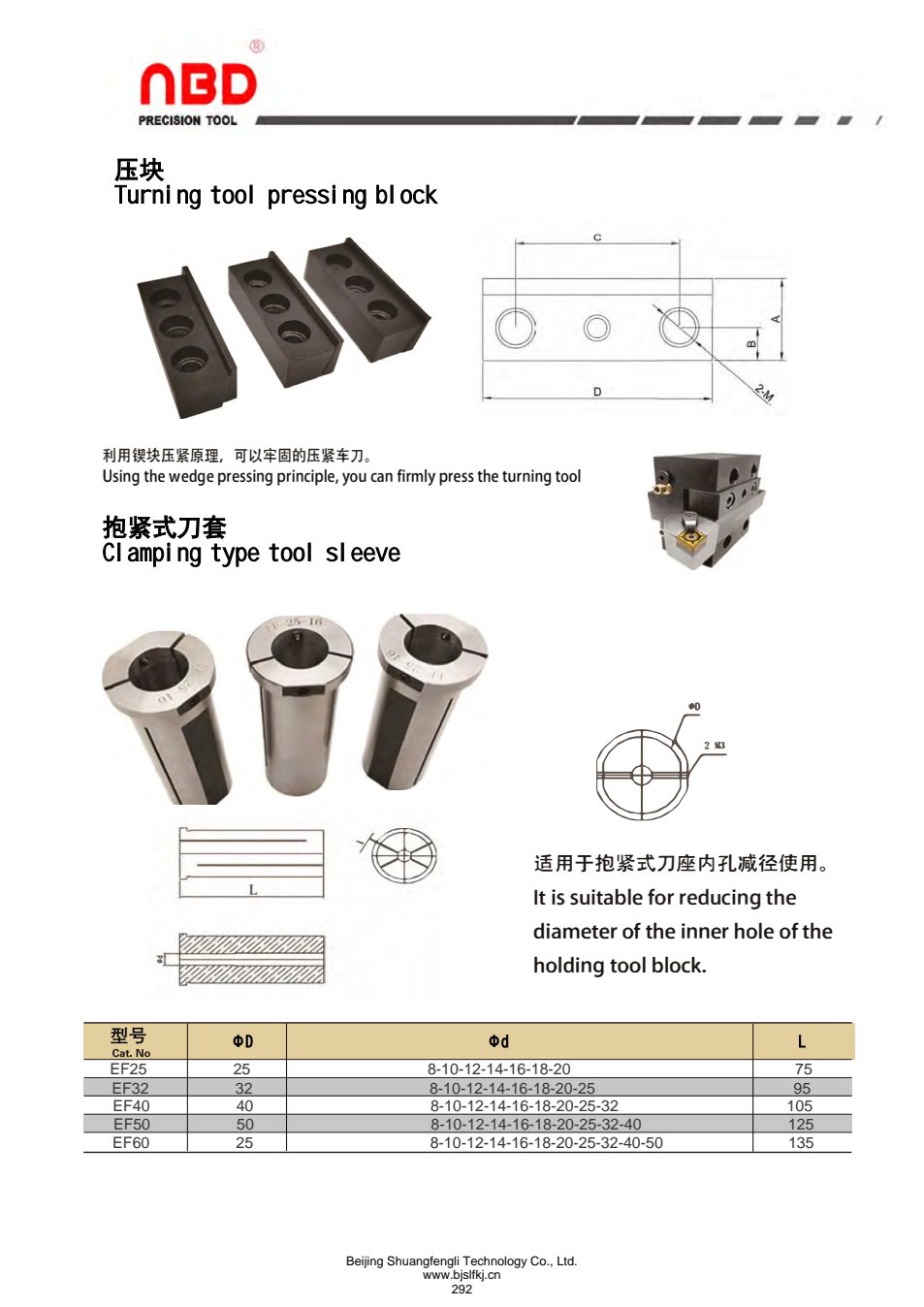

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | EF25 |
|---|
