VDI Tool Holder（刀座）— NBD 车床刀座 series. 18 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The VDI Tool Holder（刀座）is part of NBD’s 车床刀座 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

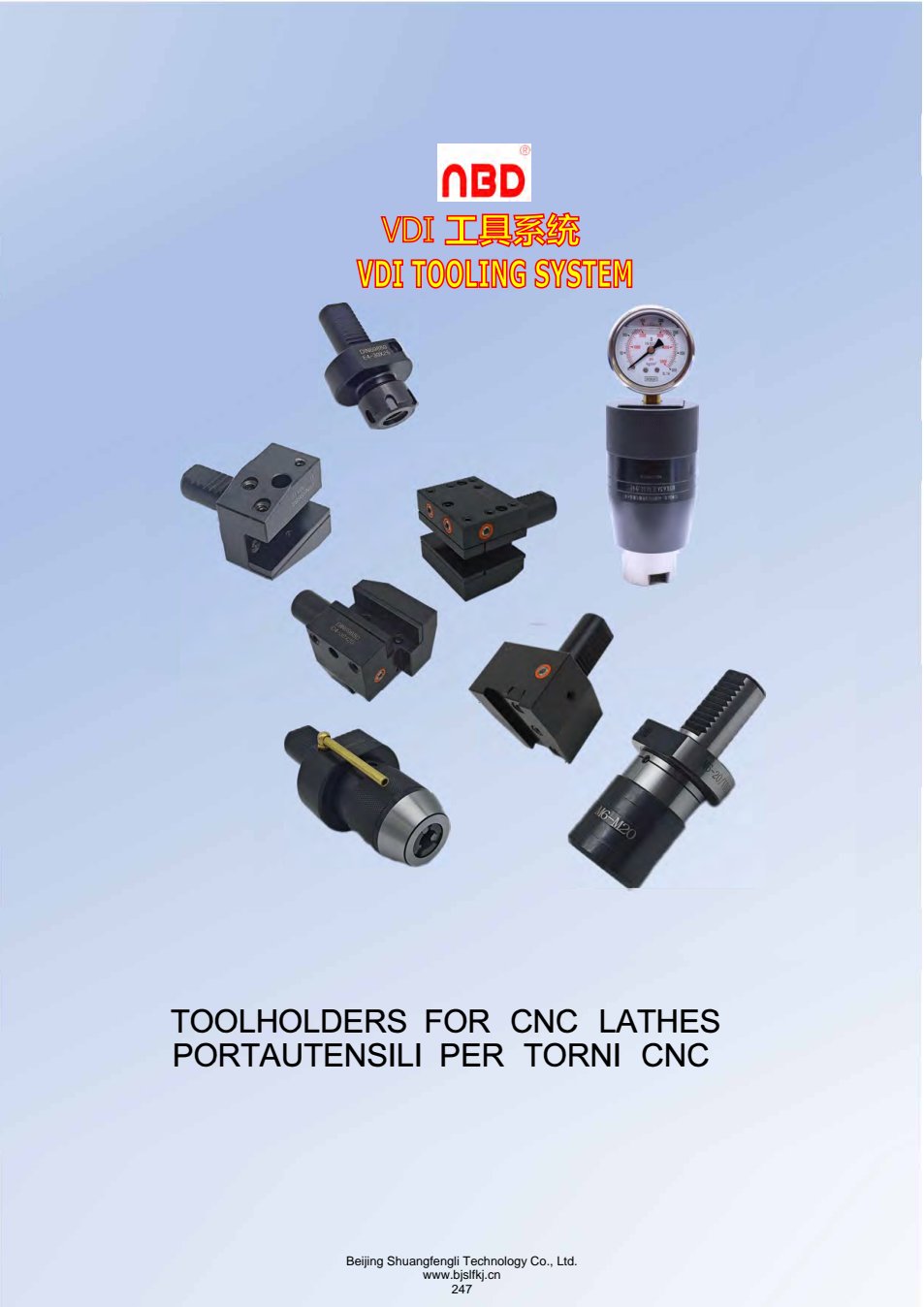

TOOLHOLDERS FOR CNC LATHES PORTAUTENSILI PER TORNI CNC
Specification
| 型号 | Cat | No | D | D1 | H1 | H2 | H3 | L1 | L2 | L3 |
| T1-30-2XB25-113 | 30 | 25 | 65 | 62 | 80 | 113 | 133 | |||
| T1-30-2XB25-137 | 30 | 25 | 65 | 62 | 85 | 137 | 158 | |||
| T1-30-2XB32-100 | 30 | 32 | 65 | 62 | 55 | 100 | 128 | |||
| T1-40-2XB25-120 | 40 | 25 | 80 | 65 | 85 | 85 | 120 | 146 | ||
| T1-40-2XB32-90 | 40 | 32 | 80 | 65 | 85 | 47 | 90 | 112 | ||
| T1-40-2XB40-100 | 40 | 40 | 80 | 65 | 85 | 45 | 100 | 127 | ||
| T1-40-2XB40-120 | 40 | 40 | 80 | 65 | 85 | 65 | 120 | 147 | ||
| 型号 | Cat | No | A | B | C | D | ||||
| VDl16/W-16 | M5 | 22 | 20 | 16 | ||||||
| VDl20/W-18 | M6 | 28 | 20 | 18 | ||||||
| VDl30/W-22 | MB | 34 | 20 | 22 | ||||||
| VDl40/W-28 | M10 | 42 | 20 | 28 | ||||||
| VDl40/W-40 | M10 | 44 | 20 | 40 | ||||||
| VDl50/W-36 | M10 | 48 | 25 | 36 | ||||||
| VDISO/W-50 | M12 | 56 | 25 | 50 | ||||||
| VDl60/W-42 | M12 | 54 | 25 | 42 | ||||||
| VDl80/W-50 | M16 | 70 | 25 | 50 |
All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | T1 |
|---|
