Vertical Hollow Hydraulic Chuck (KL-Y) — KL-Y 立式中空液压卡盘
KL-Y 立式中空液压卡盘（Vertical Hollow Hydraulic Chuck (KL-Y)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description

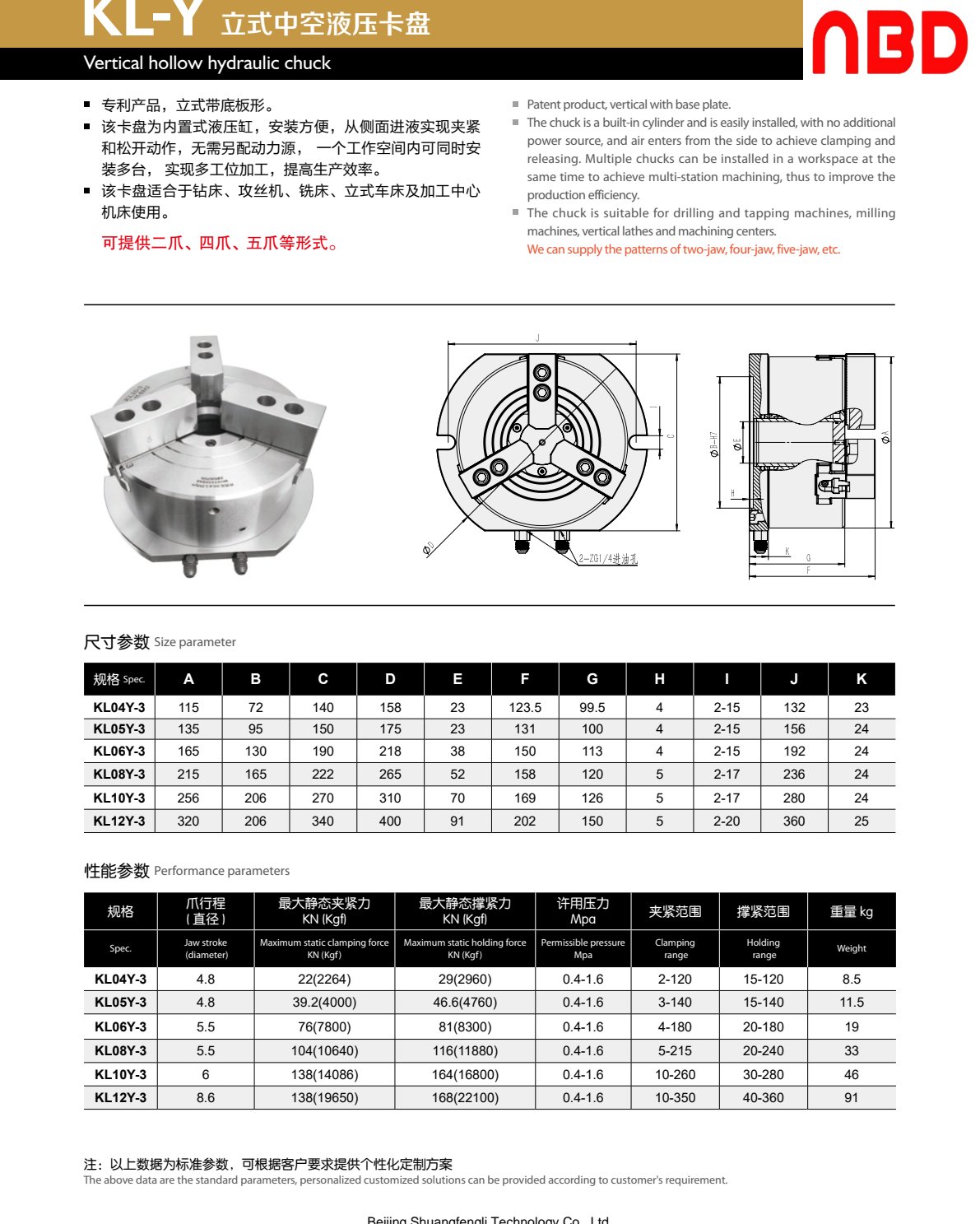

The Vertical Hollow Hydraulic Chuck (KL-Y)（KL-Y 立式中空液压卡盘）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
Patent product, vertical with base plate. The chuck is a built-in cylinder and is easily installed, with no additional power source, and air enters from the side to achieve clamping and releasing. Multiple chucks can be installed in a workspace at the same time to achieve multi-station machining, thus to improve the production efficiency.
| 规格 爪行程 |
|---|
| ( 直径 ) |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
