BT40 Slim From C — 薄壁C型

BT40 Slim From C（薄壁C型）— NBD 铣削刀具刀柄 series. 50 spec rows in catalogue. Factory-direct, custom sizes on request.

SKU: BT40 Category: Tags: , , , , , , , , , ,

Description

The BT40 Slim From C（薄壁C型）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

Specification

BT40 Shrink chuck 3°slim form C
BT40-SFA4-95-M42 4 7 95 42 26 11.4 25 12 130
BT40-SFA4-120-M67 4 7 120 67 26 14 25 12 155
BT40-SFA4-125-M42 4 7 125 42 56 11.4 26 12 160
BT40-SFA4-150-M67 4 7 150 67 56 14 25 12 185
BT40-SFA4-150-M97 4 7 150 97 26 17.2 26 12 185
BT40-SFA4-180-M97 4 7 180 97 56 17.2 25 12 215
BT40-SFA6-95-M42 6 9 95 42 26 13.4 25 18 130
BT40-SFA6-120-M67 6 9 120 67 26 16 26 18 155
BT40-SFA6-125-M42 6 9 125 42 56 13.4 25 18 160
BT40-SFA6-150-M67 6 9 150 67 56 16 25 18 185
BT40-SFA6-150-M97 6 9 150 97 26 19.2 36 18 185
BT40-SFA6-180-M97 6 9 180 97 56 19.2 36 18 215
BT40-SFA8-95-M42 8 11 95 42 26 15.4 25 24 130
BT40-SFA8-120-M67 8 11 120 67 26 18 36 24 155
BT40-SFA8-125-M42 8 11 125 42 56 15.4 36 24 160
BT40-SFA8-150-M67 8 11 150 67 56 18 36 24 185
BT40-SFA8-150-M97 8 11 150 97 26 21.2 36 24 185
BT40-SFA8-180-M97 8 11 180 97 56 21.2 36 24 215
BT40-SFA10-95-M42 10 13 95 42 26 17.4 25 30 130
BT40-SFA10-120-M67 10 13 120 67 26 20 36 30 155
BT40-SFA10-125-M42 10 13 125 42 56 17.4 36 30 160
BT40-SFA10-150-M67 10 13 150 67 56 20 36 30 185
BT40-SFA10-150-M97 10 13 150 97 26 23.2 36 30 185
BT40-SFA10-180-M97 10 13 180 97 56 23.2 36 30 215
BT40-SFA10-95-M42 12 15 95 42 26 19.4 32 30 130
BT40-SFA10-120-M67 12 16 120 67 26 22 32 30 155
BT40-SFA10-125-M42 12 17 125 42 56 19.4 36 30 160
BT40-SFA10-150-M67 12 18 150 67 56 22 36 30 185
BT40-SFA10-150-M97 12 19 150 97 26 25.2 36 30 185
BT40-SFA10-180-M97 12 22 180 97 56 25.2 36 30 215
BT40-SFA4-155-M42 4 7 155 42 33 53 11.4 26 40 12 190
BT40-SFA4-180-M67 4 7 180 67 33 53 14 26 40 12 215
BT40-SFA4-210-M97 4 7 210 97 33 53 17.2 25 39 12 245
BT40-SFA6-155-M42 6 9 155 42 33 53 13.4 25 39 18 190
BT40-SFA6-180-M67 6 9 180 67 33 53 16 26 40 18 215
BT40-SFA6-210-M97 6 9 210 97 28 58 19.2 36 50 18 245
BT40-SFA8-155-M42 8 11 155 42 33 53 15.4 25 39 24 190
BT40-SFA8-180-M67 8 11 180 67 28 58 18 36 50 24 215
BT40-SFA8-210-M97 8 11 210 97 28 58 21.2 36 50 24 245
BT40-SFA10-155-M42 10 13 155 42 28 58 17.4 36 50 30 190
BT40-SFA10-180-M67 10 13 180 67 28 28 20 36 50 30 215
BT40-SFA10-210-M97 10 13 210 97 28 58 23.2 36 50 30 245
BT40-SFA10-155-M42 12 20 155 42 28 58 19.4 36 50 30 190
BT40-SFA10-180-M67 12 21 180 67 30 56 22 32 46 30 215
BT40-SFA10-210-M97 12 23 210 97 28 58 25.2 36 50 30 245
BT40-SFA16-180-M127 16 24 180 127 26 37.3 50 32 96
BT40-SFA16-210-M97 16 24 210 97 86 34.2 50 32 96
BT40-SFA16-210-M127 16 24 210 127 56 37.3 50 32 96
BT40-SFA16-210-M157 16 24 210 157 26 40.5 50 32 96

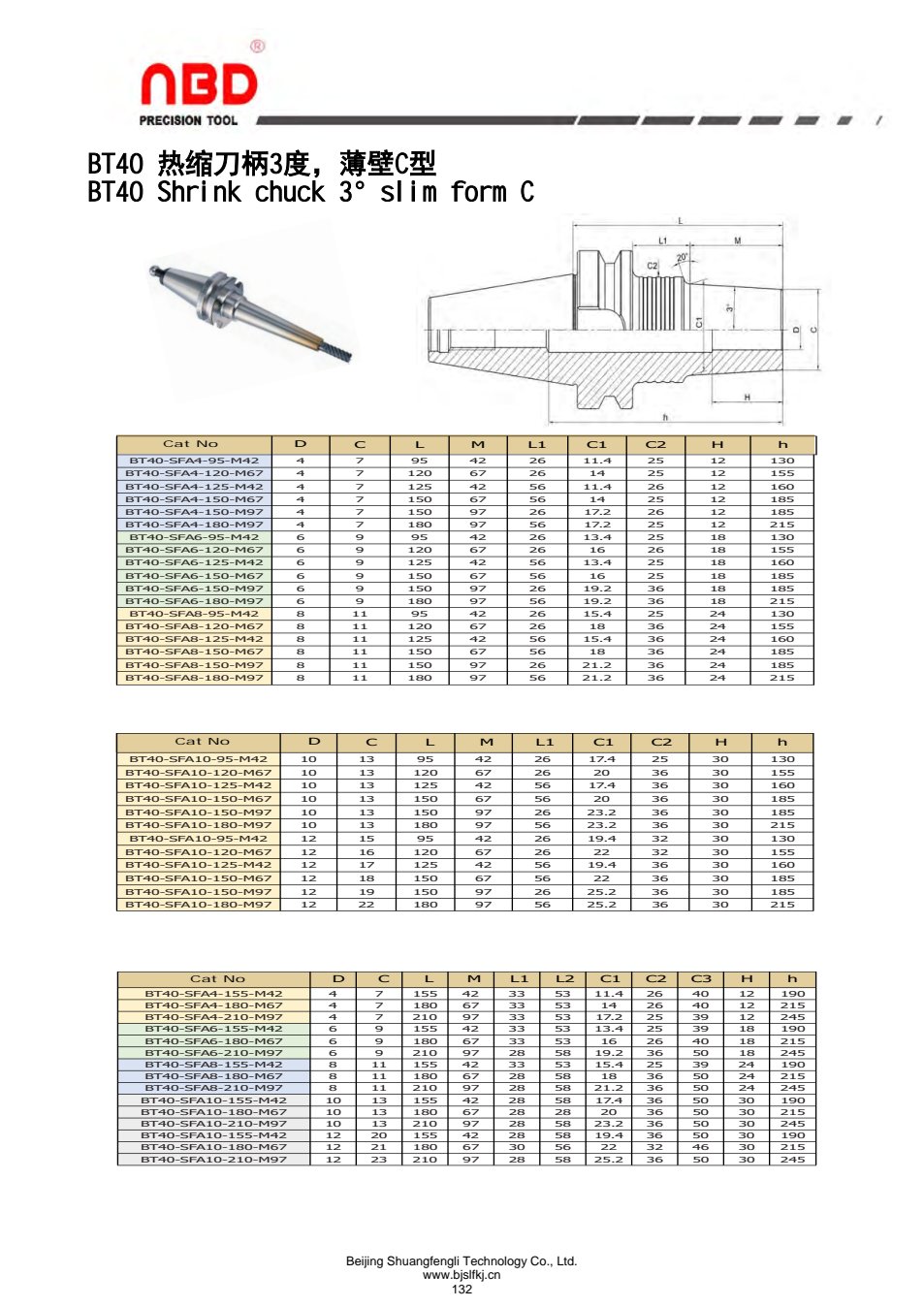

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.

NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.

Additional information

Series

BT40
