BT30/BT40/BBT40 — BT30/BT40/BBT40
BT30/BT40/BBT40（BT30/BT40/BBT40）— NBD 铣削刀具刀柄 series. 50 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The BT30/BT40/BBT40（BT30/BT40/BBT40）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
BT30/BT40/BBT40 High precision hydraulic mill chuck BT30/BT40/BBT40 High precision hydraulic mill chuck
Specification
| 型号 | ||||||||
| BT30-HDC03-60L | 3 | 21 | 45 | 60 | 29 | 23 | 84 | - |
| BT30-HDC04-60L | 4 | 21 | 45 | 60 | 29 | 23 | 84 | - |
| BT30-HDC06-75L | 6 | 30 | 46 | 75 | 24 | 28 | 50 | M5- |
| BT30-HDC08-75L | 8 | 32 | 46 | 75 | 24 | 28 | 50 | M6- |
| BT30-HDC10-75L | 10 | 34 | 46 | 75 | 24 | 34 | 50 | M8- |
| BT30-HDC12-75L | 12 | 36 | 46 | 75 | 25 | 36 | 50 | M8- |
| BT30-HDC14-90L | 14 | 38 | 46 | 90 | 40 | 41 | 52 | M8- |
| BT30-HDC16-90L | 16 | 40 | 46 | 90 | 33 | 41 | 52 | M8- |
| BT30-HDC18-90L | 18 | 42 | 46 | 90 | 41 | 41 | 52 | M8- |
| BT30-HDC20-90L | 20 | 46 | 46 | 90 | -- | 41 | 52 | M8- |
| BT40-HDC04-90L | 4 | 28 | 46 | 90 | 38 | 24 | 42 | - |
| BT40-HDC06-90L | 6 | 30 | 46 | 90 | 38 | 28 | 44 | M5- |
| BT40-HDC08-90L | 8 | 32 | 48 | 90 | 38 | 28 | 44 | M6- |
| BT40-HDC10-90L | 10 | 36 | 52 | 90 | 40 | 37 | 51 | M8- |
| BT40-HDC12-90L | 12 | 38 | 54 | 90 | 40 | 37 | 51 | M8- |
| BT40-HDC14-90L | 14 | 40 | 56 | 90 | 40 | 41 | 52 | M12- |
| BT40-HDC16-90L | 16 | 42 | 58 | 90 | 40 | 41 | 52 | M12- |
| BT40-HDC18-90L | 18 | 43 | 59 | 90 | 40 | 41 | 52 | M12- |
| BT40-HDC20-90L | 20 | 46 | 60 | 90 | 40 | 41 | 53 | M12- |
| BT40-HDC25-105L | 25 | 52 | 62 | 105 | 55 | 49 | 65 | M12- |
| BT40-HDC32-105L | 32 | 63 | -- | 105 | -- | 52 | 65 | M12- |
| BBT40-HDC04-90L | 4 | 28 | 46 | 90 | 38 | 24 | 42 | - |
| BBT40-HDC06-90L | 6 | 30 | 46 | 90 | 38 | 28 | 44 | M5- |
| BBT40-HDC08-90L | 8 | 32 | 48 | 90 | 38 | 28 | 44 | M6- |
| BBT40-HDC10-90L | 10 | 36 | 52 | 90 | 40 | 37 | 51 | M8- |
| BBT40-HDC12-90L | 12 | 38 | 54 | 90 | 40 | 37 | 51 | M8- |
| BBT40-HDC14-90L | 14 | 40 | 56 | 90 | 40 | 41 | 52 | M12- |
| BBT40-HDC16-90L | 16 | 42 | 58 | 90 | 40 | 41 | 52 | M12- |
| BBT40-HDC18-90L | 18 | 43 | 59 | 90 | 40 | 41 | 52 | M12- |
| BBT40-HDC20-90L | 20 | 46 | 60 | 90 | 40 | 41 | 53 | M12- |
| BBT40-HDC25-90L | 25 | 52 | 62 | 105 | 55 | 49 | 65 | M12- |
| BBT40-HDC32-105L | 32 | 63 | -- | 105 | -- | 52 | 65 | M12- |
| 型号 | ||||||||
| BT30-HDC03-60L | 3 | 21 | 45 | 60 | 29 | 23 | 84 | - |
| BT30-HDC04-60L | 4 | 21 | 45 | 60 | 29 | 23 | 84 | - |
| BT30-HDC06-75L | 6 | 30 | 46 | 75 | 24 | 28 | 50 | M5- |
| BT30-HDC08-75L | 8 | 32 | 46 | 75 | 24 | 28 | 50 | M6- |
| BT30-HDC10-75L | 10 | 34 | 46 | 75 | 24 | 34 | 50 | M8- |
| BT30-HDC12-75L | 12 | 36 | 46 | 75 | 25 | 36 | 50 | M8- |
| BT30-HDC14-90L | 14 | 38 | 46 | 90 | 40 | 41 | 52 | M8- |
| BT30-HDC16-90L | 16 | 40 | 46 | 90 | 33 | 41 | 52 | M8- |
| BT30-HDC18-90L | 18 | 42 | 46 | 90 | 41 | 41 | 52 | M8- |
| BT30-HDC20-90L | 20 | 46 | 46 | 90 | -- | 41 | 52 | M8- |
| BT40-HDC04-90L | 4 | 28 | 46 | 90 | 38 | 24 | 42 | - |
| BT40-HDC06-90L | 6 | 30 | 46 | 90 | 38 | 28 | 44 | M5- |
| BT40-HDC08-90L | 8 | 32 | 48 | 90 | 38 | 28 | 44 | M6- |
| BT40-HDC10-90L | 10 | 36 | 52 | 90 | 40 | 37 | 51 | M8- |
| BT40-HDC12-90L | 12 | 38 | 54 | 90 | 40 | 37 | 51 | M8- |
| BT40-HDC14-90L | 14 | 40 | 56 | 90 | 40 | 41 | 52 | M12- |

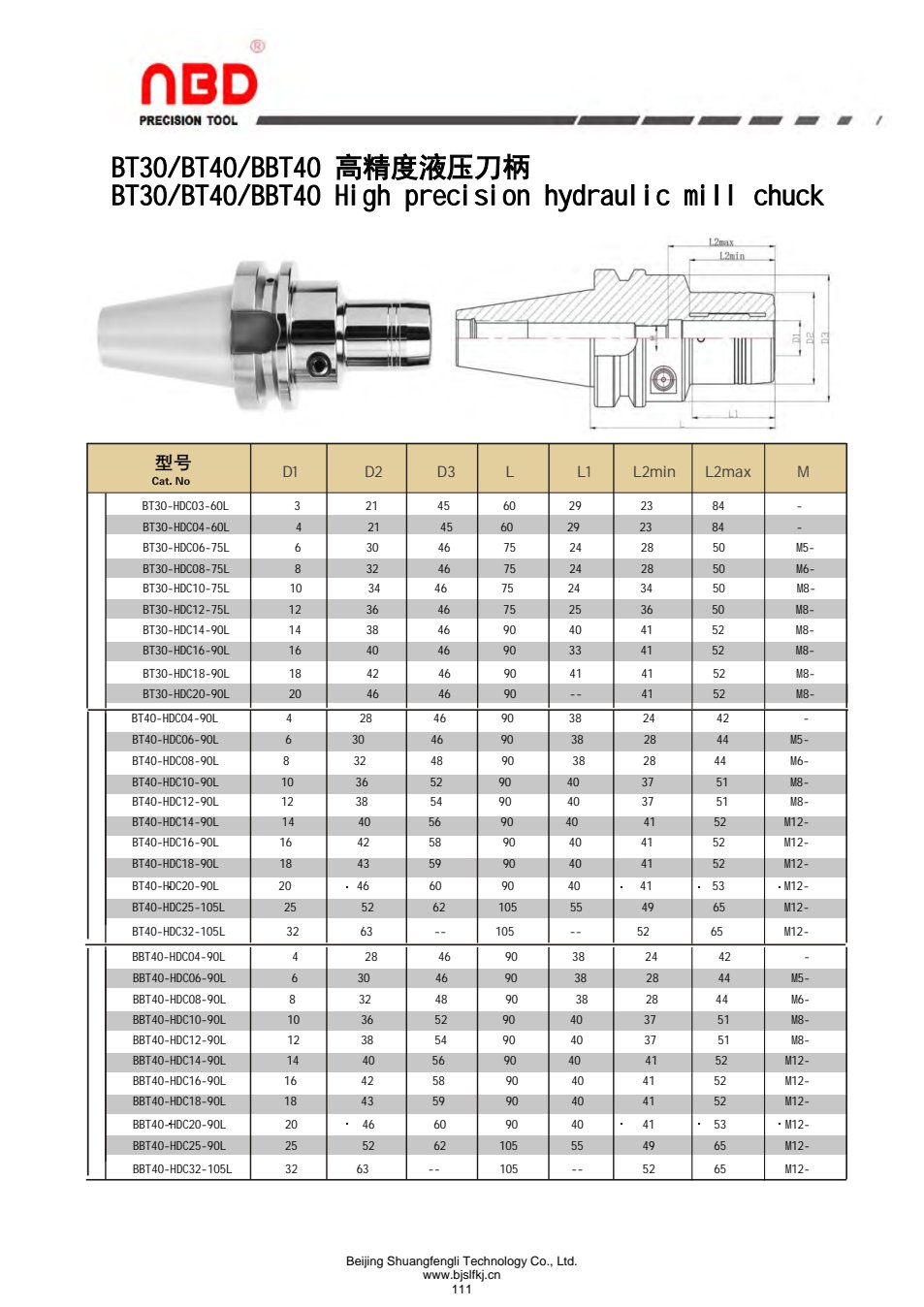

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
