CAT-TER-A Rigid Tension-Comp Tapping Holder M3-M20
Tapping chuck/holder M3-M10 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 7 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The CAT-TER-A Rigid Tension-Comp Tapping Holder M3-M20 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M3-M10 with 7 catalogue models.
Model Naming
Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.
Specification

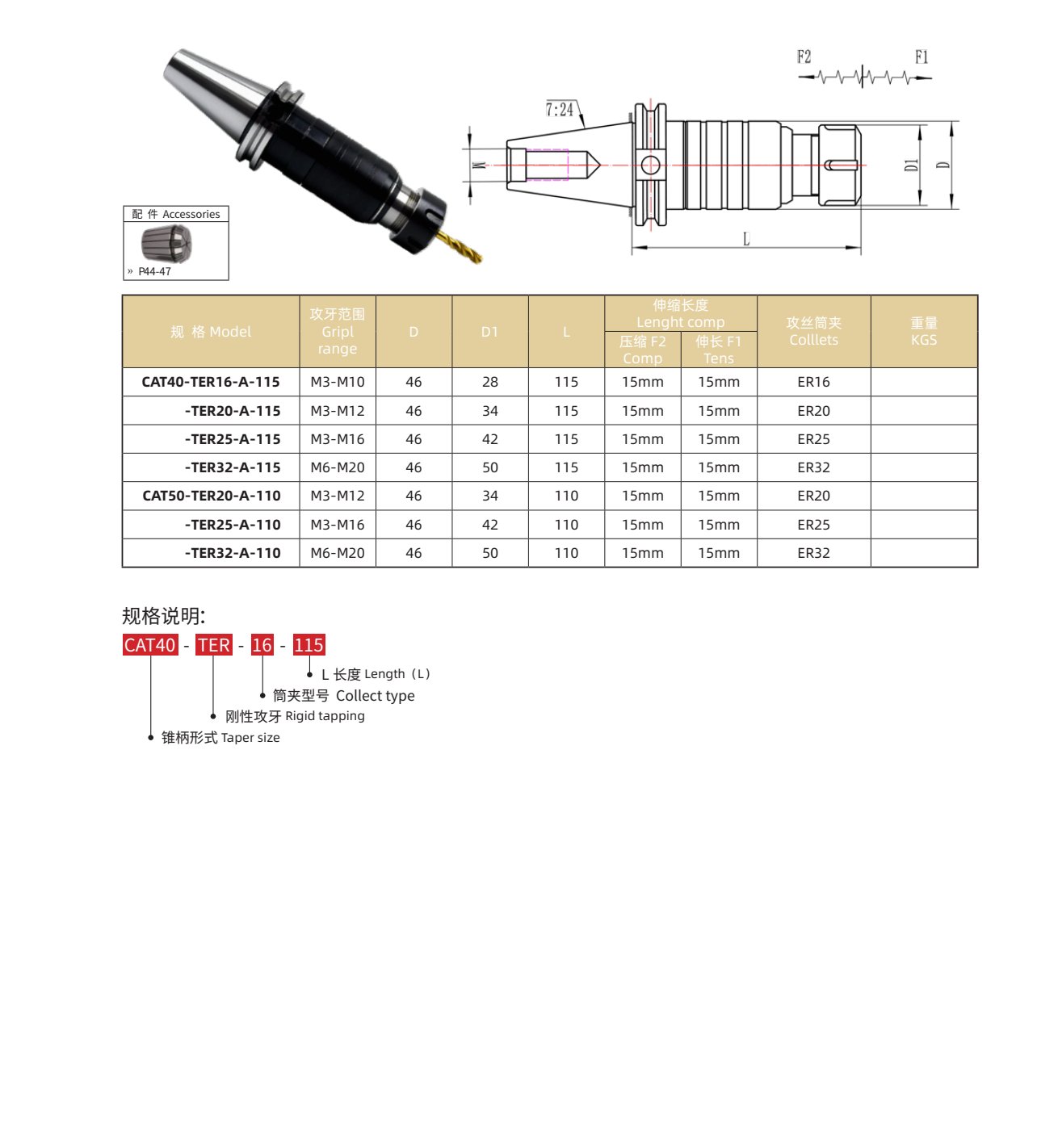

| Model | Spec | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|---|
| CAT40-TER16-A-115 | M3-M10 | 46 | 28 | 115 | 15mm | 15mm | ER16 |
| CAT40-TER20-A-115 | M3-M12 | 46 | 34 | 115 | 15mm | 15mm | ER20 |
| CAT40-TER25-A-115 | M3-M16 | 46 | 42 | 115 | 15mm | 15mm | ER25 |
| CAT40-TER32-A-115 | M6-M20 | 46 | 50 | 115 | 15mm | 15mm | ER32 |
| CAT50-TER20-A-110 | M3-M12 | 46 | 34 | 110 | 15mm | 15mm | ER20 |
| CAT50-TER25-A-110 | M3-M16 | 46 | 42 | 110 | 15mm | 15mm | ER25 |
| CAT50-TER32-A-110 | M6-M20 | 46 | 50 | 110 | 15mm | 15mm | ER32 |
All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Interface / Taper | CAT40, CAT50 |
|---|---|
| Tapping Range | M3-M10 |
