C-GT Straight Shank Tension-Compression Tapping Chuck M3-M30

Tapping chuck/holder M3-M16 for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. 7 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: C16-GT12-110 Category: Tags: , ,

Description

The C-GT Straight Shank Tension-Compression Tapping Chuck M3-M30 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. Tapping range M3-M16 with 7 catalogue models.

Features

  • Torque overload protection protects screw blank from
  • Have floating, quick change and torque protection
  • Used on drill machines, tapping machines, borers, lathes
  • Tapping range: M3-M30.

Model Naming

Model = Shank size (e.g. BT30) + GT (tension-compression function code) + collet size (GT12/GT24/GT42 = tapping range M16/M30/M42 max) + L1 length.

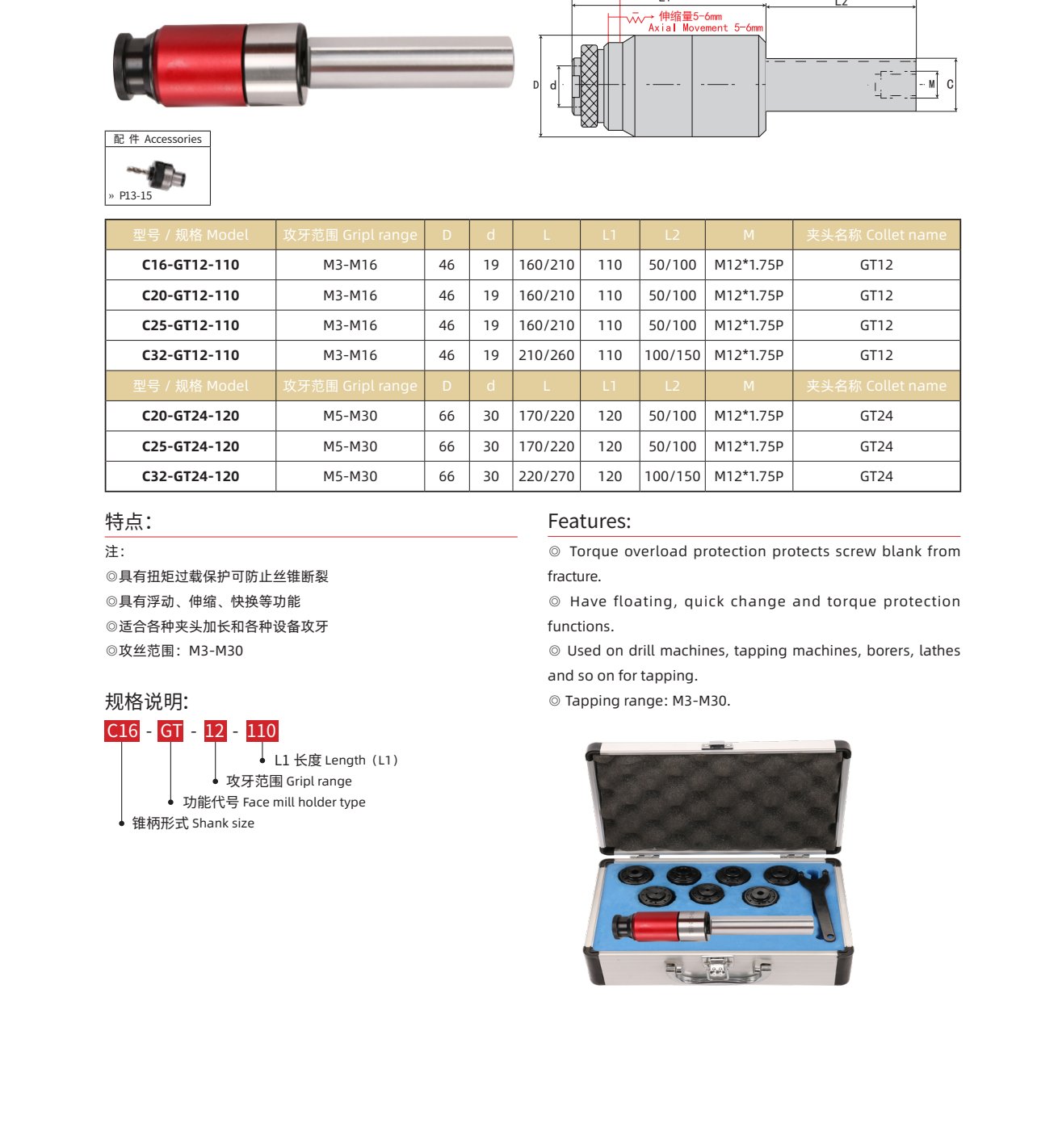

Specification

Model Spec Dimensions (mm)
C16-GT12-110 M3-M16 46 19 160/210 110 50/100 M12*1.75P GT12
C20-GT12-110 M3-M16 46 19 160/210 110 50/100 M12*1.75P GT12
C25-GT12-110 M3-M16 46 19 160/210 110 50/100 M12*1.75P GT12
C32-GT12-110 M3-M16 46 19 210/260 110 100/150 M12*1.75P GT12
C20-GT24-120 M5-M30 66 30 170/220 120 50/100 M12*1.75P GT24
C25-GT24-120 M5-M30 66 30 170/220 120 50/100 M12*1.75P GT24
C32-GT24-120 M5-M30 66 30 220/270 120 100/150 M12*1.75P GT24

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

C16, C20, C25, C32
Tapping Range

M3-M16
