Ultra-Thin Hollow Rotary Cylinder, Pressure-Maintaining (TK-N) — TK-N 超薄型中空回转油缸（保压）
TK-N 超薄型中空回转油缸（保压）（Ultra-Thin Hollow Rotary Cylinder, Pressure-Maintaining (TK-N)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Ultra-Thin Hollow Rotary Cylinder, Pressure-Maintaining (TK-N)（TK-N 超薄型中空回转油缸（保压））is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

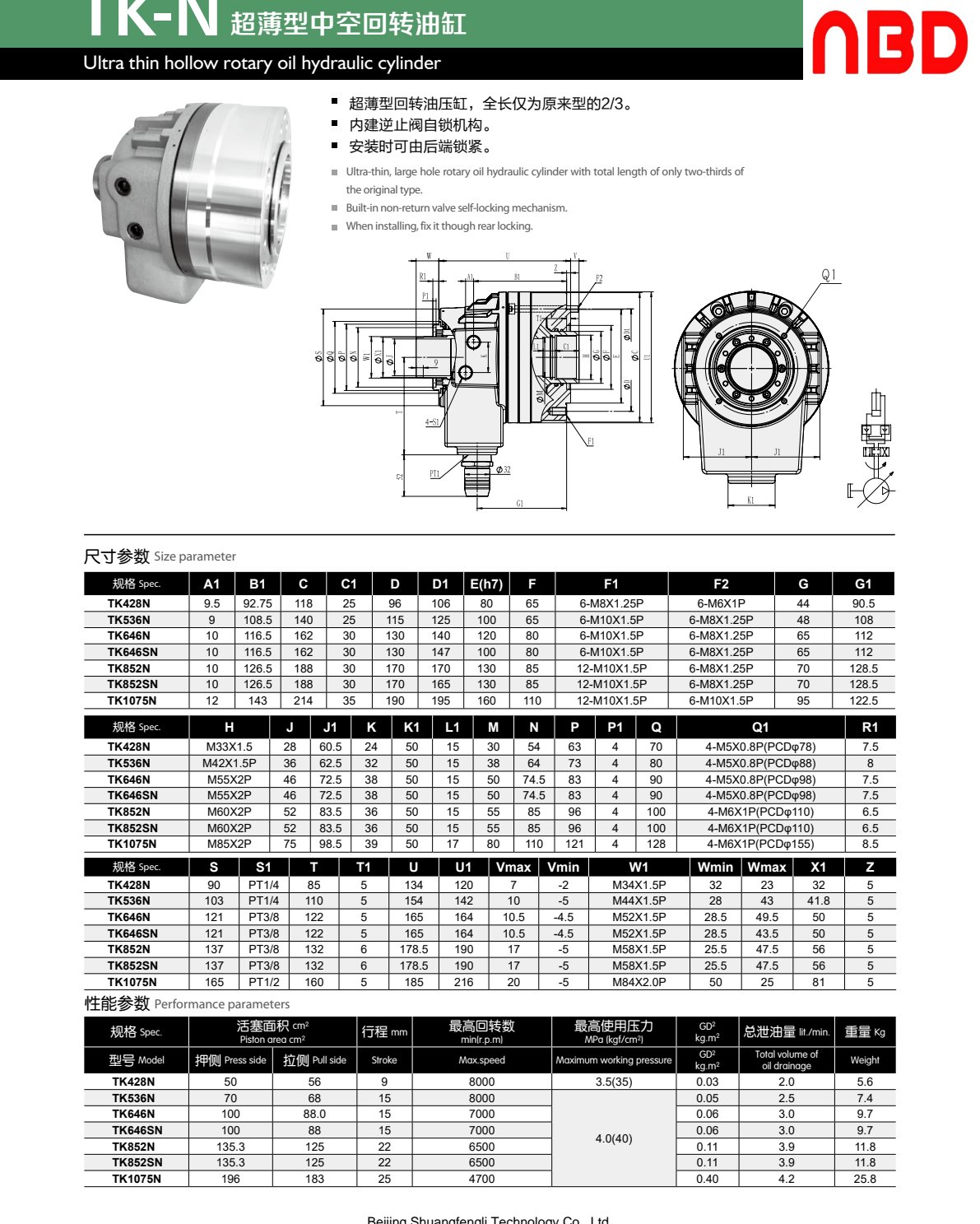

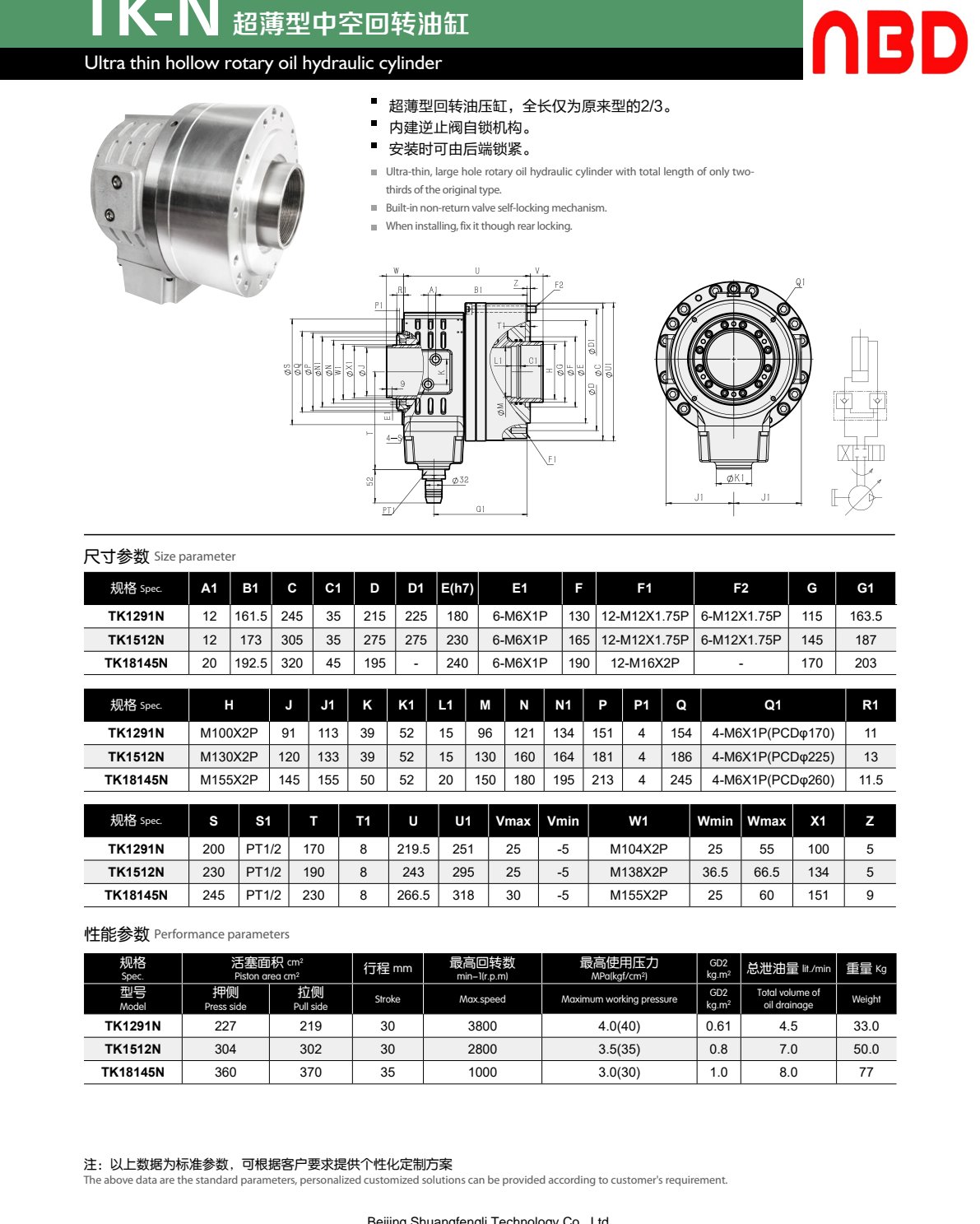

Ultra thin hollow rotary oil hydraulic cylinder Ultra-thin, large hole rotary oil hydraulic cylinder with total length of only two-thirds of Built-in non-return valve self-locking mechanism. When installing, fix it though rear locking. Ultra-thin, large hole rotary oil hydraulic cylinder with total length of only twothirds of the original type. Piston area cm2 行程 mm 最高回转数
| 型号 Model 押侧 Press side 拉侧 Pull side Stroke Max.speed Maximum working pressure GD2 |
|---|
| TK428N 50 56 9 8000 3.5(35) 0.03 2.0 5.6 |
| TK536N 70 68 15 8000 |
| 0.05 2.5 7.4 |
| TK646N 100 88.0 15 7000 0.06 3.0 9.7 |
| TK646SN 100 88 15 7000 0.06 3.0 9.7 |
| TK852N 135.3 125 22 6500 0.11 3.9 11.8 |
| TK852SN 135.3 125 22 6500 0.11 3.9 11.8 |
| TK1075N 196 183 25 4700 0.40 4.2 25.8 |
| 71 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
