Extension Slim — 延长杆
Extension Slim（延长杆）— NBD 铣削刀具刀柄 series. 11 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Extension Slim（延长杆）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Shrink chuck extension slim
Specification
| HSK-E | Shrink | fit | chuck | 3° | |||||||
| HSK32E-SFS3-64 | 3 | 9 | 13 | 64 | 40 | 20 | 5 | M6 | |||
| HSK32E-SFS4-64 | 4 | 10 | 14 | 64 | 40 | 20 | 5 | M6 | |||
| HSK32E-SFS6-74 | 6 | 12 | 17 | 74 | 50 | 36 | 5 | M5 | |||
| HSK32E-SFS8-74 | 8 | 14 | 19 | 74 | 50 | 36 | 5 | M6 | |||
| HSK32E-SFS10-78 | 10 | 16 | 21 | 78 | 55 | 42 | 5 | M8x1 | |||
| HSK40E-SFS3-50 | 3 | 9 | 12 | 50 | 24 | 20 | 5 | M6 | |||
| HSK40E-SFS4-50 | 4 | 10 | 12,5 | 50 | 24 | 20 | 5 | M6 | |||
| HSK40E-SFS6-50 | 6 | 12 | 15 | 50 | 24 | 34 | – | – | HSK40E-SFS6-60 | 6 | 12 |
| C12-SFS03-120 | 3 | 9 | 11.8 | 12 | 120 | - | 73 | - | - | C12-SFS04-120 | 4 |
| C20-SFS05-160 | 5 | 11 | 15 | 20 | 160 | - | 110 | - | - | C20-SFS06-160 | 6 |

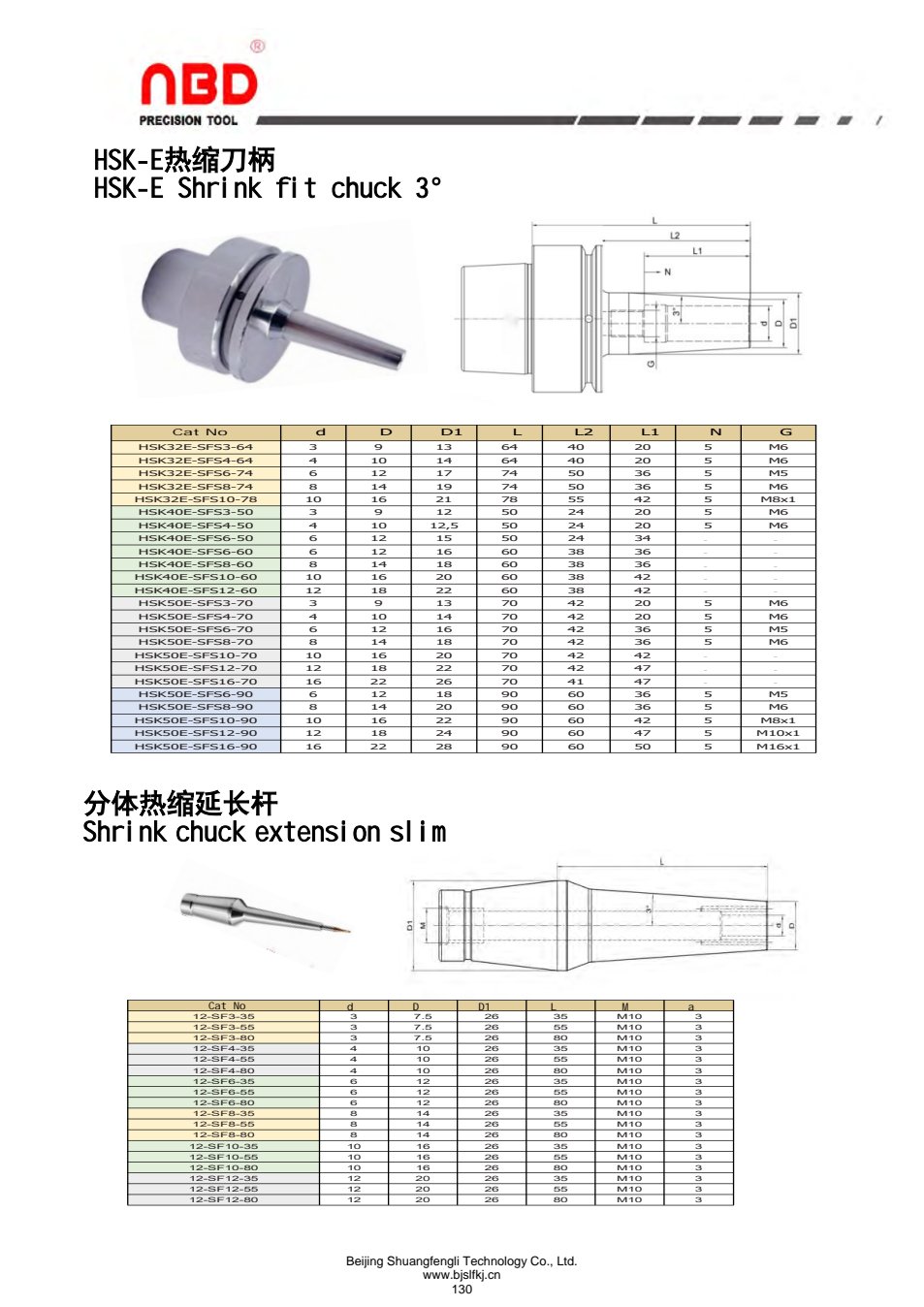

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | HSK32E |
|---|
