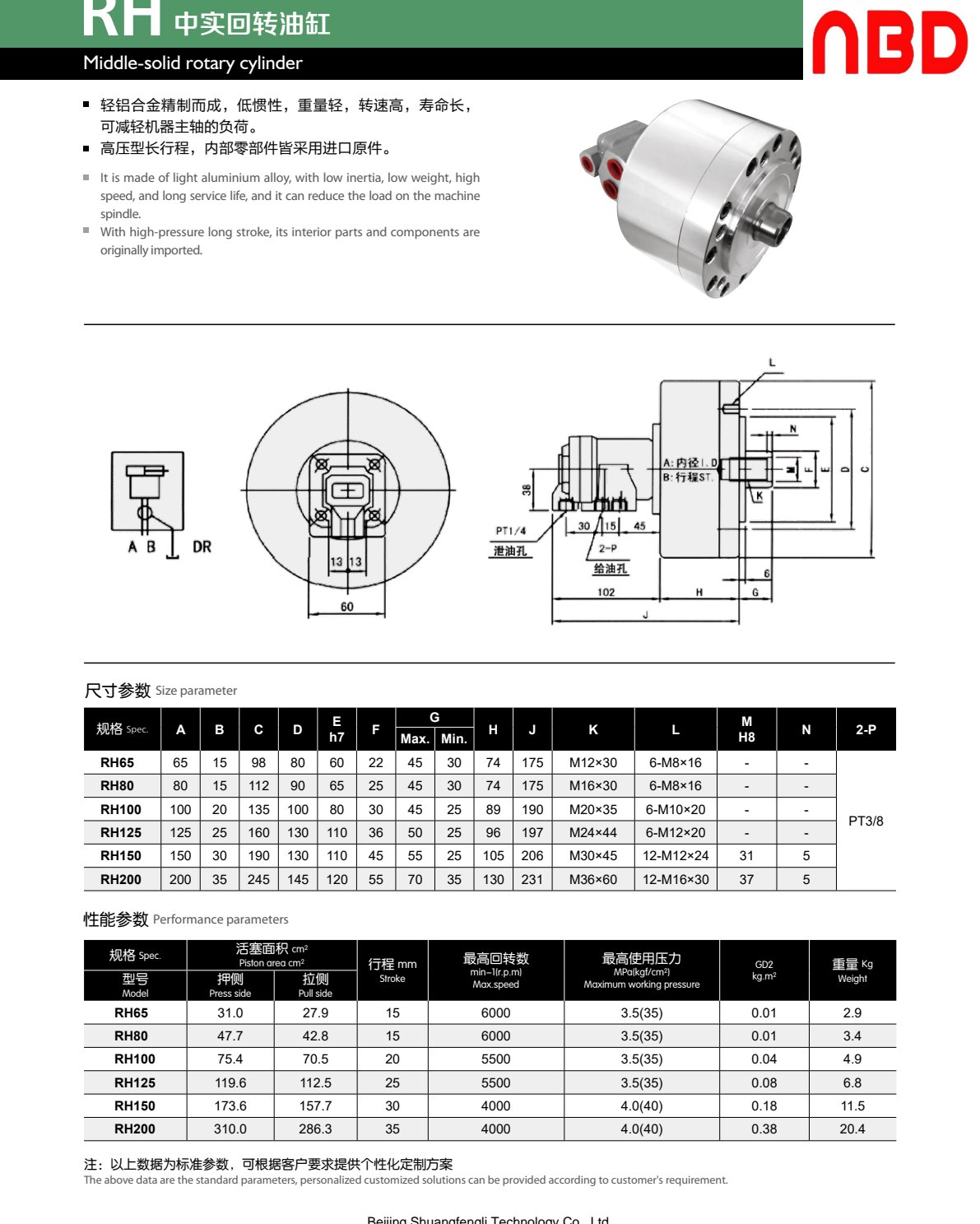

Middle-Solid Rotary Hydraulic Cylinder (RH) — RH 中实回转油缸
RH 中实回转油缸（Middle-Solid Rotary Hydraulic Cylinder (RH)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Middle-Solid Rotary Hydraulic Cylinder (RH)（RH 中实回转油缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
It is made of light aluminium alloy, with low inertia, low weight, high speed, and long service life, and it can reduce the load on the machine With high-pressure long stroke, its interior parts and components are originally imported. Middle-solid rotary cylinder Beijing Shuangfengli Technology Co., Ltd.
| 规格 Spec. 活塞面积 cm2 |
|---|
| RH65 31.0 27.9 15 6000 3.5(35) 0.01 2.9 |
| RH80 47.7 42.8 15 6000 3.5(35) 0.01 3.4 |
| RH100 75.4 70.5 20 5500 3.5(35) 0.04 4.9 |
| RH125 119.6 112.5 25 5500 3.5(35) 0.08 6.8 |
| RH150 173.6 157.7 30 4000 4.0(40) 0.18 11.5 |
| RH200 310.0 286.3 35 4000 4.0(40) 0.38 20.4 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
