GT12 Overload Protection Tap Collet M3-M16 (ISO/JIS/INCH)

Tapping chuck/holder M3-M16 for quick-change tap holding with overload protection. 18 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: ISO-GT12-M3 Category: Tags: ,

Description

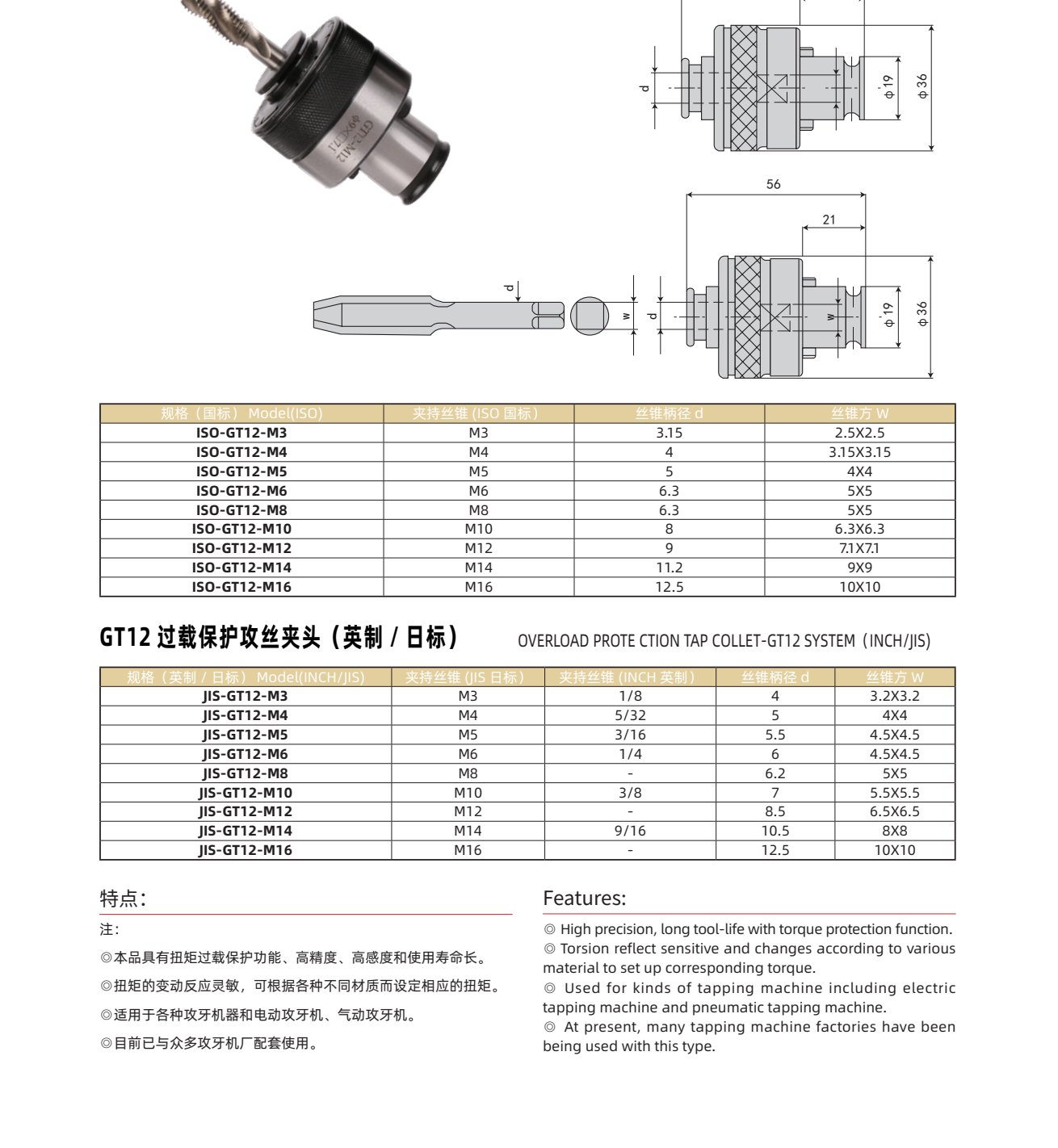

The GT12 Overload Protection Tap Collet M3-M16 (ISO/JIS/INCH) is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for quick-change tap holding with overload protection. Tapping range M3-M16 with 18 catalogue models.

Features

  • High precision, long tool-life with torque protection function.
  • Torsion reflect sensitive and changes according to various
  • Used for kinds of tapping machine including electric
  • At present, many tapping machine factories have been

Model Naming

Model = Standard prefix (ISO/JIS) + collet size (GT12/GT24/GT42 or TC312/TC820/TC1433) + tap size (e.g. M12); d = tap shank dia., W = tap square.

Specification

Model Spec Dimensions (mm)
ISO-GT12-M3 M3 3.15 2.5X2.5
ISO-GT12-M4 M4 4 3.15X3.15
ISO-GT12-M5 M5 5 4X4
ISO-GT12-M6 M6 6.3 5X5
ISO-GT12-M8 M8 6.3 5X5
ISO-GT12-M10 M10 8 6.3X6.3
ISO-GT12-M12 M12 9 7.1X7.1
ISO-GT12-M14 M14 11.2 9X9
ISO-GT12-M16 M16 12.5 10X10
JIS-GT12-M3 M3 1/8 4 3.2X3.2
JIS-GT12-M4 M4 5/32 5 4X4
JIS-GT12-M5 M5 3/16 5.5 4.5X4.5
JIS-GT12-M6 M6 1/4 6 4.5X4.5
JIS-GT12-M8 M8 - 6.2 5X5
JIS-GT12-M10 M10 3/8 7 5.5X5.5
JIS-GT12-M12 M12 - 8.5 6.5X6.5
JIS-GT12-M14 M14 9/16 10.5 8X8
JIS-GT12-M16 M16 - 12.5 10X10

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

Additional information

Interface / Taper

—
Tapping Range

M3-M16
