MTA-GT Morse Taper (Tongue) Tapping Chuck M3-M42

Tapping chuck/holder M3-M16 for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. 11 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: MTA2-GT12-110 Category: Tags: , , ,

Description

The MTA-GT Morse Taper (Tongue) Tapping Chuck M3-M42 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. Tapping range M3-M16 with 11 catalogue models.

Features

  • Spindle conicity standard: MORSE TAPER(Tongue Type)
  • Torque overload protection protects screw blank from
  • Have floating, quick change and torque protection
  • Used on drill machines, tapping machines, borers, lathes
  • Tapping range: M3-M42.

Model Naming

Model = Shank size (e.g. BT30) + GT (tension-compression function code) + collet size (GT12/GT24/GT42 = tapping range M16/M30/M42 max) + L1 length.

Specification

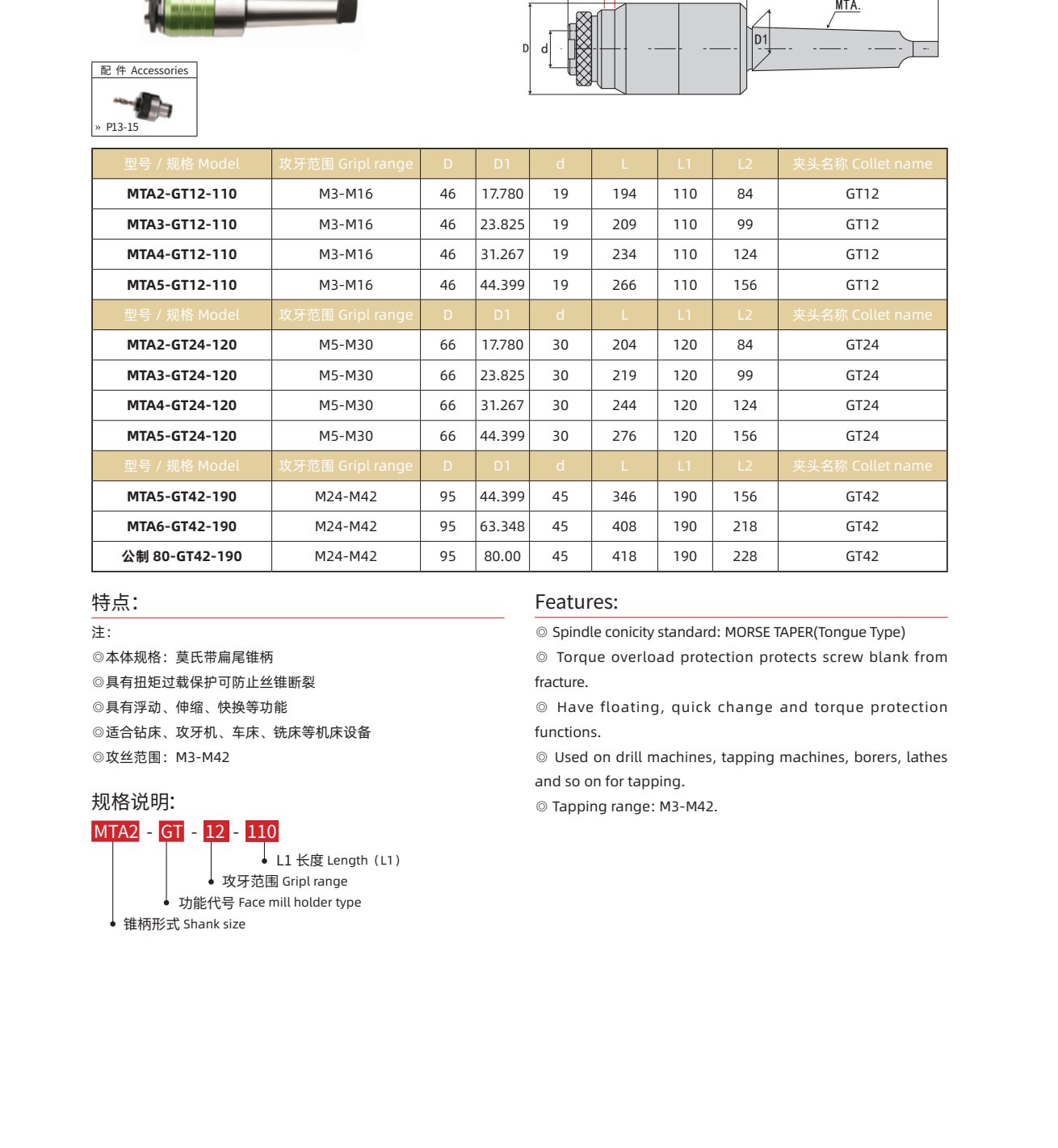

Model Spec Dimensions (mm)
MTA2-GT12-110 M3-M16 46 17.780 19 194 110 84 GT12
MTA3-GT12-110 M3-M16 46 23.825 19 209 110 99 GT12
MTA4-GT12-110 M3-M16 46 31.267 19 234 110 124 GT12
MTA5-GT12-110 M3-M16 46 44.399 19 266 110 156 GT12
MTA2-GT24-120 M5-M30 66 17.780 30 204 120 84 GT24
MTA3-GT24-120 M5-M30 66 23.825 30 219 120 99 GT24
MTA4-GT24-120 M5-M30 66 31.267 30 244 120 124 GT24
MTA5-GT24-120 M5-M30 66 44.399 30 276 120 156 GT24
MTA5-GT42-190 M24-M42 95 44.399 45 346 190 156 GT42
MTA6-GT42-190 M24-M42 95 63.348 45 408 190 218 GT42
公制 80-GT42-190 M24-M42 95 80.00 45 418 190 228 GT42

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

MTA2, MTA3, MTA4, MTA5, MTA6, 公制80
Tapping Range

M3-M16
