HSK-A 3° — HSK-A 3°
HSK-A 3°（HSK-A 3°）— NBD 铣削刀具刀柄 series. 34 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The HSK-A 3°（HSK-A 3°）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Specification
| HSK-A | Shrink | fit | chuck | 3° | |||||||
| HSK50A-SFS03-90 | 3 | 9 | 13 | 90 | 64 | - | - | - | HSK50A-SFS04-90 | 4 | 10 |
| HSK63A-SFS04-90 | 4 | 10 | 14 | 90 | 64 | - | - | - | HSK63A-SFS06-90 | 6 | 12 |
| HSK63A-SFS08-90 | 8 | 14 | 20 | 90 | 64 | 36 | 5 | M6 | |||
| HSK63A-SFS10-90 | 10 | 16 | 22 | 90 | 64 | 42 | 5 | M8x1 | |||
| HSK63A-SFS12-90 | 12 | 18 | 24 | 90 | 64 | 47 | 5 | M10x1 | |||
| HSK63A-SFS16-90 | 16 | 22 | 28 | 90 | 64 | 50 | 5 | M12x1 | |||
| HSK63A-SFS04-120 | 4 | 10 | 17 | 120 | 94 | - | - | - | HSK63A-SFS06-120 | 6 | 12 |
| HSK63A-SFS08-120 | 8 | 14 | 23 | 120 | 94 | 36 | 5 | M6 | |||
| HSK63A-SFS10-120 | 10 | 16 | 25 | 120 | 94 | 42 | 5 | M8x1 | |||
| HSK63A-SFS12-120 | 12 | 18 | 27 | 120 | 94 | 47 | 5 | M10x1 | |||
| HSK63A-SFS16-120 | 16 | 22 | 31 | 120 | 94 | 50 | 5 | M12x1 | |||
| HSK63A-SFS03-160 | 3 | 9 | 19 | 160 | 134 | - | - | - | HSK63A-SFS04-160 | 4 | 10 |
| HSK63A-SFS08-160 | 8 | 14 | 26 | 160 | 134 | 36 | 5 | M6 | |||
| HSK63A-SFS10-160 | 10 | 16 | 28 | 160 | 134 | 42 | 5 | M8x1 | |||
| HSK63A-SFS12-160 | 12 | 18 | 30 | 160 | 134 | 47 | 5 | M10x1 | |||
| HSK63A-SFS16-160 | 16 | 22 | 34 | 160 | 134 | 50 | 5 | M12x1 | |||
| HSK-A | Shrink | fit | chuck | 3° | |||||||
| HSK50A-SFS03-90 | 3 | 9 | 13 | 90 | 64 | - | - | - | HSK50A-SFS04-90 | 4 | 10 |
| HSK63A-SFS04-90 | 4 | 10 | 14 | 90 | 64 | - | - | - | HSK63A-SFS06-90 | 6 | 12 |
| HSK63A-SFS08-90 | 8 | 14 | 20 | 90 | 64 | 36 | 5 | M6 | |||
| HSK63A-SFS10-90 | 10 | 16 | 22 | 90 | 64 | 42 | 5 | M8x1 | |||
| HSK63A-SFS12-90 | 12 | 18 | 24 | 90 | 64 | 47 | 5 | M10x1 | |||
| HSK63A-SFS16-90 | 16 | 22 | 28 | 90 | 64 | 50 | 5 | M12x1 | |||
| HSK63A-SFS04-120 | 4 | 10 | 17 | 120 | 94 | - | - | - | HSK63A-SFS06-120 | 6 | 12 |
| HSK63A-SFS08-120 | 8 | 14 | 23 | 120 | 94 | 36 | 5 | M6 | |||
| HSK63A-SFS10-120 | 10 | 16 | 25 | 120 | 94 | 42 | 5 | M8x1 | |||
| HSK63A-SFS12-120 | 12 | 18 | 27 | 120 | 94 | 47 | 5 | M10x1 | |||
| HSK63A-SFS16-120 | 16 | 22 | 31 | 120 | 94 | 50 | 5 | M12x1 | |||
| HSK63A-SFS03-160 | 3 | 9 | 19 | 160 | 134 | - | - | - | HSK63A-SFS04-160 | 4 | 10 |
| HSK63A-SFS08-160 | 8 | 14 | 26 | 160 | 134 | 36 | 5 | M6 | |||
| HSK63A-SFS10-160 | 10 | 16 | 28 | 160 | 134 | 42 | 5 | M8x1 | |||
| HSK63A-SFS12-160 | 12 | 18 | 30 | 160 | 134 | 47 | 5 | M10x1 | |||
| HSK63A-SFS16-160 | 16 | 22 | 34 | 160 | 134 | 50 | 5 | M12x1 |

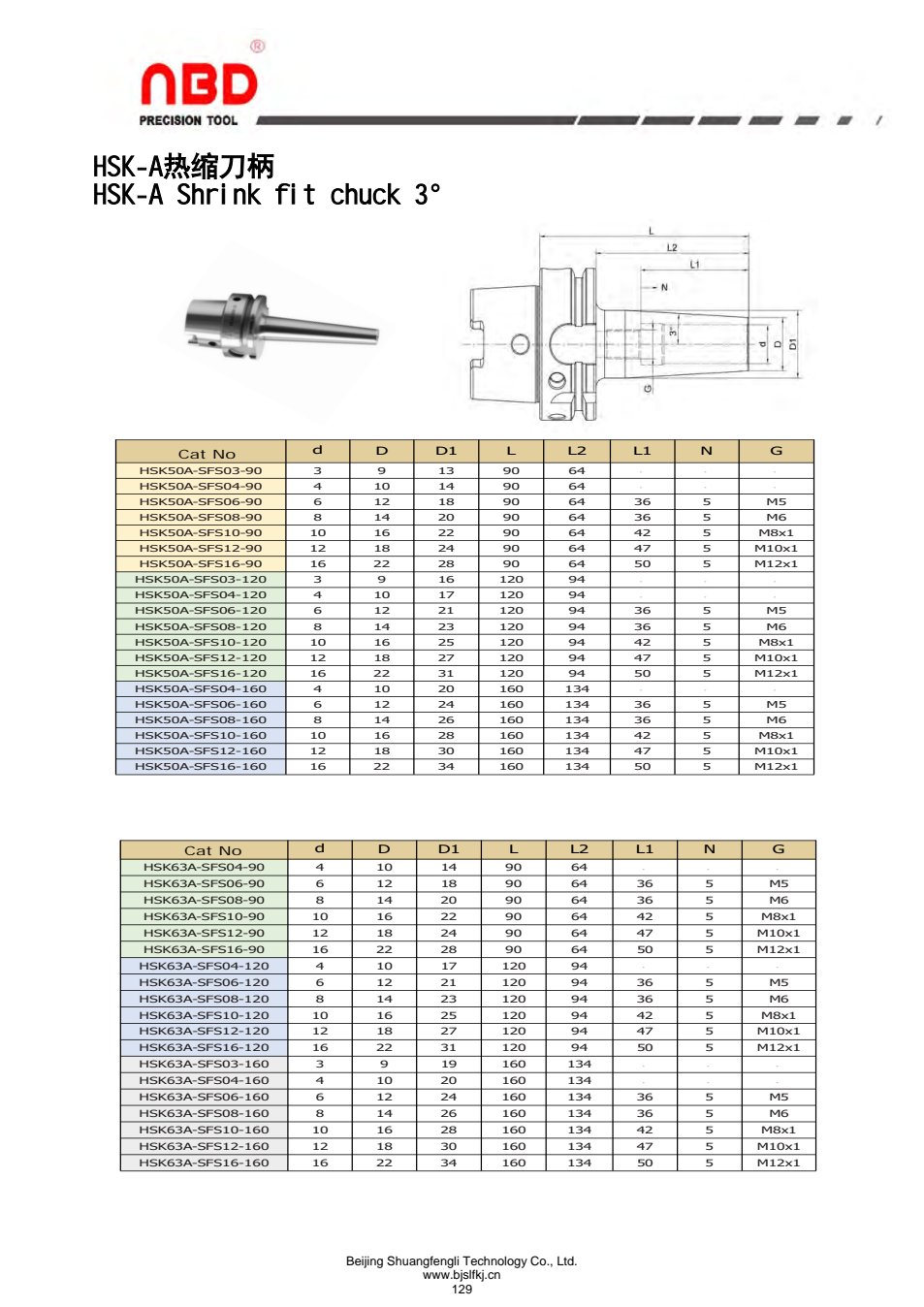

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
