Double-Piston Measuring Rotary Cylinder (RDN) — RDN 双活塞测出型回转油缸
RDN 双活塞测出型回转油缸（Double-Piston Measuring Rotary Cylinder (RDN)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description

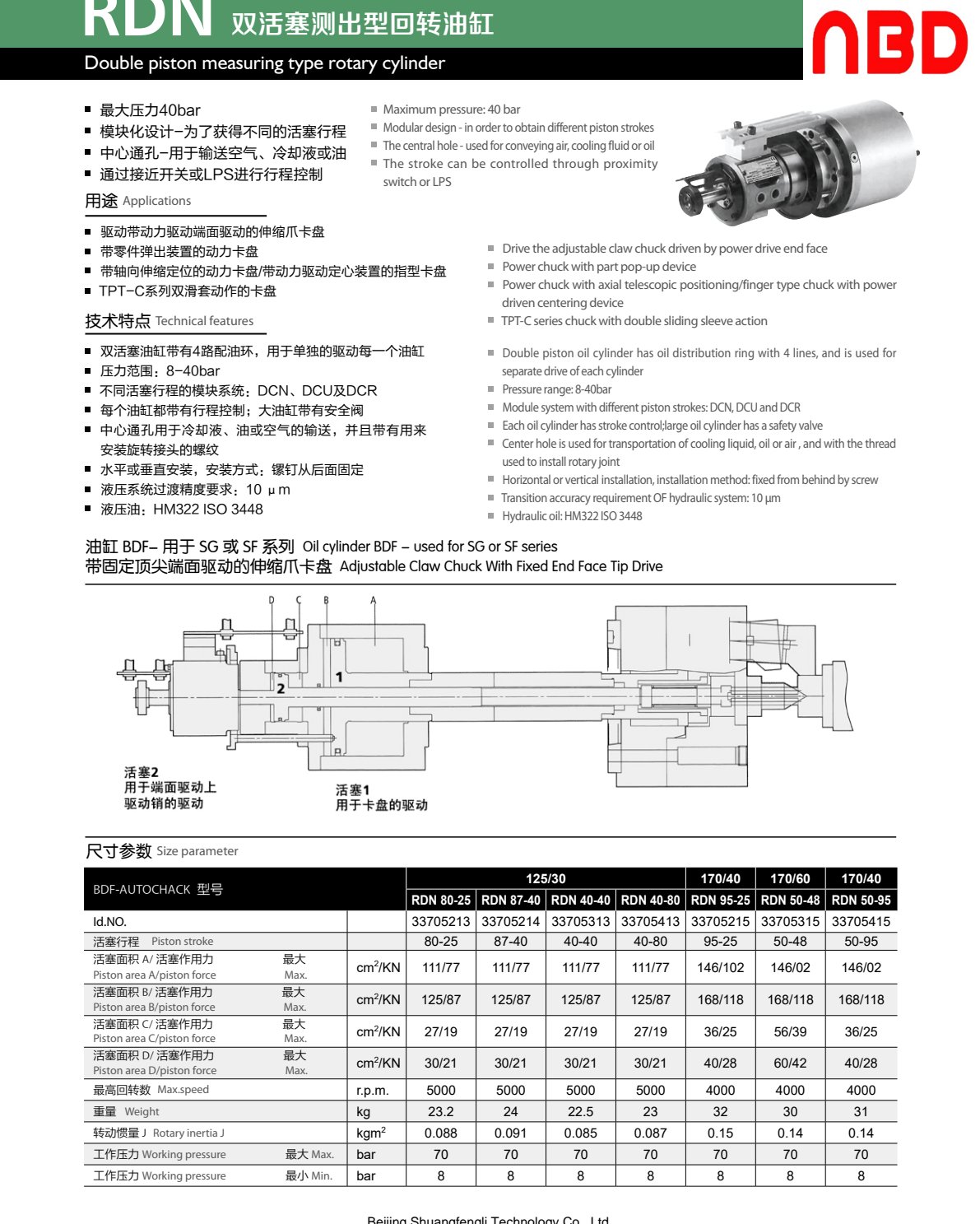

The Double-Piston Measuring Rotary Cylinder (RDN)（RDN 双活塞测出型回转油缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

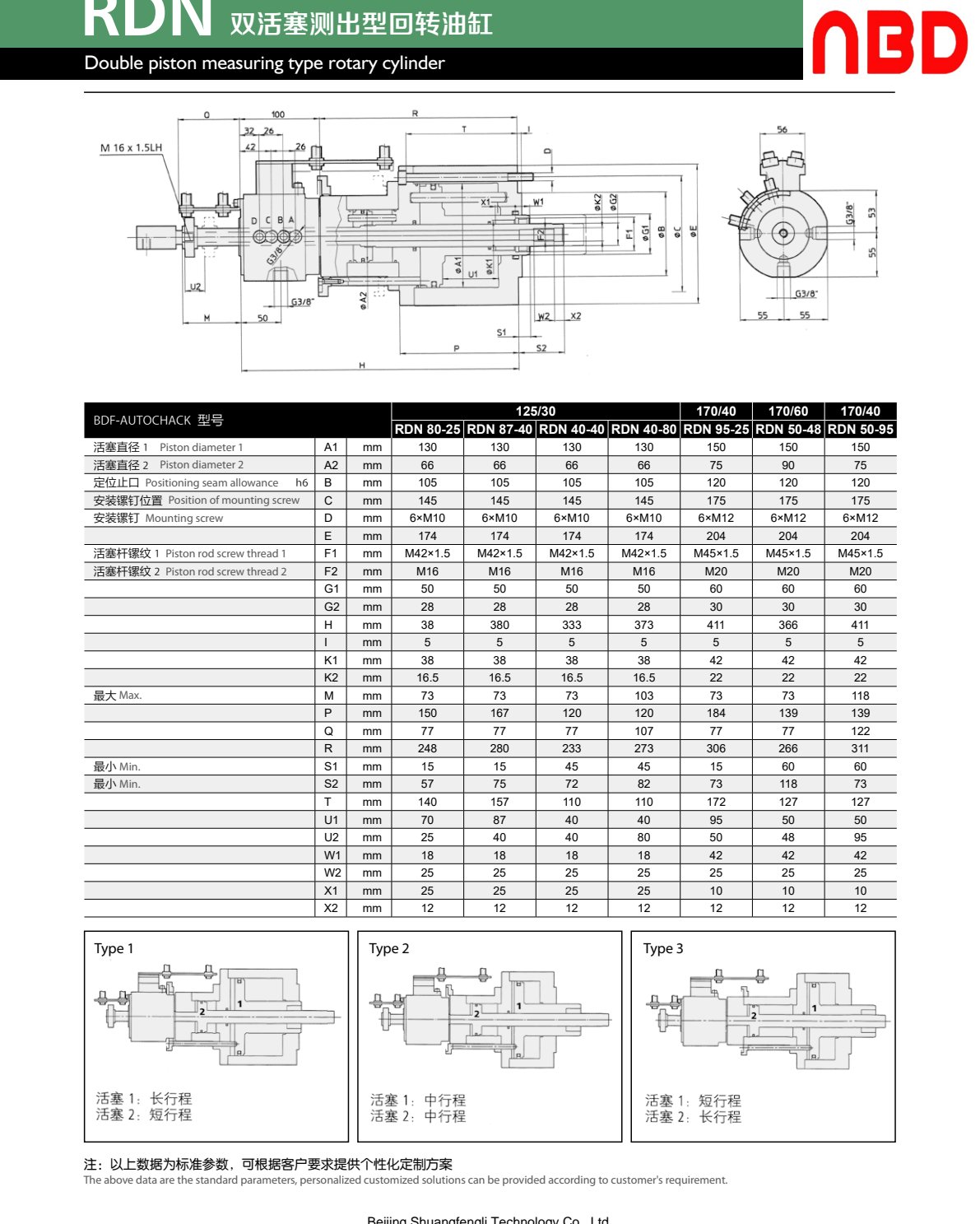

BDF-AUTOCHACK 型号 125/30 170/40 170/60 170/40 活塞行程 Piston stroke 80-25 87-40 40-40 40-80 95-25 50-48 50-95 Piston area A/piston force Max. cm2 Piston area B/piston force Max. cm2 Piston area C/piston force Max. cm2 Piston area D/piston force Max. cm2
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
