HSK-GT Tension-Compression Tapping Chuck M3-M42 (HSK50A/63A/100A)
Tapping chuck/holder M3-M16 for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. 9 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-GT Tension-Compression Tapping Chuck M3-M42 (HSK50A/63A/100A) is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. Tapping range M3-M16 with 9 catalogue models.
Features
- 本体规格：JIS MAS 403 BT
- 适合在 CNC 加工中心、数控铣床等机床设备
- Spindle conicity standard:JIS MAS 403 BT
- Torque overload protection protects screw blank from fracture.
- Have floating, quick change and torque protection functions.
- Used on lathes, borers and private plane machines and so on.
Model Naming
Model = Shank size (e.g. BT30) + GT (tension-compression function code) + collet size (GT12/GT24/GT42 = tapping range M16/M30/M42 max) + L1 length.

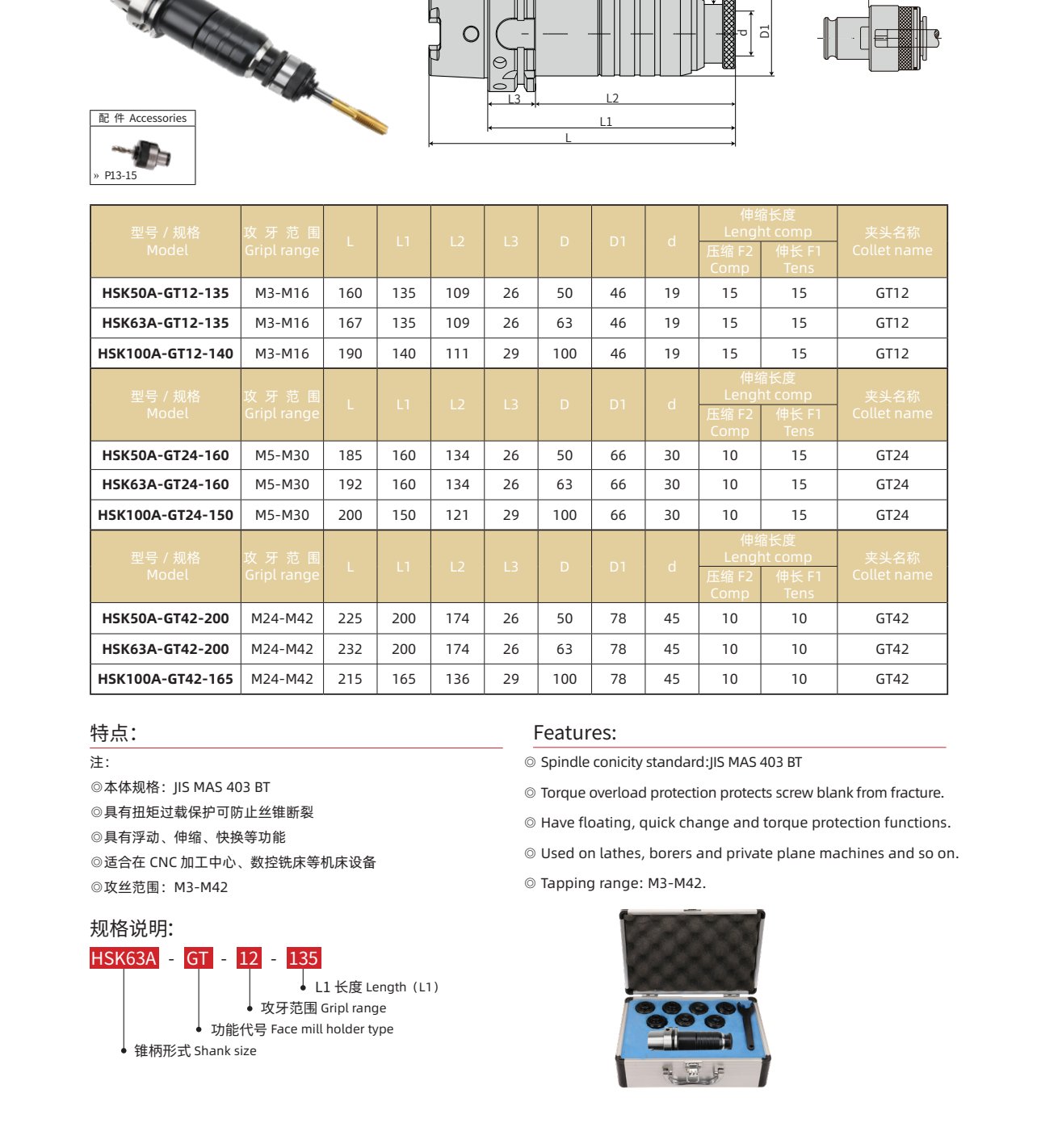

Specification
| Model | Spec | Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK50A-GT12-135 | M3-M16 | 160 | 135 | 109 | 26 | 50 | 46 | 19 | 15 | 15 | GT12 |
| HSK63A-GT12-135 | M3-M16 | 167 | 135 | 109 | 26 | 63 | 46 | 19 | 15 | 15 | GT12 |
| HSK100A-GT12-140 | M3-M16 | 190 | 140 | 111 | 29 | 100 | 46 | 19 | 15 | 15 | GT12 |
| HSK50A-GT24-160 | M5-M30 | 185 | 160 | 134 | 26 | 50 | 66 | 30 | 10 | 15 | GT24 |
| HSK63A-GT24-160 | M5-M30 | 192 | 160 | 134 | 26 | 63 | 66 | 30 | 10 | 15 | GT24 |
| HSK100A-GT24-150 | M5-M30 | 200 | 150 | 121 | 29 | 100 | 66 | 30 | 10 | 15 | GT24 |
| HSK50A-GT42-200 | M24-M42 | 225 | 200 | 174 | 26 | 50 | 78 | 45 | 10 | 10 | GT42 |
| HSK63A-GT42-200 | M24-M42 | 232 | 200 | 174 | 26 | 63 | 78 | 45 | 10 | 10 | GT42 |
| HSK100A-GT42-165 | M24-M42 | 215 | 165 | 136 | 29 | 100 | 78 | 45 | 10 | 10 | GT42 |
All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Interface / Taper | HSK100A, HSK50A, HSK63A |
|---|---|
| Tapping Range | M3-M16 |
