HSK-T Outside Diameter Turning & Milling Tool Holder SBK HSK63T/20×20/25×25
Mill-turn combined tool holder HSK series, fits HSK63T / 20×20 / 25×25 turrets, 5 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Outside Diameter Turning & Milling Tool Holder SBK HSK63T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding tooling inserts . Available in HSK63T and 20×20 and 25×25 interfaces with 5 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK-T63-SBK20*20R-110: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBK) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification

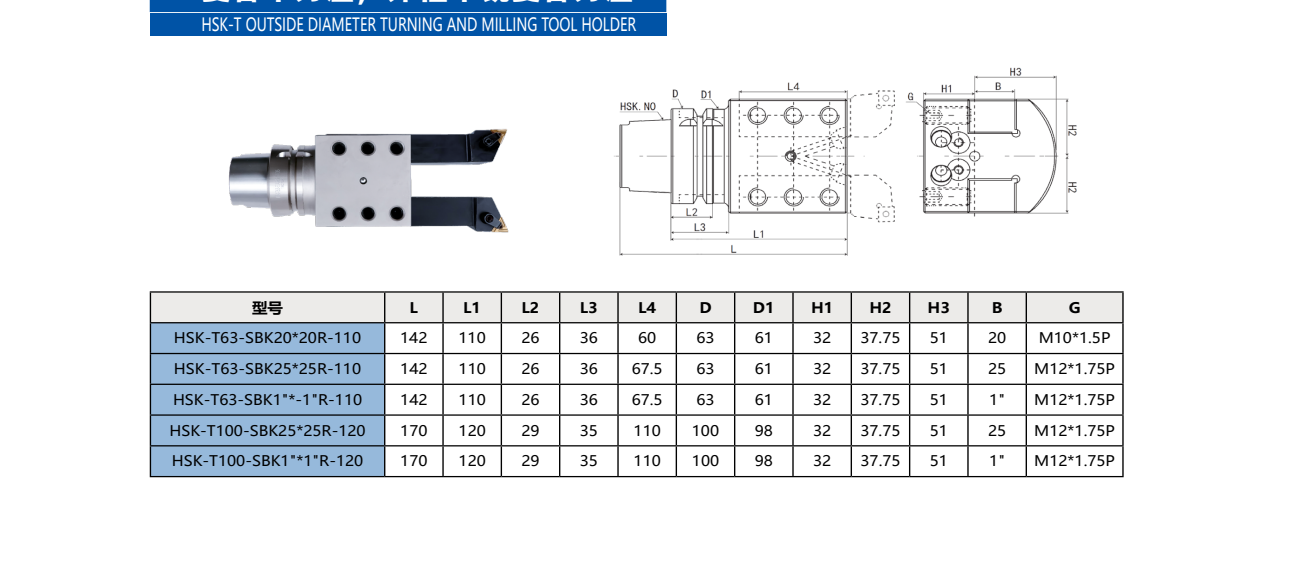

| 型号 | L | L1 | L2 | L3 | L4 | D | D1 | H1 | H2 | H3 | B | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK-T63-SBK20*20R-110 | 142 | 110 | 26 | 36 | 60 | 63 | 61 | 32 | 37.75 | 51 | 20 | M10*1.5P |
| HSK-T63-SBK25*25R-110 | 142 | 110 | 26 | 36 | 67.5 | 63 | 61 | 32 | 37.75 | 51 | 25 | M12*1.75P |
| HSK-T63-SBK1"*-1"R-110 | 142 | 110 | 26 | 36 | 67.5 | 63 | 61 | 32 | 37.75 | 51 | 1" | M12*1.75P |
| HSK-T100-SBK25*25R-120 | 170 | 120 | 29 | 35 | 110 | 100 | 98 | 32 | 37.75 | 51 | 25 | M12*1.75P |
| HSK-T100-SBK1"*1"R-120 | 170 | 120 | 29 | 35 | 110 | 100 | 98 | 32 | 37.75 | 51 | 1" | M12*1.75P |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, 20×20, 25×25 |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 5 |
