HSK-T Turning Tool Holder DCLNR | DCLNL (Negative, CNMG)
Mill-turn combined tool holder HSK63T series for CNMG inserts, fits HSK63T turrets, 2 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder DCLNR | DCLNL (Negative, CNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO CNMG inserts . Available in HSK63T interfaces with 2 catalogue models covering common lengths and insert sizes.
Insert: CNMG (80° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-DCLNR-45065-12: HSK63T = taper size; D = insert clamping way; C = insert shape (CNMG); L = holder lead angle; N = insert clearance angle; R = cutting direction (R/L/N); 45065 = f (mm); 12 = insert size.

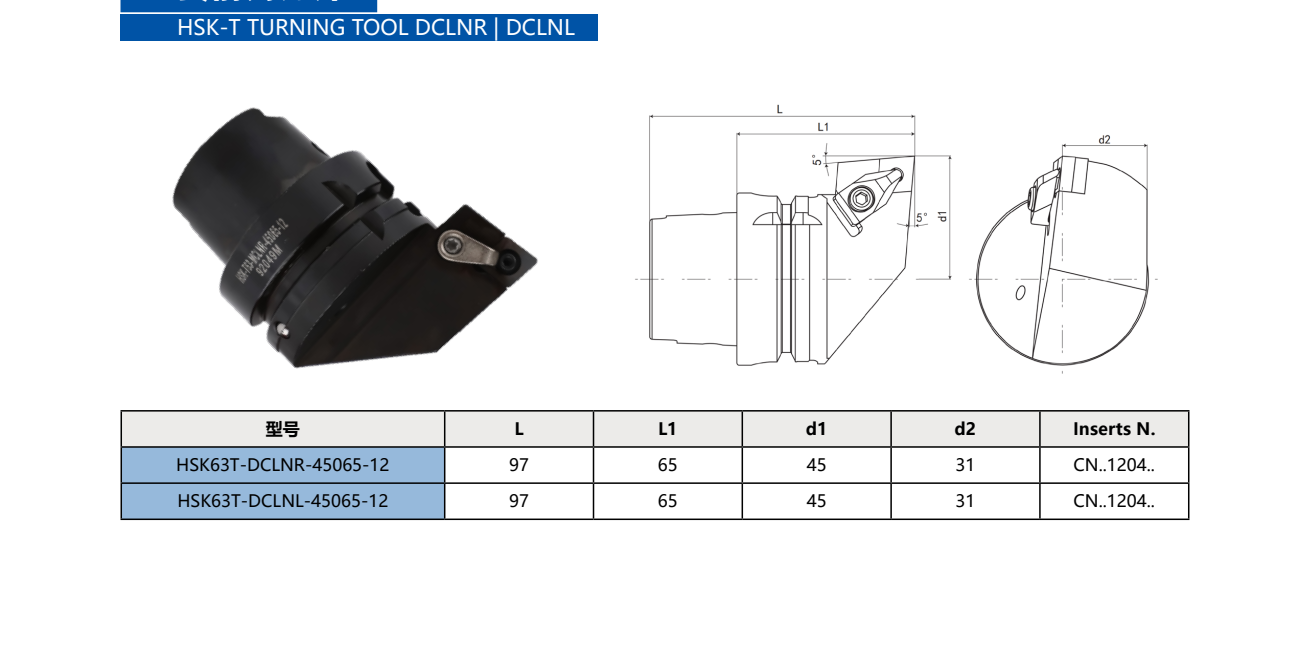

Specification
| 型号 | L | L1 | d1 | d2 | Inserts N. |
|---|---|---|---|---|---|
| HSK63T-DCLNR-45065-12 | 97 | 65 | 45 | 31 | CN..1204.. |
| HSK63T-DCLNL-45065-12 | 97 | 65 | 45 | 31 | CN..1204.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T |
|---|---|
| Insert Shape | CNMG |
| Hand | N |
| Models | 2 |
