HSK-T Turning Tool Holder SCMCN 50°/80°/50° (Positive, CNMG)
Mill-turn combined tool holder HSK63T series for CNMG inserts with 50°/80°/50° cutting geometry, fits HSK63T / HSK100T turrets, 3 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder SCMCN 50°/80°/50° (Positive, CNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO CNMG inserts with 50°/80°/50° geometry. Available in HSK63T and HSK100T interfaces with 3 catalogue models covering common lengths and insert sizes.
Insert: CNMG (80° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-SCMCN-100-12: HSK63T = taper size; S = insert clamping way; C = insert shape (CNMG); M = holder lead angle; C = insert clearance angle; N = cutting direction (R/L/N); 100 = f (mm); 12 = insert size.

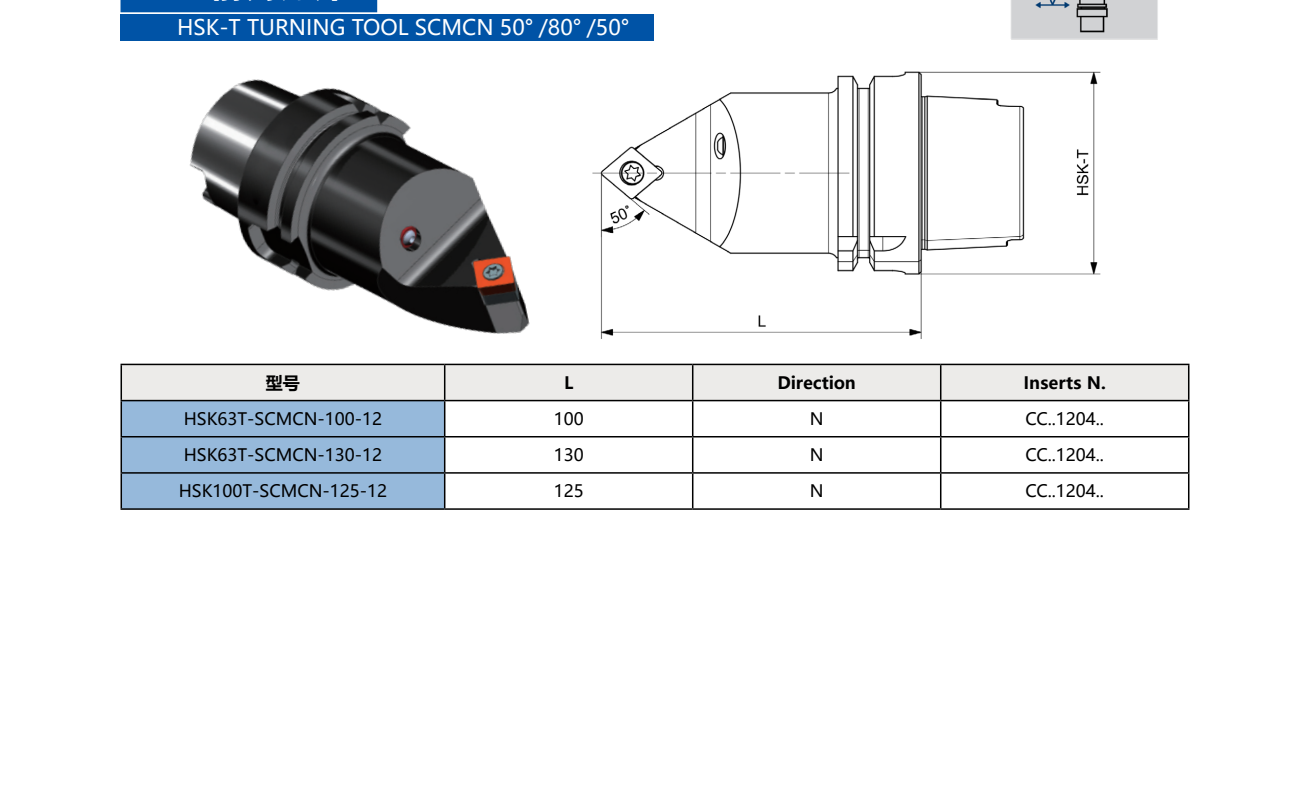

Specification
| 型号 | L | Direction | Inserts N. |
|---|---|---|---|
| HSK63T-SCMCN-100-12 | 100 | N | CC..1204.. |
| HSK63T-SCMCN-130-12 | 130 | N | CC..1204.. |
| HSK100T-SCMCN-125-12 | 125 | N | CC..1204.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
FAQ
What is your minimum order quantity (MOQ)?
What is your lead time?
How do you ship the goods?
Do you support OEM / ODM?
What payment methods do you accept?
What is the warranty period?
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | CNMG |
| Hand | N |
| Models | 3 |
