HSK-T Turning Tool for Facing SBV HSK63T/20×20/25×25

Mill-turn combined tool holder HSK series, fits HSK63T / 20×20 / 25×25 turrets, 12 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK-T63-SBV20*20R-95 Category: Tag:

Description

The HSK-T Turning Tool for Facing SBV HSK63T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for end-face turning on mill-turn centers, holding tooling inserts . Available in HSK63T and 20×20 and 25×25 interfaces with 12 catalogue models covering common lengths and insert sizes.

Model Naming

Example — HSK-T63-SBV20*20R-95: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBV) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.

Specification

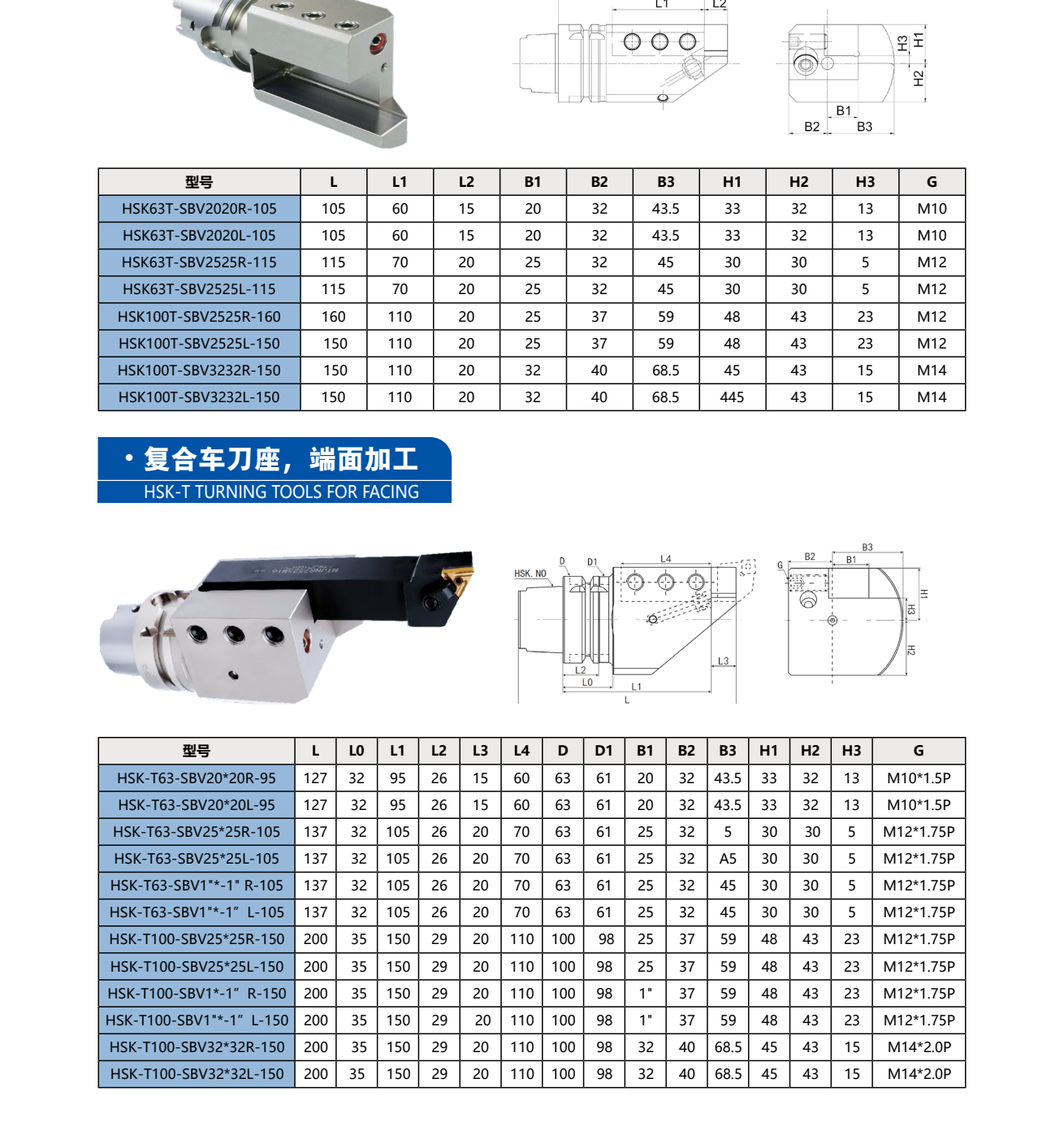

型号 L L0 L1 L2 L3 L4 D D1 B1 B2 B3 H1 H2 H3 G
HSK-T63-SBV20*20R-95 127 32 95 26 15 60 63 61 20 32 43.5 33 32 13 M10*1.5P
HSK-T63-SBV20*20L-95 127 32 95 26 15 60 63 61 20 32 43.5 33 32 13 M10*1.5P
HSK-T63-SBV25*25R-105 137 32 105 26 20 70 63 61 25 32 5 30 30 5 M12*1.75P
HSK-T63-SBV25*25L-105 137 32 105 26 20 70 63 61 25 32 A5 30 30 5 M12*1.75P
HSK-T63-SBV1"*-1" R-105 137 32 105 26 20 70 63 61 25 32 45 30 30 5 M12*1.75P
HSK-T63-SBV1"*-1”L-105 137 32 105 26 20 70 63 61 25 32 45 30 30 5 M12*1.75P
HSK-T100-SBV25*25R-150 200 35 150 29 20 110 100 98 25 37 59 48 43 23 M12*1.75P
HSK-T100-SBV25*25L-150 200 35 150 29 20 110 100 98 25 37 59 48 43 23 M12*1.75P
HSK-T100-SBV1*-1”R-150 200 35 150 29 20 110 100 98 1" 37 59 48 43 23 M12*1.75P
HSK-T100-SBV1"*-1”L-150 200 35 150 29 20 110 100 98 1" 37 59 48 43 23 M12*1.75P
HSK-T100-SBV32*32R-150 200 35 150 29 20 110 100 98 32 40 68.5 45 43 15 M14*2.0P
HSK-T100-SBV32*32L-150 200 35 150 29 20 110 100 98 32 40 68.5 45 43 15 M14*2.0P

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
