HSK-T Turning Tool Holder SVQCR | SVQCL 107.5°/55° Long Type (Positive, VNMG)
Mill-turn combined tool holder HSK63T series for VNMG inserts with 107.5°/55° cutting geometry, fits HSK63T turrets, 12 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder SVQCR | SVQCL 107.5°/55° Long Type (Positive, VNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO VNMG inserts with 107.5°/55° geometry. Available in HSK63T interfaces with 12 catalogue models covering common lengths and insert sizes.
Insert: VNMG (35° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-SVQCR11-85: the code encodes the turret interface (HSK63T / HSK100T), the holder series (HSK63T) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification

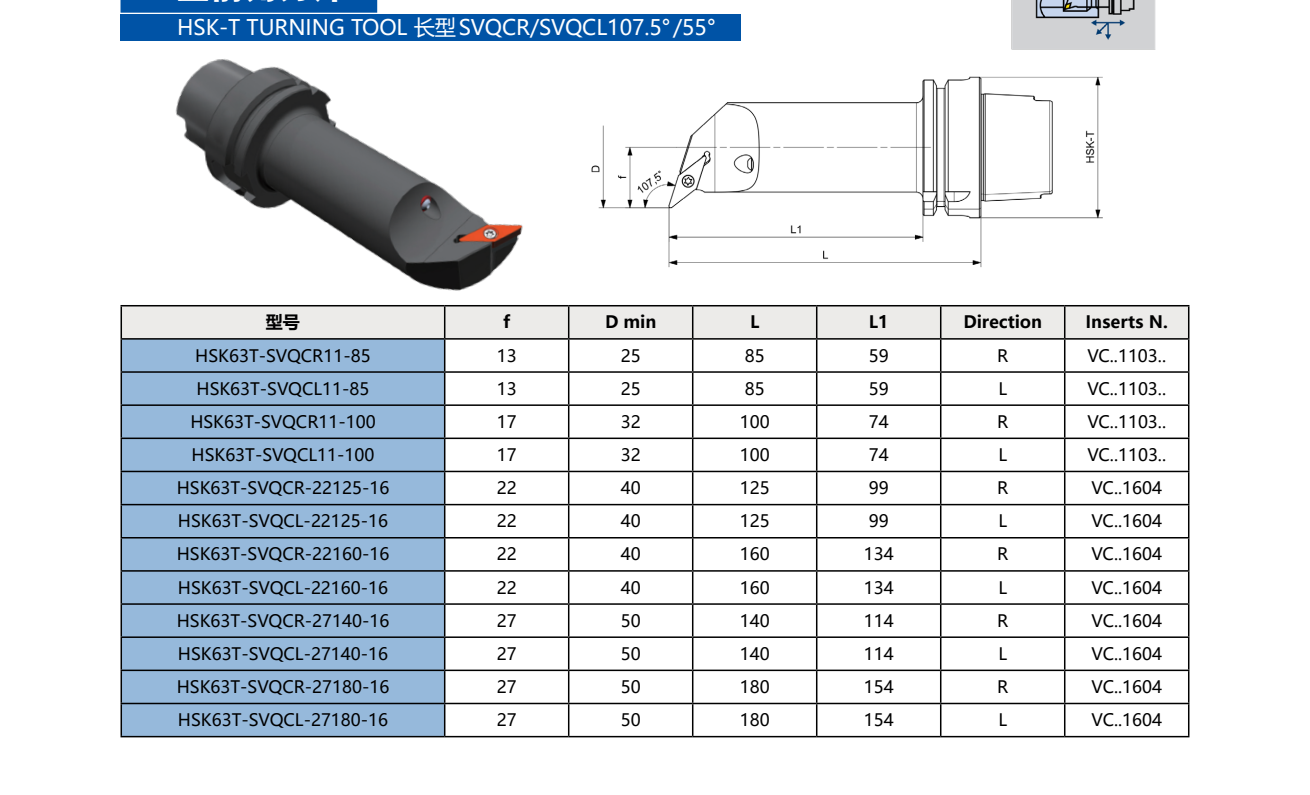

| 型号 | f | D min | L | L1 | Direction | Inserts N. |
|---|---|---|---|---|---|---|
| HSK63T-SVQCR11-85 | 13 | 25 | 85 | 59 | R | VC..1103.. |
| HSK63T-SVQCL11-85 | 13 | 25 | 85 | 59 | L | VC..1103.. |
| HSK63T-SVQCR11-100 | 17 | 32 | 100 | 74 | R | VC..1103.. |
| HSK63T-SVQCL11-100 | 17 | 32 | 100 | 74 | L | VC..1103.. |
| HSK63T-SVQCR-22125-16 | 22 | 40 | 125 | 99 | R | VC..1604 |
| HSK63T-SVQCL-22125-16 | 22 | 40 | 125 | 99 | L | VC..1604 |
| HSK63T-SVQCR-22160-16 | 22 | 40 | 160 | 134 | R | VC..1604 |
| HSK63T-SVQCL-22160-16 | 22 | 40 | 160 | 134 | L | VC..1604 |
| HSK63T-SVQCR-27140-16 | 27 | 50 | 140 | 114 | R | VC..1604 |
| HSK63T-SVQCL-27140-16 | 27 | 50 | 140 | 114 | L | VC..1604 |
| HSK63T-SVQCR-27180-16 | 27 | 50 | 180 | 154 | R | VC..1604 |
| HSK63T-SVQCL-27180-16 | 27 | 50 | 180 | 154 | L | VC..1604 |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T |
|---|---|
| Insert Shape | VNMG |
| Hand | N |
| Models | 12 |
