HSK-T Boring Bar Holder E2 Cylindrical HSK63T/HSK100T
Mill-turn combined tool holder HSK63TAX series, fits HSK63T / HSK100T turrets, 14 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Boring Bar Holder E2 Cylindrical HSK63T/HSK100T is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for inner-diameter boring and drilling operations, holding tooling inserts . Available in HSK63T and HSK100T interfaces with 14 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK63TAX-E2-06: the code encodes the turret interface (HSK63T / HSK100T), the holder series (E2) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification

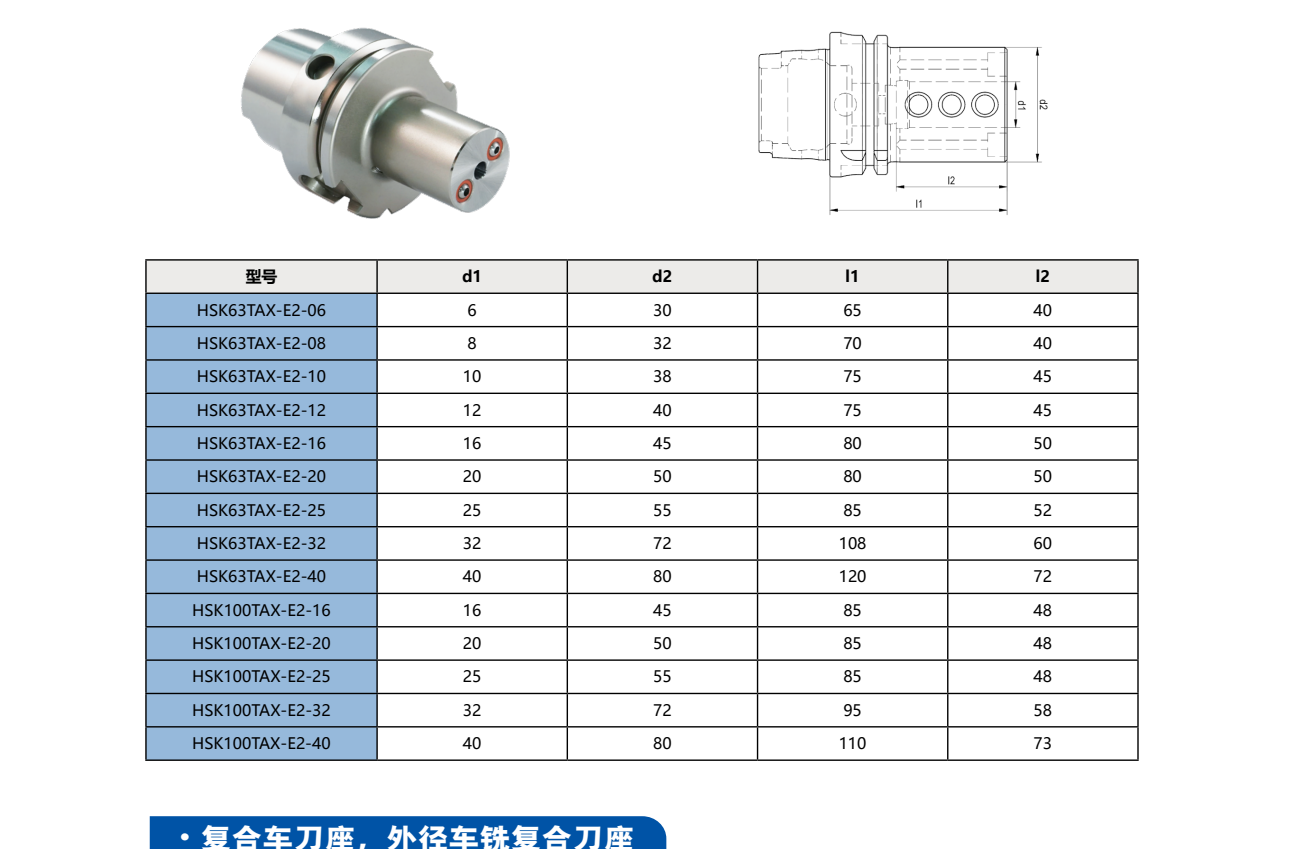

| 型号 | d1 | d2 | l1 | l2 |
|---|---|---|---|---|
| HSK63TAX-E2-06 | 6 | 30 | 65 | 40 |
| HSK63TAX-E2-08 | 8 | 32 | 70 | 40 |
| HSK63TAX-E2-10 | 10 | 38 | 75 | 45 |
| HSK63TAX-E2-12 | 12 | 40 | 75 | 45 |
| HSK63TAX-E2-16 | 16 | 45 | 80 | 50 |
| HSK63TAX-E2-20 | 20 | 50 | 80 | 50 |
| HSK63TAX-E2-25 | 25 | 55 | 85 | 52 |
| HSK63TAX-E2-32 | 32 | 72 | 108 | 60 |
| HSK63TAX-E2-40 | 40 | 80 | 120 | 72 |
| HSK100TAX-E2-16 | 16 | 45 | 85 | 48 |
| HSK100TAX-E2-20 | 20 | 50 | 85 | 48 |
| HSK100TAX-E2-25 | 25 | 55 | 85 | 48 |
| HSK100TAX-E2-32 | 32 | 72 | 95 | 58 |
| HSK100TAX-E2-40 | 40 | 80 | 110 | 73 |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 14 |
