HSK-TER-A Rigid Tension-Comp Tapping Holder M3-M20 (ER16-ER32) - HSK50A-TER16-A-150 | NBD Machinery

HSK-TER-A Rigid Tension-Comp Tapping Holder M3-M20 (ER16-ER32)

Tapping chuck/holder M3-M10 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 12 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK50A-TER16-A-150 Category: Tags: , , , ,

Description

The HSK-TER-A Rigid Tension-Comp Tapping Holder M3-M20 (ER16-ER32) is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M3-M10 with 12 catalogue models.

Features

  • 本体规格：DIN 69893-1
  • 刚性攻牙刀柄可使用 ER/ERG 筒夹代替，作为夹持钻头、铰刀和
  • Spindle Conicity Standard: DIN 69893-1
  • Rigid function ensures machining center spindle rotate in
  • Can be replaced by ER /ERG collet for gripping cutting
  • Don’t lock excessively of the clamping nut in case of damage,

Model Naming

Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

Specification

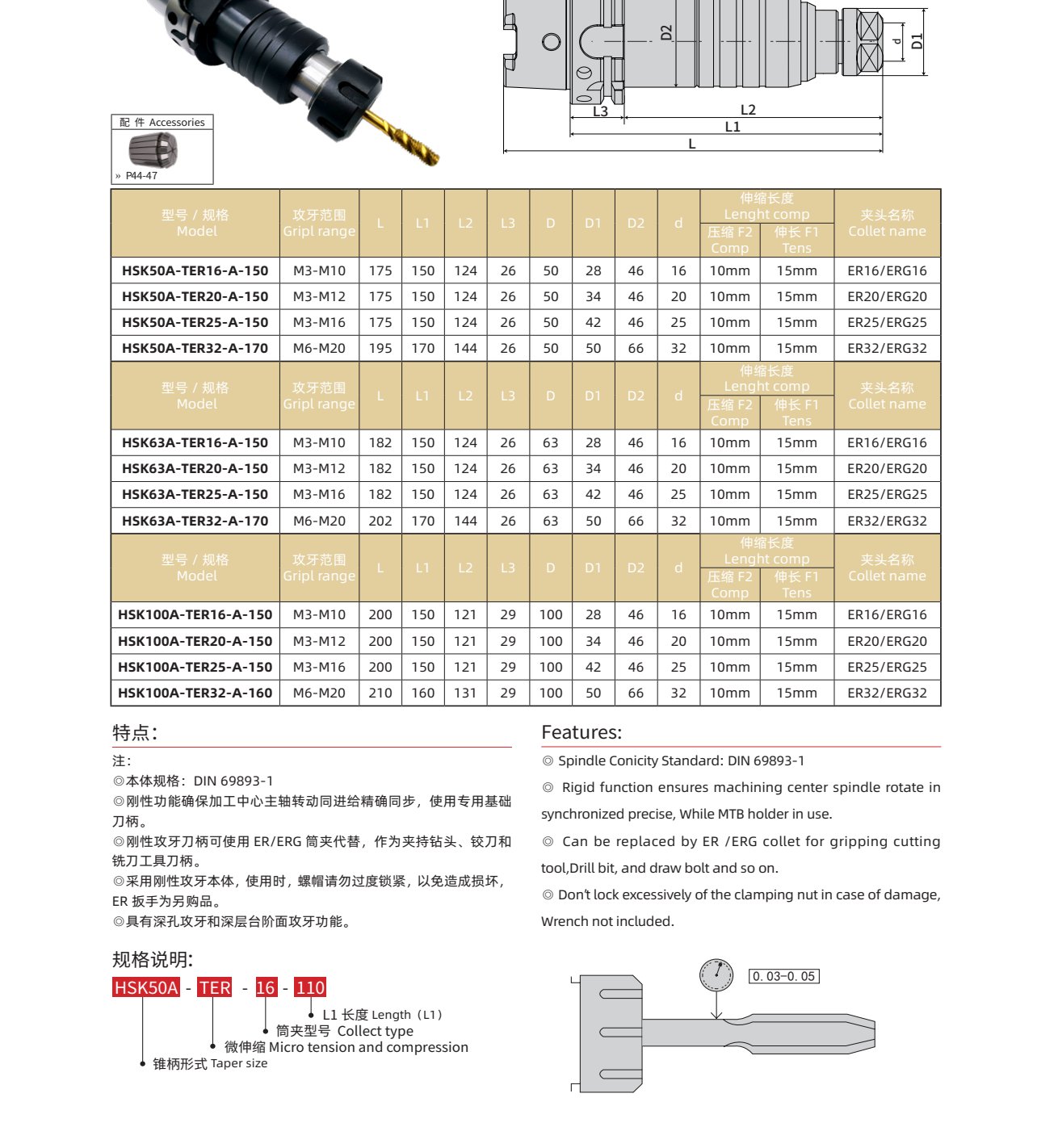

Model Spec Dimensions (mm)
HSK50A-TER16-A-150 M3-M10 175 150 124 26 50 28 46 16 10mm 15mm ER16/ERG16
HSK50A-TER20-A-150 M3-M12 175 150 124 26 50 34 46 20 10mm 15mm ER20/ERG20
HSK50A-TER25-A-150 M3-M16 175 150 124 26 50 42 46 25 10mm 15mm ER25/ERG25
HSK50A-TER32-A-170 M6-M20 195 170 144 26 50 50 66 32 10mm 15mm ER32/ERG32
HSK63A-TER16-A-150 M3-M10 182 150 124 26 63 28 46 16 10mm 15mm ER16/ERG16
HSK63A-TER20-A-150 M3-M12 182 150 124 26 63 34 46 20 10mm 15mm ER20/ERG20
HSK63A-TER25-A-150 M3-M16 182 150 124 26 63 42 46 25 10mm 15mm ER25/ERG25
HSK63A-TER32-A-170 M6-M20 202 170 144 26 63 50 66 32 10mm 15mm ER32/ERG32
HSK100A-TER16-A-150 M3-M10 200 150 121 29 100 28 46 16 10mm 15mm ER16/ERG16
HSK100A-TER20-A-150 M3-M12 200 150 121 29 100 34 46 20 10mm 15mm ER20/ERG20
HSK100A-TER25-A-150 M3-M16 200 150 121 29 100 42 46 25 10mm 15mm ER25/ERG25
HSK100A-TER32-A-160 M6-M20 210 160 131 29 100 50 66 32 10mm 15mm ER32/ERG32

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.
