HSK40E/HSK50E — HSK40E/HSK50E
HSK40E/HSK50E（HSK40E/HSK50E）— NBD 铣削刀具刀柄 series. 48 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The HSK40E/HSK50E（HSK40E/HSK50E）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
HSK40E/HSK50E High precision hydraulic mill chuck HSK50A High precision hydraulic mill chuck HSK40E/HSK50E High precision hydraulic mill chuck
Specification
| HSK40E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK40E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK40E-HDC10-75L | 10 | 34 | 42 | 75 | 32.6 | 34 | 45 | M8- |
| HSK40E-HDC12-80L | 12 | 36 | 42 | 80 | 40 | 36 | 50 | M8- |
| HSK50E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK50E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK50E-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8- |
| HSK50E-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8- |
| HSK50E-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8- |
| HSK50E-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8- |
| HSK40E-HDC12-80L | 12 | 36 | 42 | 80 | 40 | 36 | 50 | M8- |
| HSK50E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK50E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK50E-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8- |
| HSK50E-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8- |
| HSK50E-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8- |
| HSK50E-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8- |
| HSK50A-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK50A-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK50A-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8- |
| HSK50A-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8- |
| HSK50A-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8- |
| HSK50A-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8- |
| 型号 | ||||||||
| HSK40E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK40E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK40E-HDC10-75L | 10 | 34 | 42 | 75 | 32.6 | 34 | 45 | M8- |
| HSK40E-HDC12-80L | 12 | 36 | 42 | 80 | 40 | 36 | 50 | M8- |
| HSK50E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK50E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK50E-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8- |
| HSK50E-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8- |
| HSK50E-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8- |
| HSK50E-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8- |
| HSK40E-HDC12-80L | 12 | 36 | 42 | 80 | 40 | 36 | 50 | M8- |
| HSK50E-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK50E-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK50E-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8- |
| HSK50E-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8- |
| HSK50E-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8- |
| HSK50E-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8- |
| HSK50A-HDC06-70L | 6 | 30 | 42 | 70 | 25.5 | 26 | 38 | M5- |
| HSK50A-HDC08-70L | 8 | 32 | 42 | 70 | 26 | 28 | 38 | M6- |
| HSK50A-HDC10-80L | 10 | 34 | 42 | 80 | 32.6 | 34 | 45 | M8- |
| HSK50A-HDC12-85L | 12 | 36 | 42 | 85 | 40 | 36 | 50 | M8- |
| HSK50A-HDC16-90L | 16 | 40 | 42 | 90 | 43 | 41 | 52 | M8- |
| HSK50A-HDC20-90L | 20 | 42 | 42 | 90 | 64 | 41 | 52 | M8- |
| 型号 |

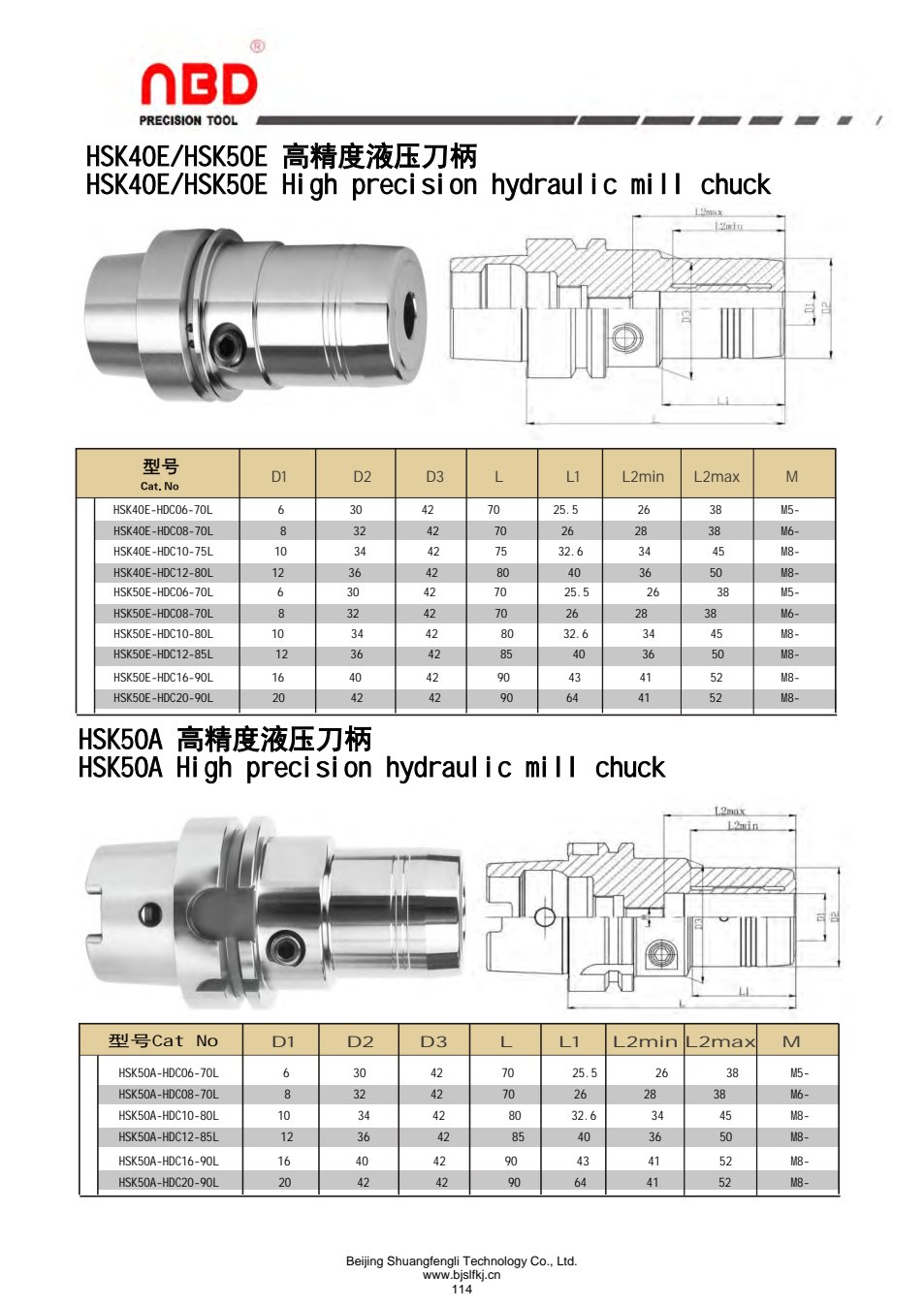

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | HSK40E |
|---|
