Miniature thread rolling tool — 小型螺纹滚压工具
Miniature thread rolling tool（小型螺纹滚压工具）— NBD 螺纹滚压 series. 28 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Miniature thread rolling tool（小型螺纹滚压工具）is part of NBD’s 螺纹滚压 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.

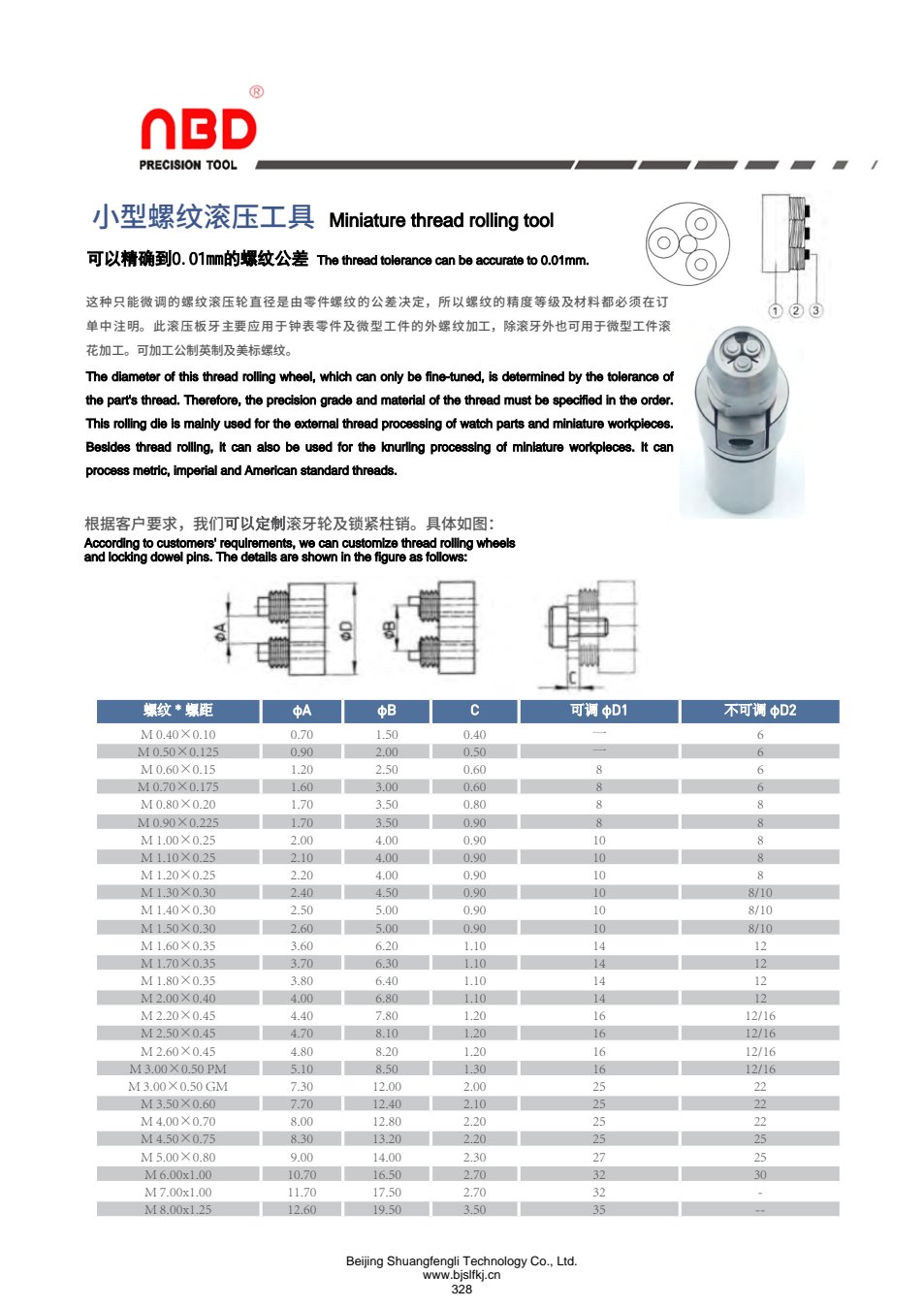

According to customers' requirements, we can customize thread rolling wheels and locking dowel pins. The details are shown in the figure as follows: 小型螺纹滚压工具 Miniature thread rolling tool The diameter of this thread rolling wheel, which can only be fine-tuned, is determined by the tolerance of
Specification
| M | 0.40×0.10 | 0.70 | 1.50 | 0.40 | 一 | 6 | |
| M | 0.50×0.125 | 0.90 | 2.00 | 0.50 | 一 | 6 | |
| M | 0.60×0.15 | 1.20 | 2.50 | 0.60 | 8 | 6 | |
| M | 0.70×0.175 | 1.60 | 3.00 | 0.60 | 8 | 6 | |
| M | 0.80×0.20 | 1.70 | 3.50 | 0.80 | 8 | 8 | |
| M | 0.90×0.225 | 1.70 | 3.50 | 0.90 | 8 | 8 | |
| M | 1.00×0.25 | 2.00 | 4.00 | 0.90 | 10 | 8 | |
| M | 1.10×0.25 | 2.10 | 4.00 | 0.90 | 10 | 8 | |
| M | 1.20×0.25 | 2.20 | 4.00 | 0.90 | 10 | 8 | |
| M | 1.30×0.30 | 2.40 | 4.50 | 0.90 | 10 | 8/10 | |
| M | 1.40×0.30 | 2.50 | 5.00 | 0.90 | 10 | 8/10 | |
| M | 1.50×0.30 | 2.60 | 5.00 | 0.90 | 10 | 8/10 | |
| M | 1.60×0.35 | 3.60 | 6.20 | 1.10 | 14 | 12 | |
| M | 1.70×0.35 | 3.70 | 6.30 | 1.10 | 14 | 12 | |
| M | 1.80×0.35 | 3.80 | 6.40 | 1.10 | 14 | 12 | |
| M | 2.00×0.40 | 4.00 | 6.80 | 1.10 | 14 | 12 | |
| M | 2.20×0.45 | 4.40 | 7.80 | 1.20 | 16 | 12/16 | |
| M | 2.50×0.45 | 4.70 | 8.10 | 1.20 | 16 | 12/16 | |
| M | 2.60×0.45 | 4.80 | 8.20 | 1.20 | 16 | 12/16 | |
| M | 3.00×0.50 | PM | 5.10 | 8.50 | 1.30 | 16 | 12/16 |
| M | 3.00×0.50 | GM | 7.30 | 12.00 | 2.00 | 25 | 22 |
| M | 3.50×0.60 | 7.70 | 12.40 | 2.10 | 25 | 22 | |
| M | 4.00×0.70 | 8.00 | 12.80 | 2.20 | 25 | 22 | |
| M | 4.50×0.75 | 8.30 | 13.20 | 2.20 | 25 | 25 | |
| M | 5.00×0.80 | 9.00 | 14.00 | 2.30 | 27 | 25 | |
| M | 6.00x1.00 | 10.70 | 16.50 | 2.70 | 32 | 30 | |
| M | 7.00x1.00 | 11.70 | 17.50 | 2.70 | 32 | - | |
| M | 8.00x1.25 | 12.60 | 19.50 | 3.50 | 35 | -- |
All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | 小型螺纹滚压工具 |
|---|
