Tangential thread rolling head — 切向螺纹轧制头
Tangential thread rolling head（切向螺纹轧制头）— NBD 螺纹滚压 series. 6 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The Tangential thread rolling head（切向螺纹轧制头）is part of NBD’s 螺纹滚压 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
It has the same processing technology and processing effect as the thread rolling seat. It can machine threads without relief grooves and short threads. It can machine two adjacent short threads 切向螺纹轧制头 Tangential thread rolling head
Specification
| RT-10 | 1.6-14 | 15.5 |
| RT-20 | 2-30 | 21.5 |
| RT-30 | 2-42 | 31.0 |
| RT-10 | 1.6-14 | 15.5 |
| RT-20 | 2-30 | 21.5 |
| RT-30 | 2-42 | 31.0 |

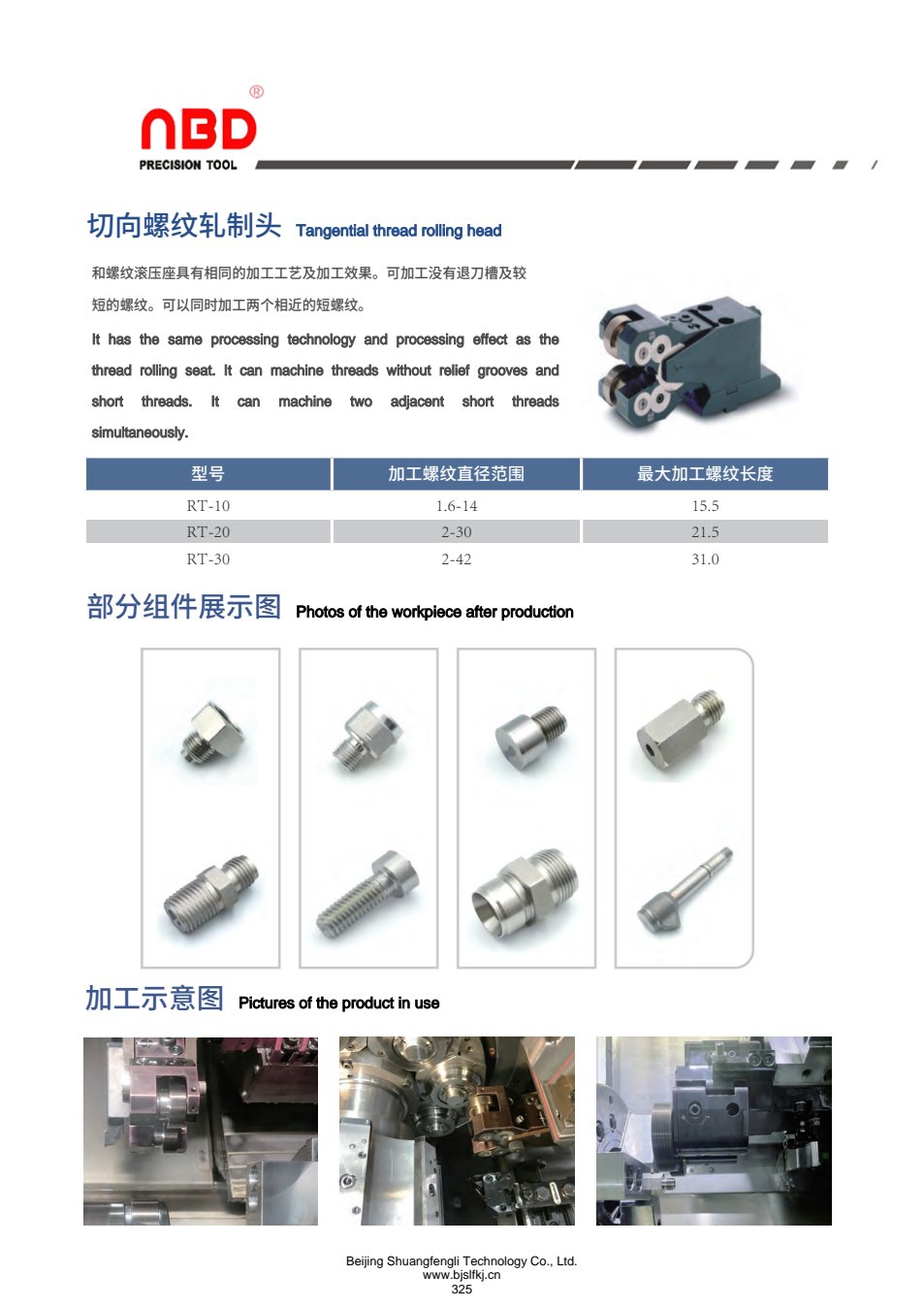

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | 切向螺纹轧制头 |
|---|
