MTA-TER-B Morse Taper Rigid Tapping Holder M3-M20

Tapping chuck/holder M2-M12 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 12 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: MTA2-TER16-B-100 Category: Tags: , , , ,

Description

The MTA-TER-B Morse Taper Rigid Tapping Holder M3-M20 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M2-M12 with 12 catalogue models.

Features

  • Rigid function ensures machining center spindle rotate in
  • Can be replaced by ER collet for gripping cutting tool, Drill
  • Don't lock excessively of the clamping nut in case of

Model Naming

Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

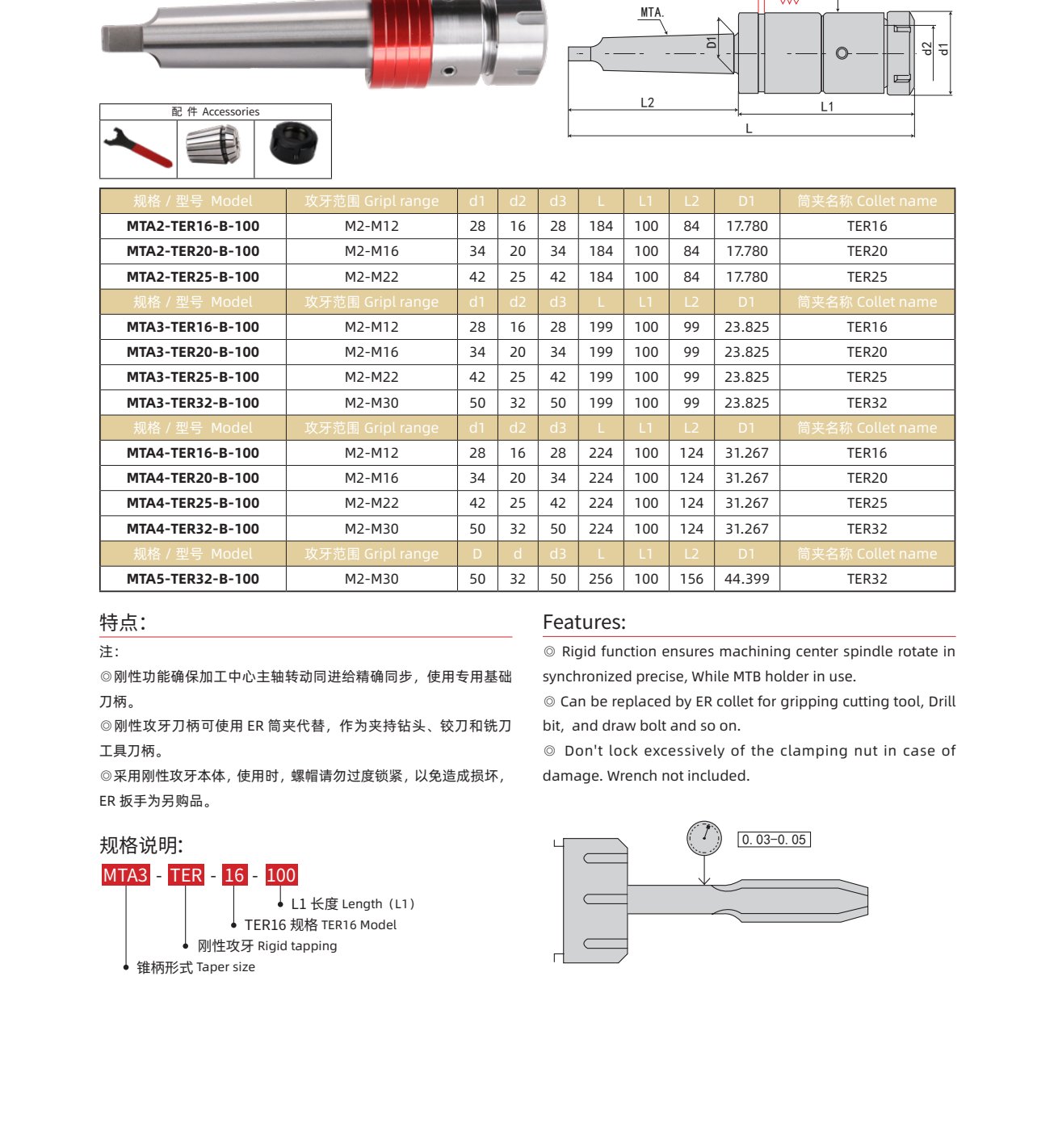

Specification

Model Spec Dimensions (mm)
MTA2-TER16-B-100 M2-M12 28 16 28 184 100 84 17.780 TER16
MTA2-TER20-B-100 M2-M16 34 20 34 184 100 84 17.780 TER20
MTA2-TER25-B-100 M2-M22 42 25 42 184 100 84 17.780 TER25
MTA3-TER16-B-100 M2-M12 28 16 28 199 100 99 23.825 TER16
MTA3-TER20-B-100 M2-M16 34 20 34 199 100 99 23.825 TER20
MTA3-TER25-B-100 M2-M22 42 25 42 199 100 99 23.825 TER25
MTA3-TER32-B-100 M2-M30 50 32 50 199 100 99 23.825 TER32
MTA4-TER16-B-100 M2-M12 28 16 28 224 100 124 31.267 TER16
MTA4-TER20-B-100 M2-M16 34 20 34 224 100 124 31.267 TER20
MTA4-TER25-B-100 M2-M22 42 25 42 224 100 124 31.267 TER25
MTA4-TER32-B-100 M2-M30 50 32 50 224 100 124 31.267 TER32
MTA5-TER32-B-100 M2-M30 50 32 50 256 100 156 44.399 TER32

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

MTA2, MTA3, MTA4, MTA5
Tapping Range

M2-M12
