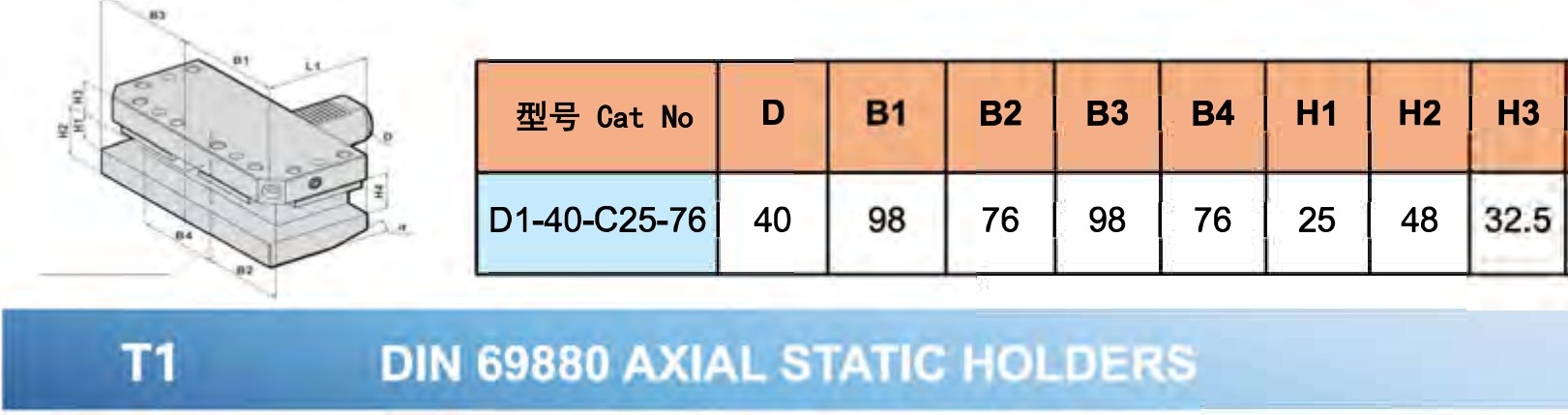

VDI Dual Face Tool Holder D12 — VDI双面刀夹D12
VDI Dual Face Tool Holder D12 — VDI双面刀夹D12 - Image 2

VDI Dual Face Tool Holder D12 — VDI双面刀夹D12

VDI双面刀夹D12（VDI Dual Face Tool Holder D12）— VDI tool holder per DIN69880, dual-face tool holder.

SKU: NBD-VDI-D12 Category:

Description

The VDI Dual Face Tool Holder D12（VDI双面刀夹D12）: dual-face tool holder for VDI posts. Strictly per DIN69880, high interchangeability, fits CNC lathes & turning centers for turning, drilling, boring and milling.

Dimension drawing（尺寸图）

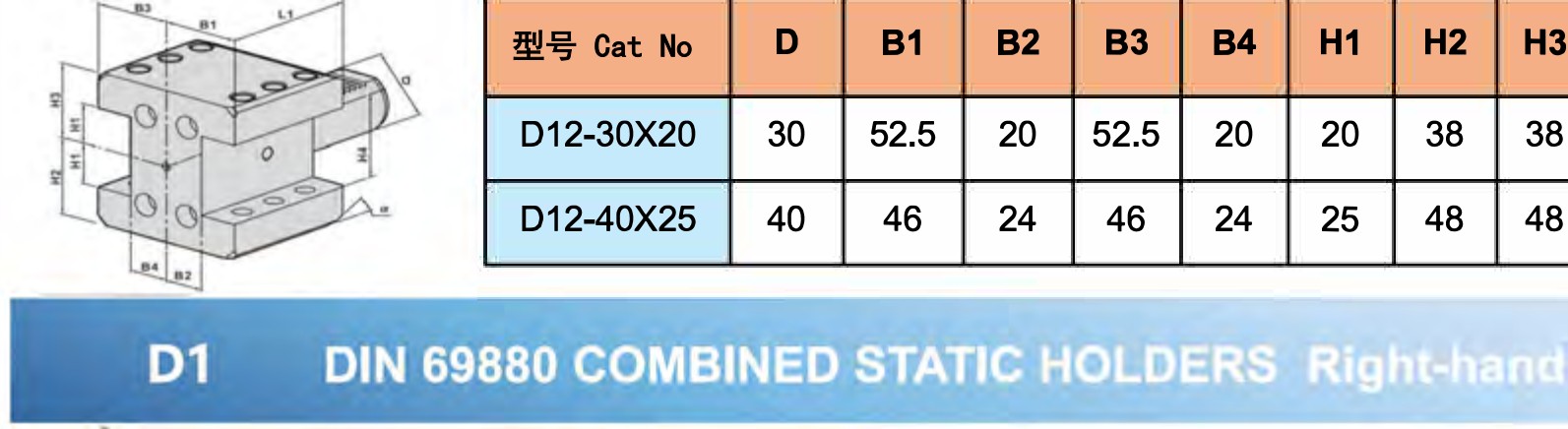

NBD-VDI-D12 drawing

Specification（VDI双面刀夹D12）

Per DIN69880. Beijing Shuangfengli (NBD Machinery) — factory-direct. d1=16/20/25/30/40 for VDI16/20/25/30/40 posts.

Specification（规格参数表）

Specification 1（规格表1）

Model 列2 列3 列4 列5 列6 列7 列8 列9 列10 列11
E2-25X6 25 6 58 5 40 M6 25 25 18 50 42
E2-25X8 25 8 58 6 40 M6 25 25 18 50 41
E2-25X10 25 10 58 8 40 M6 25 25 18 50 41
E2-25X12 25 12 58 10 40 M8 25 25 18 50 41
E2-25X14 25 14 58 10 50 M8 25 25 18 60 50
E2-25X16 25 16 58 12.5 40 M8 25 25 18 50 41
E2-25X20 25 20 58 12.5 58 M8 25 25 18 50 41
E2-25X25 25 25 58 12.5 58 M8 25 25 18 60 51
E2-30X6 30 6 68 5 55 M6 28 30 22 60 51
E2-30X8 30 8 68 6 55 M6 28 30 22 60 51
E2-30X10 30 10 68 8 55 M6 28 30 22 60 51
E2-30X12 30 12 68 10 55 M8 28 30 22 60 51
E2-30X14 30 14 68 12 55 M8 28 30 22 60 52
E2-30X16 30 16 68 12 55 M8 28 30 22 60 51
E2-30X18 30 18 68 10 55 M8 28 30 22 60 52
E2-30X20 30 20 68 16 55 M8 28 30 22 60 51
E2-30X25 30 25 68 16 55 MB 28 30 22 60 51
E2-30X32 30 32 68 16 68 M8 28 30 22 75 61
E2-4OX6 40 6 83 5 55 M6 32.5 22 75 67
E2-40X8 40 8 83 6 55 M8 32.5 22 75 67
E2-4OX10 40 10 83 8 55 M10 32.5 22 67 57
E2-4OX12 40 12 83 10 55 M10 32.5 22 75 61
E2-4OX14 40 14 83 10 55 M8 32.5 22 75 63
E2-4OX16 40 16 83 12 55 M10 32.5 22 75 61
E2-4OX18 40 18 83 10 55 M8 32.5 22 75 62
E2-4OX20 40 20 83 16 55 M10 32.5 22 75 61
E2-4OX25 40 25 83 20.5 55 M10 32.5 22 75 61
E2-4OX32 40 32 83 20.5 83 M10 32.5 22 75 61
E2-4OX40 40 40 83 20.5 83 M10 32.5 22 90 76
E2-4OX50 40 50 83 20.5 83 M12 32.5 22 90 75
E2-50XB 50 8 98 6 55 M6 35 30 75 67
E2-50X10 50 10 98 8 55 M6 35 30 75 67
E2-50X12 50 12 98 10 68 M8 35 30 90 76
E2-50X16 50 16 98 12 68 M10 35 30 90 76
E2-50X20 50 20 98 16 68 M12 35 30 90 76
E2-50X25 50 25 98 20 68 M12 35 30 90 76
E2-50X32 50 32 98 25.5 68 M12 35 30 90 76
E2-50X40 50 40 98 25.5 98 M12 35 30 90 76
E2-50X50 50 50 98 25.5 98 M12 35 30 100 86
E2-60X12 60 12 123 10 68 M8 42.5 30 90 76
E2-60X16 60 16 123 12 68 M10 42.5 30 90 76
E2-60X18 60 18 123 12 55 M8 42.5 30 90 76
E2-60X20 60 20 123 16 68 M12 42.5 30 90 76
E2-60X25 60 25 123 20 68 M12 42.5 30 90 76
E2-60X32 60 32 123 25 68 M12 42.5 30 90 76
E2-60X40 60 40 123 35 98 M12 42.5 30 90 76
E2-60X50 60 50 123 40 98 M12 42.5 30 100 86

Specification 2（规格表2）

型号 Cat No D D1 H1 H2 H3 L1 L2
T1-20X25X70 20 25 50 50 70 90
T1-30X32X65 30 32 65 52 62 65 90
T1-30X32X85 30 32 65 52 62 85 108
T1-30X32X100 30 32 65 52 62 100 123
T1-30X32X120 30 32 65 52 62 120 143
T1-30X40X85 30 40 65 85 85 112
T1-30X50X85 30 50 80 85 85 123
T1-40X32X85 40 32 80 65 85 85 112
T1-40X40X85 40 40 80 65 85 85 112
T1-40X40X100 40 40 80 65 85 100 127
T1-40X40X120 40 40 80 65 85 120 147
T1-40X40X140 40 40 80 65 85 140 167
T1-50X40X100 50 40 90 80 96 100 137
T1-50X50X100 50 50 90 80 96 100 137
T1-50X50X110 50 50 90 82 96 110 147
T1-50X60X110 50 60 98 104 96 110 152
T1-60X50X100 60 50 104 90 120 100 142
T1-60X50X135 60 50 108 94 120 135 177
T1-60X60X100 60 60 104 90 120 100 142
T1-60X60X135 60 60 108 120 135 182

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

FAQ

Can I order a sample before a bulk order?

Yes. Single-piece sample orders are welcome for standard models; sample cost and freight are quoted per item. Customized items require a drawing or sample first.

Can you manufacture to our drawings or custom dimensions?

Yes. We manufacture strictly to customer drawings or samples, including custom bores, jaws, connections and private labeling (OEM/ODM). Send your drawing for a quotation.

Where can I find dimension drawings and specification tables?

Every product page carries its specification table (model list with dimensions) and a dimension drawing where available. Our catalogs are also available for download from the Electronic Sample Book page.

How do I choose between BT30, BT40 and BT50 tool holders?

BT30 suits smaller machines and light cuts; BT40 is the general-purpose choice for vertical and horizontal machining centres; BT50 is used for heavy cutting where taper rigidity matters. BBT (dual-contact) versions add face contact for higher rigidity at high spindle speeds.

What is the difference between KS pneumatic chucks and KT / KY power chucks?

KS is a solid (closed-centre) pneumatic chuck actuated by air; KT is a hollow power chuck with a through-hole for bar work; KY is a solid (closed-centre) power chuck. KYD adds a super-long jaw stroke for wide diameter ranges.

Which is better, an ER collet chuck or a hydraulic chuck?

ER collet chucks are economical and cover roughly 1-26 mm with a runout class around 0.01-0.015 mm. Hydraulic chucks (HDC) provide better damping and repeatability (about 0.005 mm class) and are preferred for finishing and high-surface-quality work.

Do you supply spare parts such as jaws, collets and nuts?

Yes. We supply soft jaws and hard jaws for power chucks, ER/5C/R8 collets, collet nuts, pull studs, tap collets, wrenches and other chuck accessories.

Do you provide after-sales support?

All products carry a one-year warranty. Technical support for selection, installation and replacement parts is available by email at emilyu@bjslfkj.cn.

How are the goods packed?

Goods are packed for export using wooden cases, cartons or pallets as appropriate for the item and the shipping method. Both LCL (consolidated) and FCL (full container) shipments are available.

What trade terms do you support?

We quote on EXW, FOB, CIF, DAP and other Incoterms 2020 terms. Tell us your preferred term and destination port when requesting a quotation.

Additional information
