VDI端面刀夹E1（VDI End Face Tool Holder E1）— VDI tool holder per DIN69880, end face tool holder.

SKU: NBD-VDI-E1 Category:

Description

The VDI End Face Tool Holder E1（VDI端面刀夹E1）: end face tool holder for VDI posts. Strictly per DIN69880, high interchangeability, fits CNC lathes & turning centers for turning, drilling, boring and milling.

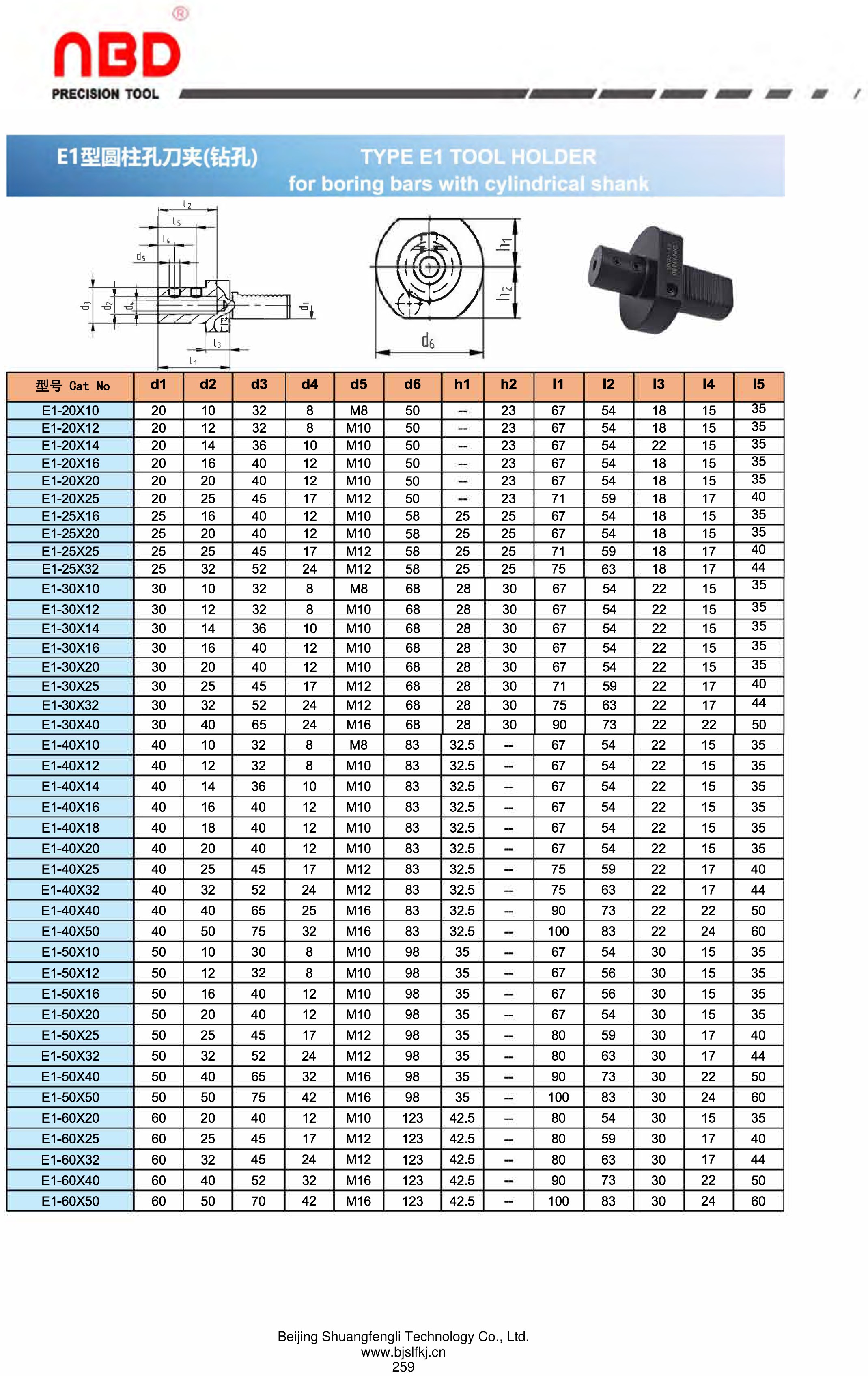

Dimension drawing（尺寸图）

NBD-VDI-E1 drawing

Specification（VDI端面刀夹E1）

Per DIN69880. Beijing Shuangfengli (NBD Machinery) — factory-direct. d1=16/20/25/30/40 for VDI16/20/25/30/40 posts.

Specification（规格参数表）

Specification 1（规格表1）

型号 Cat No d1 d2 d3 d4 d5 d6 h1 h2 11 12 13 14 15
E1-20X10 20 10 32 8 M8 50 23 67 54 18 15 35
E1-20X12 20 12 32 8 M10 50 23 67 54 18 15 35
E1-20X14 20 14 36 10 M10 50 23 67 54 22 15 35
E1-20X16 20 16 40 12 M10 50 23 67 54 18 15 35
E1-20X20 20 20 40 12 M10 50 23 67 54 18 15 35
E1-20X25 20 25 45 17 M12 50 23 71 59 18 17 40
E1-25X16 25 16 40 12 M10 58 25 25 67 54 18 15 35
E1-25X20 25 20 40 12 M10 58 25 25 67 54 18 15 35
E1-25X25 25 25 45 17 M12 58 25 25 71 59 18 17 40
E1-25X32 25 32 52 24 M12 58 25 25 75 63 18 17 44
E1-30X10 30 10 32 8 M8 68 28 30 67 54 22 15 35
E1-30X12 30 12 32 8 M10 68 28 30 67 54 22 15 35
E1-30X14 30 14 36 10 M10 68 28 30 67 54 22 15 35
E1-30X16 30 16 40 12 M10 68 28 30 67 54 22 15 35
E1-30X20 30 20 40 12 M10 68 28 30 67 54 22 15 35
E1-30X25 30 25 45 17 M12 68 28 30 71 59 22 17 40
E1-30X32 30 32 52 24 M12 68 28 30 75 63 22 17 44
E1-30X40 30 40 65 24 M16 68 28 30 90 73 22 22 50
E1-40X10 40 10 32 8 M8 83 32.5 67 54 22 15 35
E1-40X12 40 12 32 8 M10 83 32.5 67 54 22 15 35
E1-40X14 40 14 36 10 M10 83 32.5 67 54 22 15 35
E1-40X16 40 16 40 12 M10 83 32.5 67 54 22 15 35
E1-40X18 40 18 40 12 M10 83 32.5 67 54 22 15 35
E1-40X20 40 20 40 12 M10 83 32.5 67 54 22 15 35
E1-40X25 40 25 45 17 M12 83 32.5 75 59 22 17 40
E1-40X32 40 32 52 24 M12 83 32.5 75 63 22 17 44
E1-40X40 40 40 65 25 M16 83 32.5 90 73 22 22 50
E1-40X50 40 50 75 32 M16 83 32.5 100 83 22 24 60
E1-50X10 50 10 30 8 M10 98 35 67 54 30 15 35
E1-50X12 50 12 32 8 M10 98 35 67 56 30 15 35
E1-50X16 50 16 40 12 M10 98 35 67 56 30 15 35
E1-50X20 50 20 40 12 M10 98 35 67 54 30 15 35
E1-50X25 50 25 45 17 M12 98 35 80 59 30 17 40
E1-50X32 50 32 52 24 M12 98 35 80 63 30 17 44
E1-50X40 50 40 65 32 M16 98 35 90 73 30 22 50
E1-50X50 50 50 75 42 M16 98 35 100 83 30 24 60
E1-60X20 60 20 40 12 M10 123 42.5 80 54 30 15 35
E1-60X25 60 25 45 17 M12 123 42.5 80 59 30 17 40
E1-60X32 60 32 45 24 M12 123 42.5 80 63 30 17 44
E1-60X40 60 40 52 32 M16 123 42.5 90 73 30 22 50
E1-60X50 60 50 70 42 M16 123 42.5 100 83 30 24 60

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

FAQ

Can I order a sample before a bulk order?

Yes. Single-piece sample orders are welcome for standard models; sample cost and freight are quoted per item. Customized items require a drawing or sample first.

Can you manufacture to our drawings or custom dimensions?

Yes. We manufacture strictly to customer drawings or samples, including custom bores, jaws, connections and private labeling (OEM/ODM). Send your drawing for a quotation.

Where can I find dimension drawings and specification tables?

Every product page carries its specification table (model list with dimensions) and a dimension drawing where available. Our catalogs are also available for download from the Electronic Sample Book page.

How do I choose between BT30, BT40 and BT50 tool holders?

BT30 suits smaller machines and light cuts; BT40 is the general-purpose choice for vertical and horizontal machining centres; BT50 is used for heavy cutting where taper rigidity matters. BBT (dual-contact) versions add face contact for higher rigidity at high spindle speeds.

What is the difference between KS pneumatic chucks and KT / KY power chucks?

KS is a solid (closed-centre) pneumatic chuck actuated by air; KT is a hollow power chuck with a through-hole for bar work; KY is a solid (closed-centre) power chuck. KYD adds a super-long jaw stroke for wide diameter ranges.

Which is better, an ER collet chuck or a hydraulic chuck?

ER collet chucks are economical and cover roughly 1-26 mm with a runout class around 0.01-0.015 mm. Hydraulic chucks (HDC) provide better damping and repeatability (about 0.005 mm class) and are preferred for finishing and high-surface-quality work.

Do you supply spare parts such as jaws, collets and nuts?

Yes. We supply soft jaws and hard jaws for power chucks, ER/5C/R8 collets, collet nuts, pull studs, tap collets, wrenches and other chuck accessories.

Do you provide after-sales support?

All products carry a one-year warranty. Technical support for selection, installation and replacement parts is available by email at emilyu@bjslfkj.cn.

How are the goods packed?

Goods are packed for export using wooden cases, cartons or pallets as appropriate for the item and the shipping method. Both LCL (consolidated) and FCL (full container) shipments are available.

What trade terms do you support?

We quote on EXW, FOB, CIF, DAP and other Incoterms 2020 terms. Tell us your preferred term and destination port when requesting a quotation.

Additional information

Series

E1
