ART.1 Standard Vise — ART.1标准平口钳
ART.1 standard machine vise（标准平口钳）— 20 sizes, jaw 100-300mm, opening 100-800mm. HRC58-62.
Description

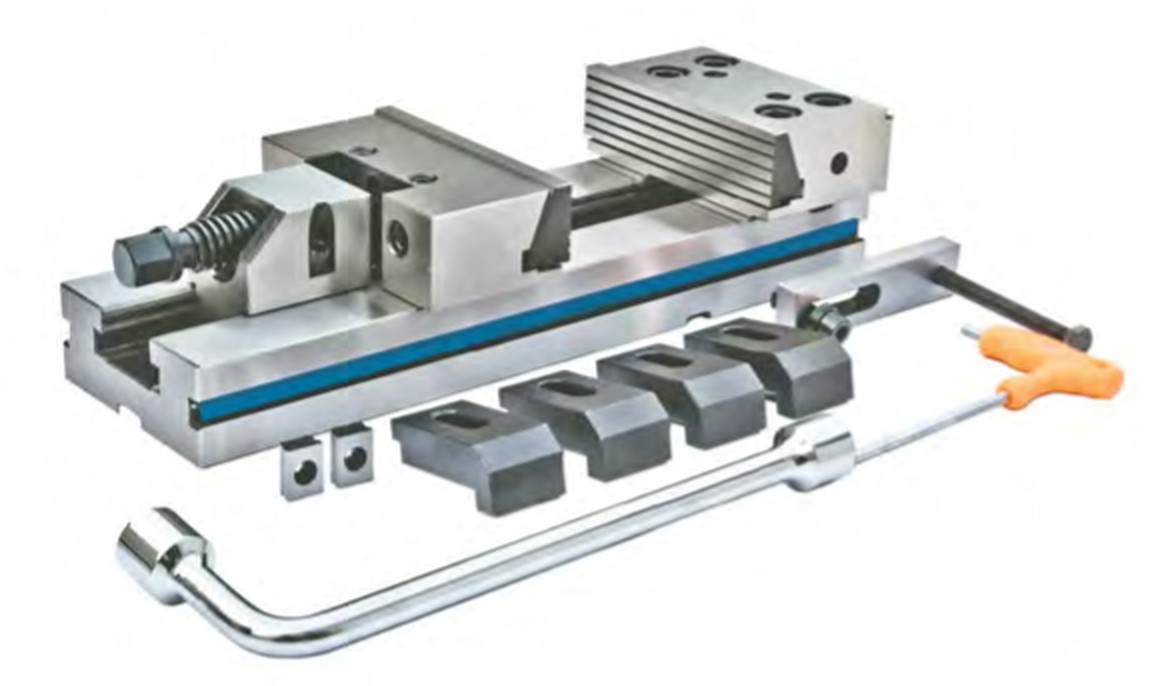

The ART.1 standard vise（ART.1标准平口钳）— perpendicularity of vise jaw and work table is 50:0.02. Made of high quality alloy steel, case hardness HRC58-62. Suitable for milling, boring, drilling and grinding on CNC machines, machining centres and ordinary machines.

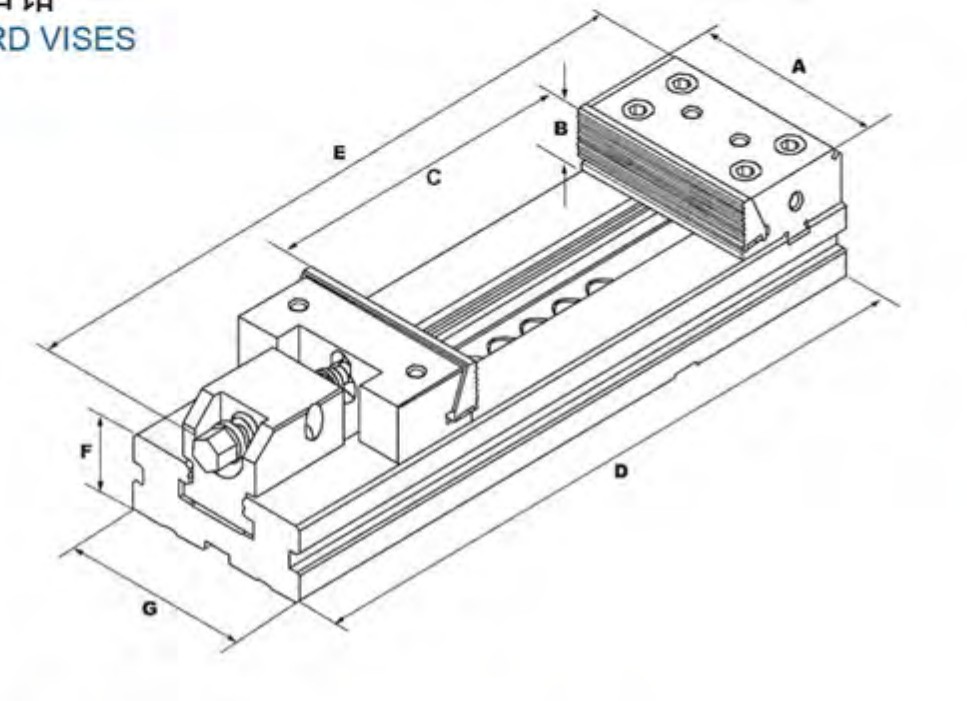

Dimension drawing（尺寸图）
Specification (20 models)
| Model | Jaw width A | Jaw height B | Jaw open C | Base length D | Vise length E | Base height F | Base width G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ART.1-1×100 | 100 | 30 | 100 | 270 | 320 | 35 | 75 | 7 |
| ART.1-2×150 | 125 | 40 | 150 | 345 | 402 | 40 | 95 | 13 |
| ART.1-3×200 | 150 | 50 | 200 | 420 | 500 | 50 | 125 | 26 |
| ART.1-3×300 | 150 | 50 | 300 | 520 | 600 | 50 | 125 | 29 |
| ART.1-4×200 | 175 | 60 | 200 | 455 | 530 | 58 | 145 | 37 |
| ART.1-4×300 | 175 | 60 | 300 | 555 | 630 | 58 | 145 | 42 |
| ART.1-4×400 | 175 | 60 | 400 | 655 | 730 | 58 | 145 | 47 |
| ART.1-4×500 | 175 | 60 | 500 | 755 | 830 | 58 | 145 | 52 |
| ART.1-5×200 | 200 | 65 | 200 | 495 | 580 | 70 | 170 | 64 |
| ART.1-5×300 | 200 | 65 | 300 | 595 | 680 | 70 | 170 | 69 |
| ART.1-5×400 | 200 | 65 | 400 | 695 | 780 | 70 | 170 | 74 |
| ART.1-5×500 | 200 | 65 | 500 | 795 | 880 | 70 | 170 | 79 |
| ART.1-5×600 | 200 | 65 | 600 | 895 | 980 | 70 | 170 | 84 |
| ART.1-6×200 | 300 | 80 | 200 | 535 | 630 | 78 | 195 | 95 |
| ART.1-6×300 | 300 | 80 | 300 | 635 | 730 | 78 | 195 | 105 |
| ART.1-6×400 | 300 | 80 | 400 | 735 | 830 | 78 | 195 | 115 |
| ART.1-6×500 | 300 | 80 | 500 | 835 | 930 | 78 | 195 | 125 |
| ART.1-6×600 | 300 | 80 | 600 | 935 | 1030 | 78 | 195 | 135 |
| ART.1-6×700 | 300 | 80 | 700 | 1035 | 1130 | 78 | 195 | 145 |
| ART.1-6×800 | 300 | 80 | 800 | 1135 | 1230 | 78 | 195 | 155 |
Dimensions in mm. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
