Description
The Pull-Back Inner-Brace Power Chuck (XC)（XC 后拉式内撑动力卡盘）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

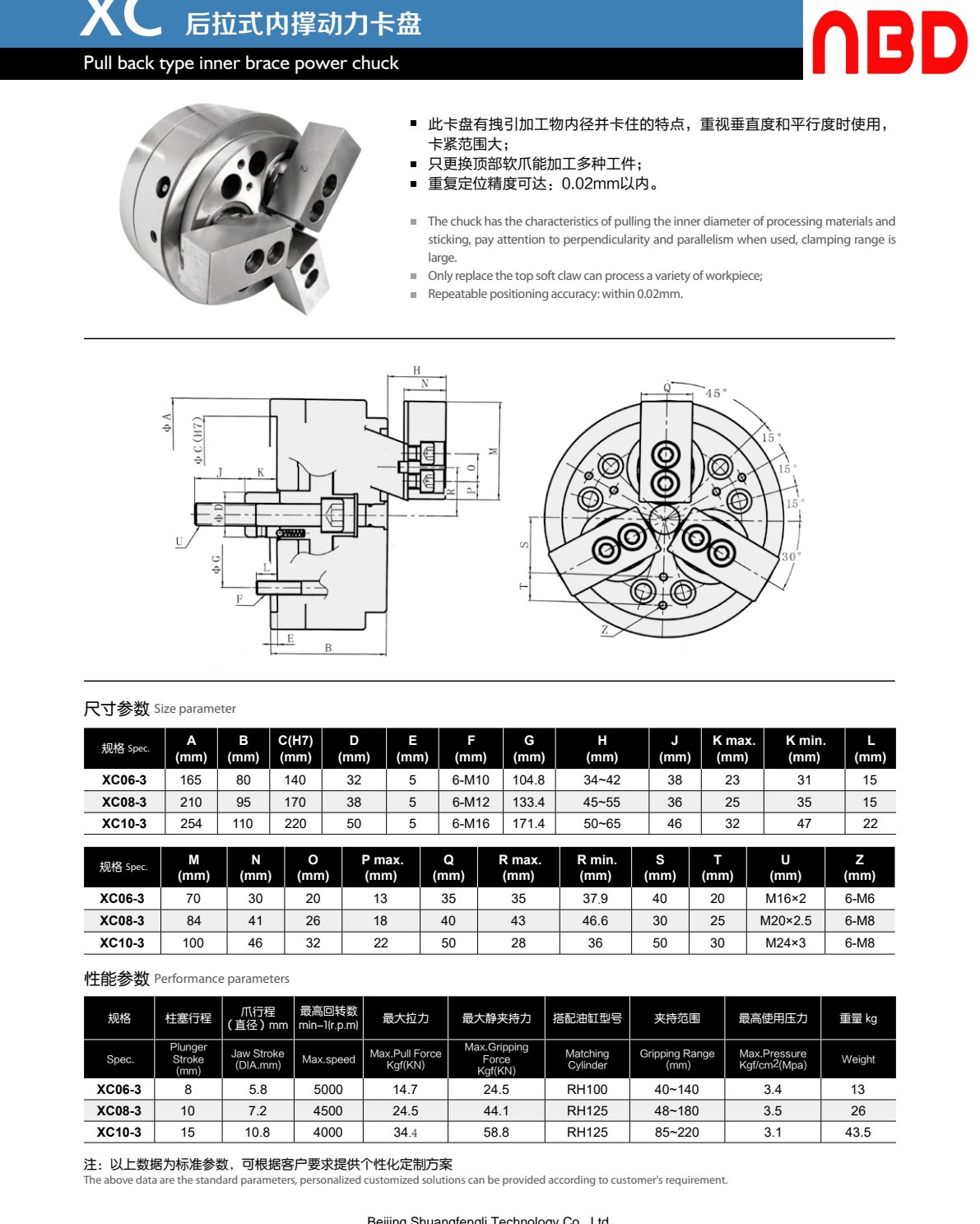

The chuck has the characteristics of pulling the inner diameter of processing materials and sticking, pay attention to perpendicularity and parallelism when used, clamping range is Only replace the top soft claw can process a variety of workpiece; Repeatable positioning accuracy: within 0.02mm. Pull back type inner brace power chuck Beijing Shuangfengli Technology Co., Ltd.
| 规格 柱塞行程 爪行程 |
|---|
| (mm) |
| (DIA.mm) Max.speed Max.Pull Force |
| (mm) |
| XC06-3 8 5.8 5000 14.7 24.5 RH100 40~140 3.4 13 |
| XC08-3 10 7.2 4500 24.5 44.1 RH125 48~180 3.5 26 |
| XC10-3 15 10.8 4000 34.4 58.8 RH125 85~220 3.1 43.5 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
