SK 4.5° — SK 4.5°
SK 4.5°（SK 4.5°）— NBD 铣削刀具刀柄 series. 50 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The SK 4.5°（SK 4.5°）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Specification
| SK | Shrink | fit | chuck | 4.5° | ||||
| SK40-SF06-120 | 6 | 21 | 27 | 120 | 100.9 | 36 | 10 | M5 |
| SK40-SF08-120 | 8 | 21 | 27 | 120 | 100.9 | 36 | 10 | M6 |
| SK40-SF10-120 | 10 | 24 | 32 | 120 | 100.9 | 42 | 10 | M8x1 |
| SK40-SF12-120 | 12 | 24 | 32 | 120 | 100.9 | 47 | 10 | M10x1 |
| SK40-SF14-120 | 14 | 27 | 34 | 120 | 100.9 | 47 | 10 | M10x1 |
| SK40-SF16-120 | 16 | 27 | 34 | 120 | 100.9 | 50 | 10 | M12x1 |
| SK40-SF18-120 | 18 | 33 | 42 | 120 | 100.9 | 50 | 10 | M12x1 |
| SK40-SF20-120 | 20 | 33 | 42 | 120 | 100.9 | 52 | 10 | M16x1 |
| SK40-SF25-120 | 25 | 44 | 50 | 120 | 100.9 | 58 | 10 | M16x1 |
| SK40-SF06-160 | 6 | 21 | 32 | 160 | 140.9 | 36 | 10 | M5 |
| SK40-SF08-160 | 8 | 21 | 32 | 160 | 140.9 | 36 | 10 | M6 |
| SK40-SF10-160 | 10 | 24 | 34 | 160 | 140.9 | 42 | 10 | M8x1 |
| SK40-SF12-160 | 12 | 24 | 34 | 160 | 140.9 | 47 | 10 | M10x1 |
| SK40-SF14-160 | 14 | 27 | 42 | 160 | 140.9 | 47 | 10 | M10x1 |
| SK40-SF16-160 | 16 | 27 | 42 | 160 | 140.9 | 50 | 10 | M12x1 |
| SK40-SF18-160 | 18 | 33 | 50 | 160 | 140.9 | 50 | 10 | M12x1 |
| SK40-SF20-160 | 20 | 33 | 50 | 160 | 140.9 | 52 | 10 | M16x1 |
| SK40-SF25-160 | 25 | 44 | 50 | 160 | 140.9 | 58 | 10 | M16x1 |
| SK40-SF32-160 | 32 | 44 | 50 | 160 | 140.9 | 62 | 10 | M16x1 |
| SK40-SF06-200 | 6 | 21 | 32 | 200 | 180.9 | 36 | 10 | M5 |
| SK40-SF08-200 | 8 | 21 | 32 | 200 | 180.9 | 36 | 10 | M6 |
| SK40-SF10-200 | 10 | 24 | 34 | 200 | 180.9 | 42 | 10 | M8x1 |
| SK40-SF12-200 | 12 | 24 | 34 | 200 | 180.9 | 47 | 10 | M10x1 |
| SK40-SF14-200 | 14 | 27 | 42 | 200 | 180.9 | 47 | 10 | M10x1 |
| SK40-SF16-200 | 16 | 27 | 42 | 200 | 180.9 | 50 | 10 | M12x1 |
| SK40-SF18-200 | 18 | 33 | 50 | 200 | 180.9 | 50 | 10 | M12x1 |
| SK40-SF20-200 | 20 | 33 | 50 | 200 | 180.9 | 52 | 10 | M16x1 |
| SK40-SF25-200 | 25 | 44 | 50 | 200 | 180.9 | 58 | 10 | M16x1 |
| SK40-SF32-200 | 32 | 44 | 50 | 200 | 180.9 | 62 | 10 | M16x1 |
| SK50-SF06-80 | 6 | 21 | 27 | 80 | 60.9 | 36 | 10 | M5 |
| SK50-SF08-80 | 8 | 21 | 27 | 80 | 60.9 | 36 | 10 | M6 |
| SK50-SF10-80 | 10 | 24 | 32 | 80 | 60.9 | 42 | 10 | M8x1 |
| SK50-SF12-80 | 12 | 24 | 32 | 80 | 60.9 | 47 | 10 | M10x1 |
| SK50-SF14-80 | 14 | 27 | 34 | 80 | 60.9 | 47 | 10 | M10x1 |
| SK50-SF16-80 | 16 | 27 | 34 | 80 | 60.9 | 50 | 10 | M12x1 |
| SK50-SF18-80 | 18 | 33 | 42 | 80 | 60.9 | 50 | 10 | M12x1 |
| SK50-SF20-80 | 20 | 33 | 42 | 80 | 60.9 | 52 | 10 | M16x1 |
| SK50-SF25-100 | 25 | 44 | 53 | 100 | 80.9 | 58 | 10 | M16x1 |
| SK50-SF32-100 | 32 | 44 | 53 | 100 | 80.9 | 62 | 10 | M16x1 |
| SK50-SF06-120 | 6 | 21 | 27 | 120 | 100.9 | 36 | 10 | M5 |
| SK50-SF08-120 | 8 | 21 | 27 | 120 | 100.9 | 36 | 10 | M6 |
| SK50-SF10-120 | 10 | 24 | 32 | 120 | 100.9 | 42 | 10 | M8x1 |
| SK50-SF12-120 | 12 | 24 | 32 | 120 | 100.9 | 47 | 10 | M10x1 |
| SK50-SF14-120 | 14 | 27 | 34 | 120 | 100.9 | 47 | 10 | M10x1 |
| SK50-SF16-120 | 16 | 27 | 34 | 120 | 100.9 | 50 | 10 | M12x1 |
| SK50-SF18-120 | 18 | 33 | 42 | 120 | 100.9 | 50 | 10 | M12x1 |
| SK50-SF20-120 | 20 | 33 | 42 | 120 | 100.9 | 52 | 10 | M16x1 |
| SK50-SF25-120 | 25 | 44 | 53 | 120 | 100.9 | 58 | 10 | M16x1 |
| SK50-SF32-120 | 32 | 44 | 53 | 120 | 100.9 | 62 | 10 | M16x1 |

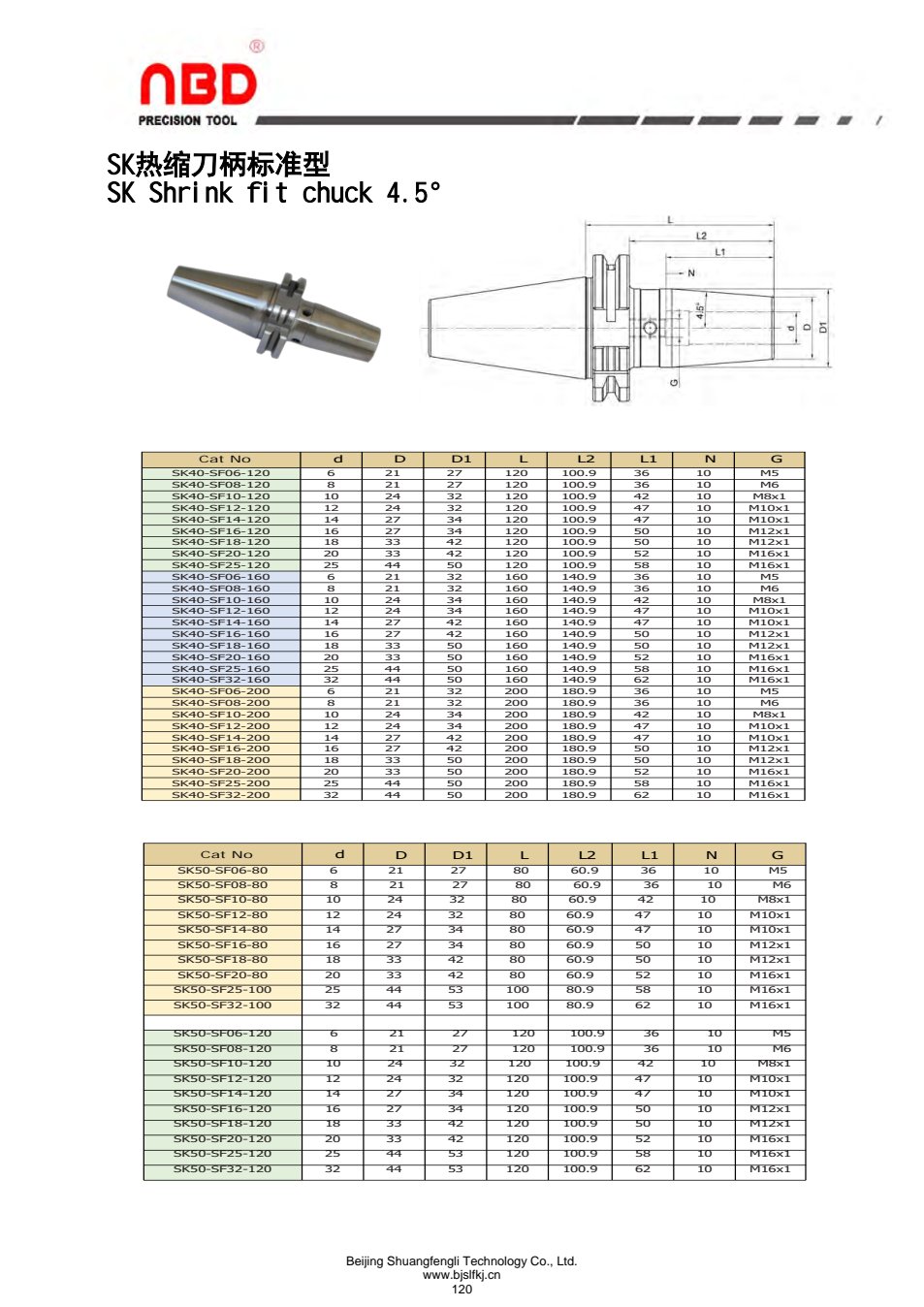

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | SK40 |
|---|
